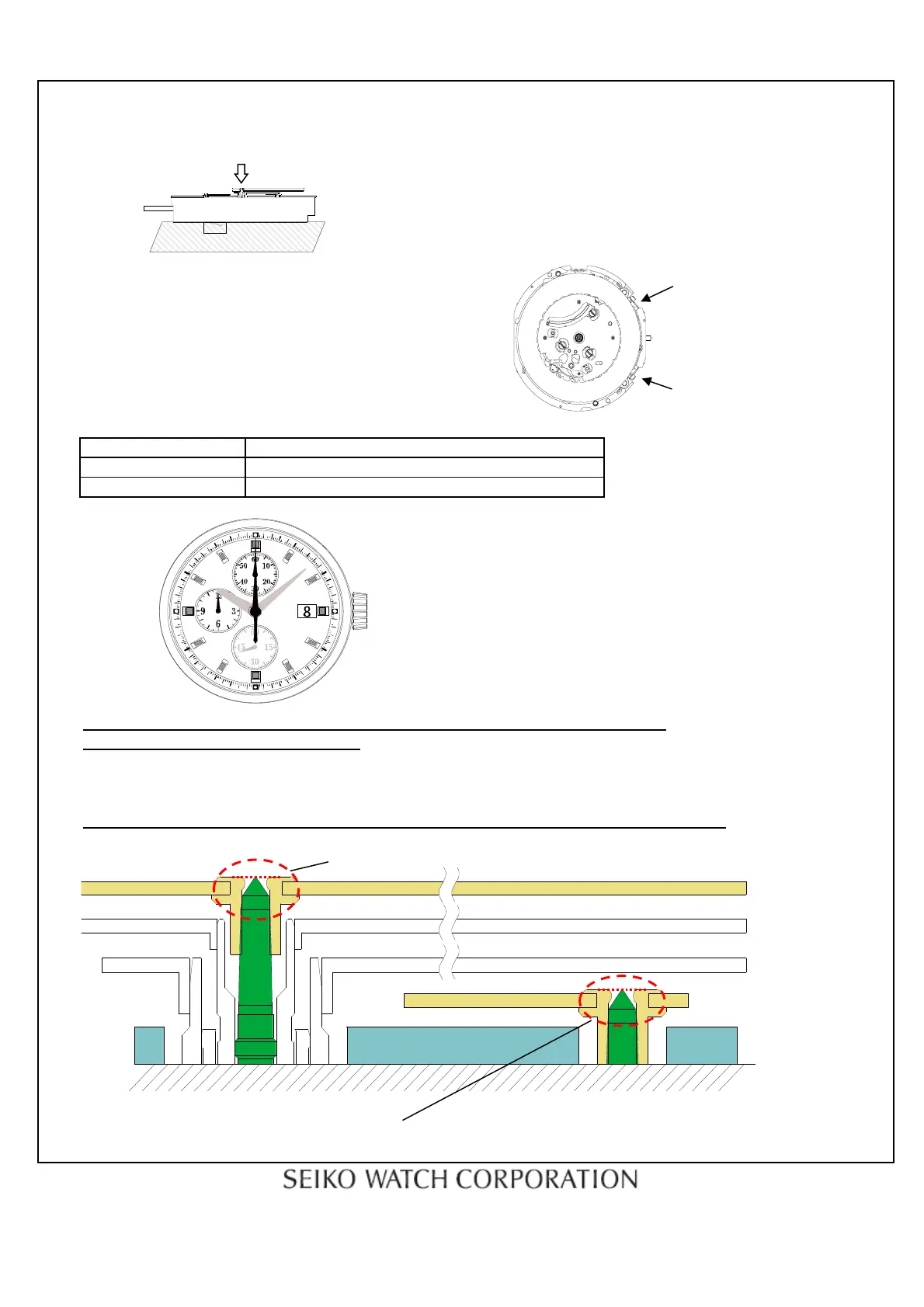

● How to install Chronograph hands
Place the movement on the movement holder.
Be careful not to apply a strong pressure to the movement
(1) Push button A ( Chronograph start )
(2) Push button A ( Chronograph stop )
(3) Push button B ( Chronograph reset )
(4) After (1)-(3), Install the chronograph hands at the positions
as shown below;
Second chronograph "12" o'clock of the center dial
Minute chronograph
"60" minute of the sub dial at 12h position
Hour chronograph "12" hour of the sub dial at 9h position
*Once the chronograph hands are detached, the reuse of them is not available.
Please replace them with new hands.
● How to check the hands setting
*The hand's top surface should be set perpendicular with the axis tip , as shown below.
*1 Second chronograph hand
*2 Minute / Hour chronograph hands and Small second hand and 24 hour hand
13/20
