Seiko 8T67A - Parts Catalogue

PARTS CATALOGUE
8T67A
Type of oil Oil quantity mark
AO-3(Moebius A）
NORMAL QUANTITY
AO-2(Moebius F) SUFFICIENT QUANTITY
S-6
0012 354
Date indicator maintaining plate screw
0808 052
Date indicator maintaining plate
Date indicator
0810 019
Date jumper
0806 002
Date corrector wheel
Intermediate date wheel and pinion
Date Indicator driving wheel
2/20

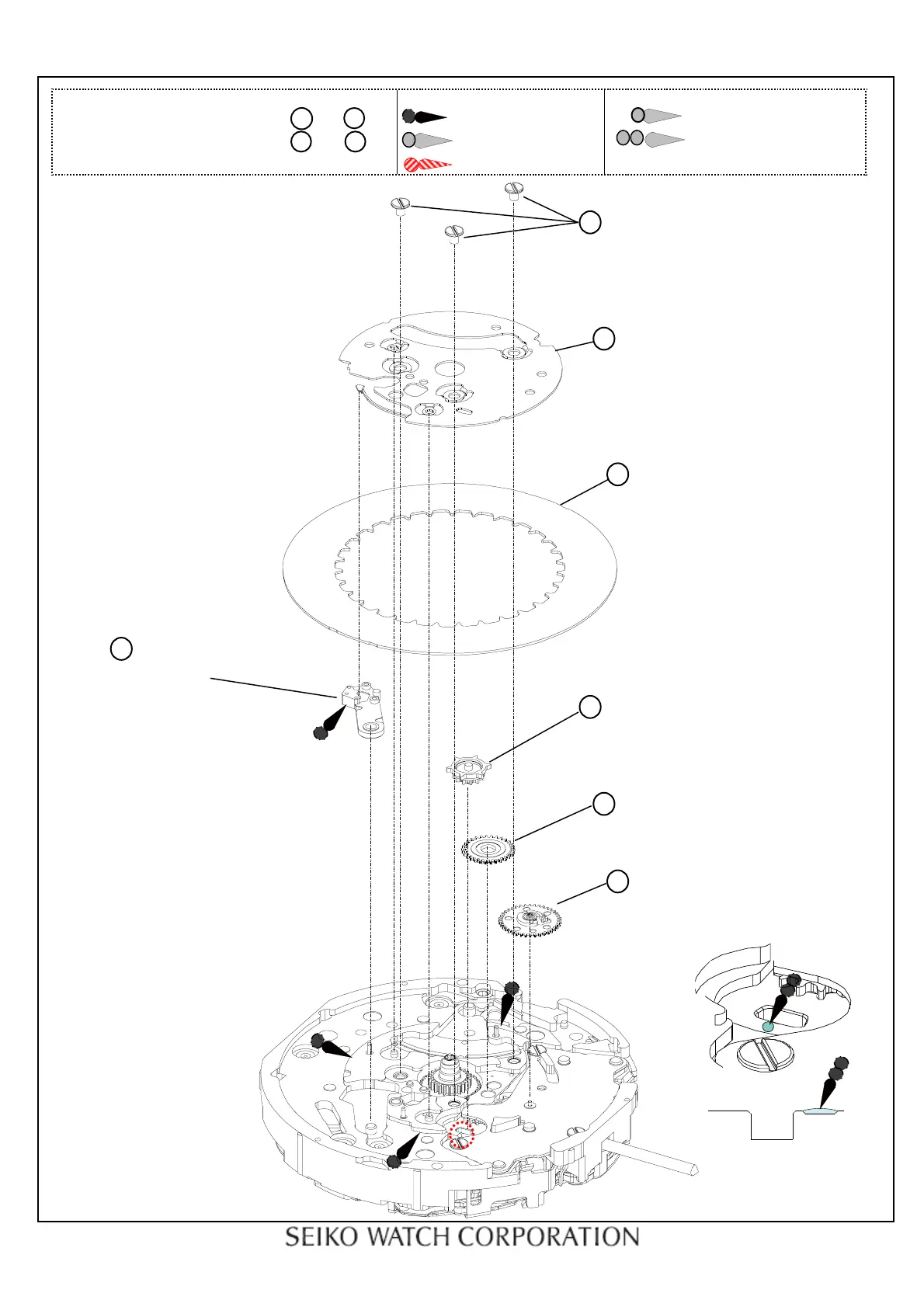

[ Cross section ]
5
6
0817 048
7
0802 039
1
2
3
Refer to page 7 for each parts code.
4
Disassembling procedures Figs.
1
→
62
Reassembling procedures Figs.
62
→
1
*1
*1
0103 448
Main plate
