TECHNICAL GUIDE
8T67A

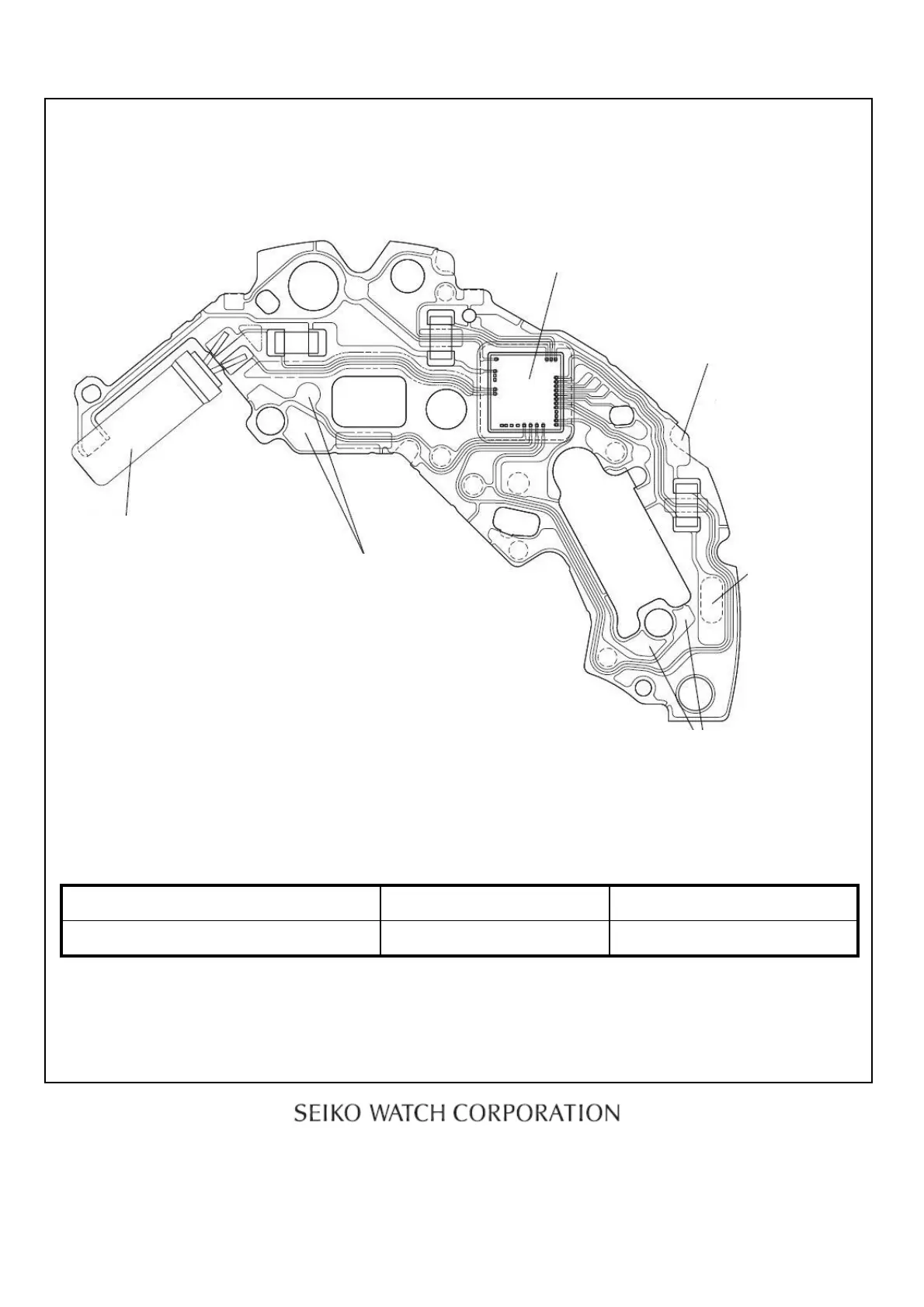

〔STRUCTURE OF THE CIRCUIT BLOCK〕
● Value checking -coil reistance (coil block)
Check the resistance of each coil block if they are within the range in the following table.
COIL BLOCK (A) 4002054 1.45 - 1.65KΩ
COIL BLOCK (B) 4002055 1.65 - 1.85KΩ
15/20
Output terminal
(Hand moving)
Crystal unit
C-MOC-IC
Input terminal
Output terminal
(CG)
Input terminal (-)
