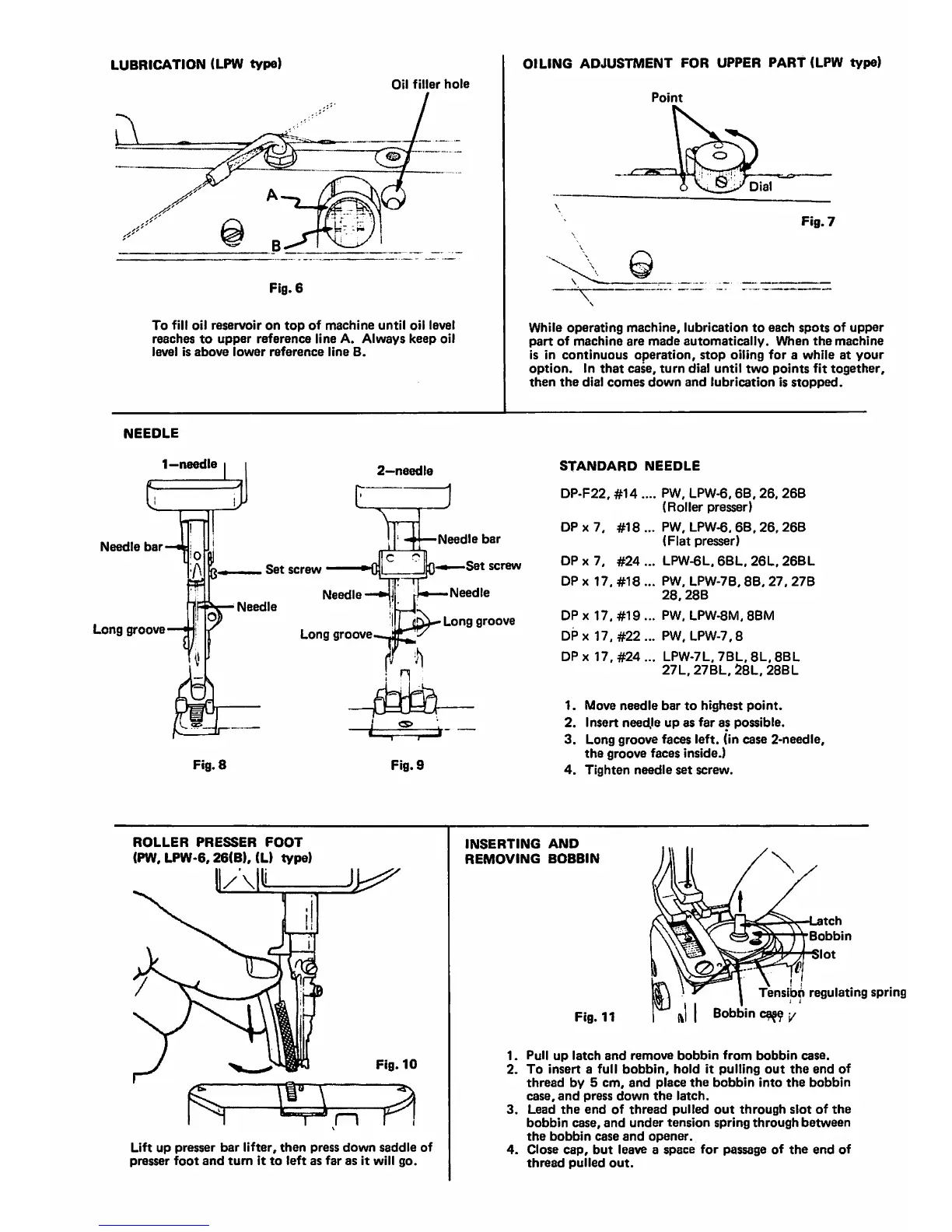

Seiko PW-6 User Manual

LUBRICATION (LPW type)
Oil filler hole
OILING ADJUSTMENT FOR UPPER PART (LPW type)
Point
Fig. 6
To fill oil reservoir on top of machine until oil level
reaches to upper reference line A. Always keep oil
level is above lower reference line 8.
NEEDLE
1—needle
2—needle
L J
_ J
J L
[' )
Fig. 7
"V
While operating machine, lubrication to each spots of upper
part of machine are made automatically. When the machine
is in continuous operation, stop oiling for a while at your
option. In that case, turn dial until two points fit together,
then the dial comes down and lubrication is stopped.
STANDARD NEEDLE
.. PW, LPW-6.6B,26, 26B
(Roller presser)
Needle bar
Needle bar
DP-F22,#14.
DP X
7. #18
DPx 7. #24
DPx
17, #18
DPx
17. #19
DPx
17, #22
DPx
17. #24
.. PW, LPW-6, 68, 26,268
(Flat presser)
.. LPW-6L.6BL,26L,26BL
.. PW. LPW-7B. 88. 27. 278
28.288
.. PW. LPW-8M, 88M
.. PW, LPW-7,8
Set screw
Needle
F Needle
Long groove
Long groove
Fig. 8
ROLLER PRESSER FOOT
(PW, LPW-6,26(B), (L) type)
k:^
Q m Set screw
Needle
Long groove
LPW-7L.78L.8L,88L
27L,278L,28L. 288L
Fig. 9
1. Move needle bar to highest point.
2. Insert needile up as far as possible.
3. Long groove faces left, (in case 2-needle,
the groove faces inside.)
4. Tighten needle set screw.
Fig. 10
INSERTING AND
REMOVING BOBBIN
Fig. 11
3.
Tensibh regulating spring
Bobbin c^^ y
Latch
Bobbin
Slot
Lift up presser bar lifter, then press down saddle of
presser foot and tum it to left as far as it will go.
Pull up latch and remove bobbin from bobbin case.
To insert a full bobbin, hold it pulling out the end of
thread by 5 cm, and place the bobbin into the bobbin
case, and press down the latch.
Lead the end of thread pulled out through slot of the
bobbin case, and under tension spring through between
the bobbin case and opener.
Close cap, but leave a space for passage of the end of
thread pulled out.
