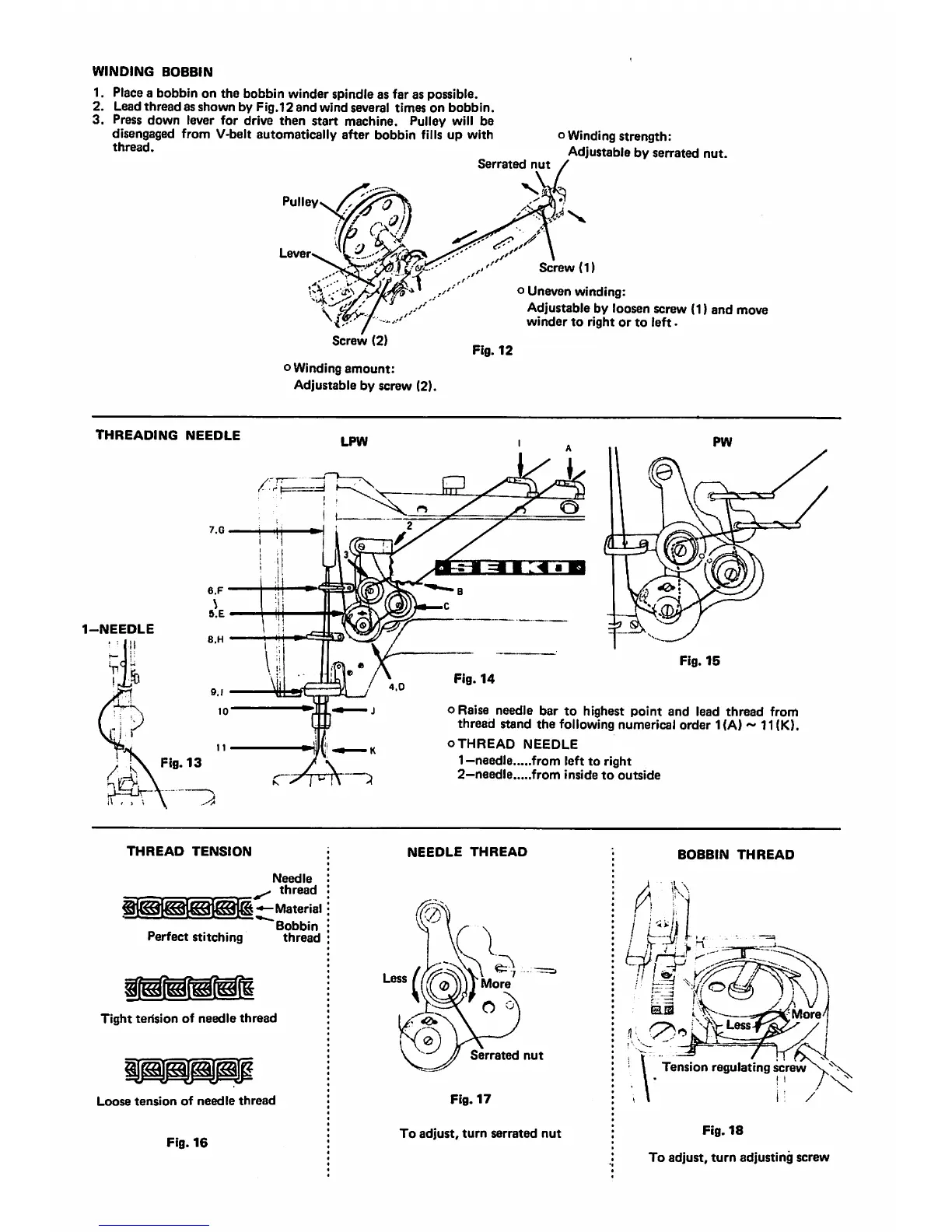

WINDING BOBBIN
1. Place a bobbin on the bobbin winder spindle as far as possible.
2. Lead thread as shown by Fig.12 and wind several times on bobbin.
3. Press down lever for drive then start machine. Pulley will be
disengaged from V-belt automatically after bobbin fills up with
thread.
o Winding strength:
Adjustable by serrated nut.
Serrated nut
THREADING NEEDLE
1-NEEDLE
II
Pulley
Lever
'>1 '..•cTN
Screw (2)
o Winding amount:
Adjustable by screw (2).
LPW
Screw (1)
o Uneven winding:
Adjustable by loosen screw (1) and move
winder to right or to left •
Fig. 12
PW
Fig. 15
Fig. 13
o Raise needle bar to highest point and lead thread from
thread stand the following numerical order 1(A) ~ 11(K).
oTHREAD NEEDLE
1—needle from left to right
2—needle from inside to outside
THREAD TENSION
Needle
^ thread
ataiatatate' ^Material
Bobbin
Perfect stitching thread
Tight terision of needle thread
Loose tension of needle thread
Fig. 16
NEEDLE THREAD
Less
Serrated nut
Fig. 17
To adjust, turn serrated nut
BOBBIN THREAD
' \ Tension regulating screw
h V ,
it'More'^
Fig. 18
To adjust, turn adjusting screw
