Seiko PW-6 User Manual

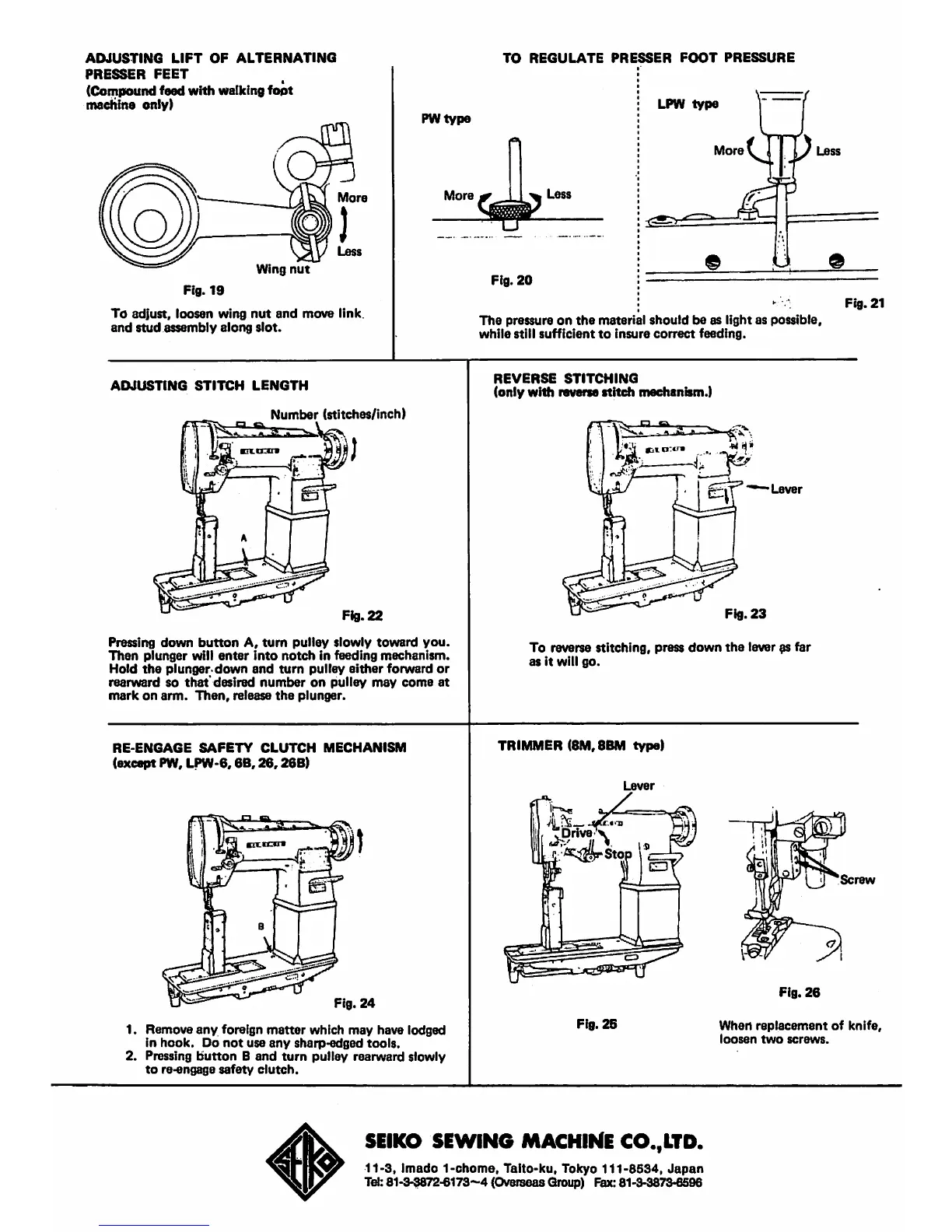

TO REGULATE PRESSER FOOT PRESSURE
ADJUSTING LIFT OF ALTERNATING
PRESSER FEET
(Comiwund feed with walking foot
machina only)
PW type
LPW type
More
Less
Wing nut
Fig. 19
To adjust, loosen wing nut and move link,
and stud assembly along slot.
ADJUSTING STITCH LENGTH
Number (stitches/inch)
Fig. 22
Pressing down button A, turn pulley slowly toward you.
Then plunger will enter into notch in feeding mechanism.
Hold the plunger-down and turn pulley either forward or
rearward so that'desired number on pulley may come at
mark on arm. Then, release the plunger.
RE-ENGAGE SAFETY CLUTCH MECHANISM
(except PW. LPW-6,6B, 26,26B)
m
Fig. 24
1. Remove any foreign matter which may have lodged
in hook. Do not use any sharp-edged tools.
2. Pressing button B and turn pulley rearward slowly
to re-engage safety clutch.
Fig. 20
More ^ i 1
^ Less
A
© I
i @
The pressure on the material should be as light as possible,
while still sufficient to insure correct feeding.
REVERSE STITCHING
(only wHh reverse stitch mechanism.)
iff
Lever
evT—
Fig. 23
To reverse stitching, press down the lever ps far
as it will go.
TRIMMER (8M,BBM type)
Lever
Fig. 26
Fig. 21
Screw
Fig. 26
When replacement of knife,
loosen two screws.
SEIKO SEWING MACHINE CO.,LTD.
11-3, imado 1-chome, Taito-ku, Tokyo 111-6534, Japan
Tel:81-3-3872-6173--4{Ovsiseas Group) Fax: 81-3-3873-6596
From the library of: Superior Sewing Machine & Supply LLC
