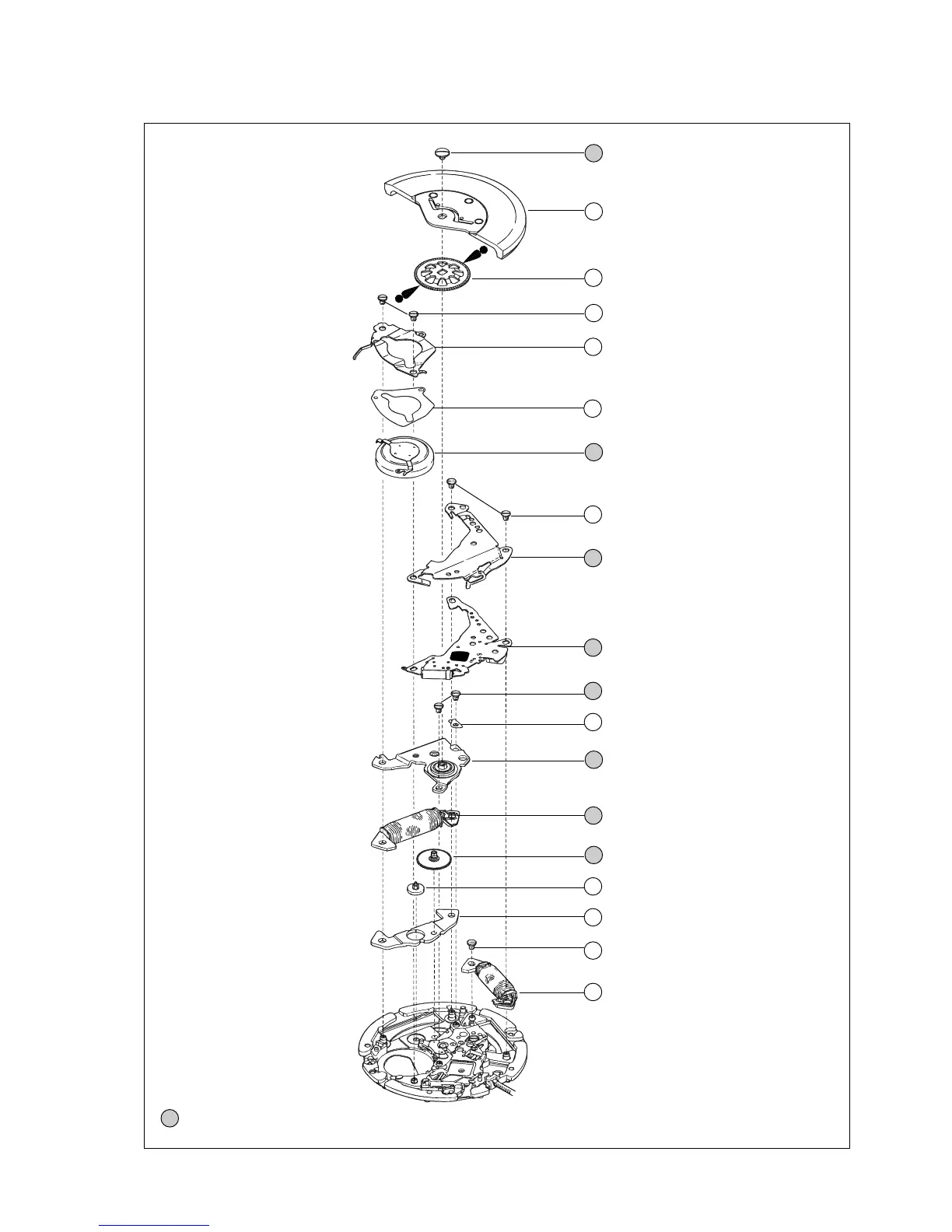

PARTS CATALOGUE
Cal. YT57B
➡
Please see the remarks on the following pages.
Lubricating of some parts is shown in “II. REMARKS ON DISASSEMBLING AND REASSEMBLING”.
12 0022 490
Oscillating weight screw
13 0500 661
Oscillating weight
16 4225 519
Rechargeable battery clamp
15 0022 247
Rechargeable battery clamp screw
17 4216 519
Insulator for rechargeable battery
18 3023 24T
Rechargeable battery unit
19 0022 247
Circuit block cover screw
20 4457 760
Circuit block cover
21 4000 734
Circuit block
14 1002 662
Oscillating weight wheel
22 0022 247
Oscillating weight bridge screw
23 4459 500
Conductive plate
24 0198 662
Oscillating weight bridge
25 4002 514
Generating coil block
26 1002 660
Intermediate wheel for generating rotor
27 4146 518
Generating rotor
28 4239 519
Generating stator
30 4002 516
Coil block
29 0022 247
Coil block screw
To Next Page
