7-4

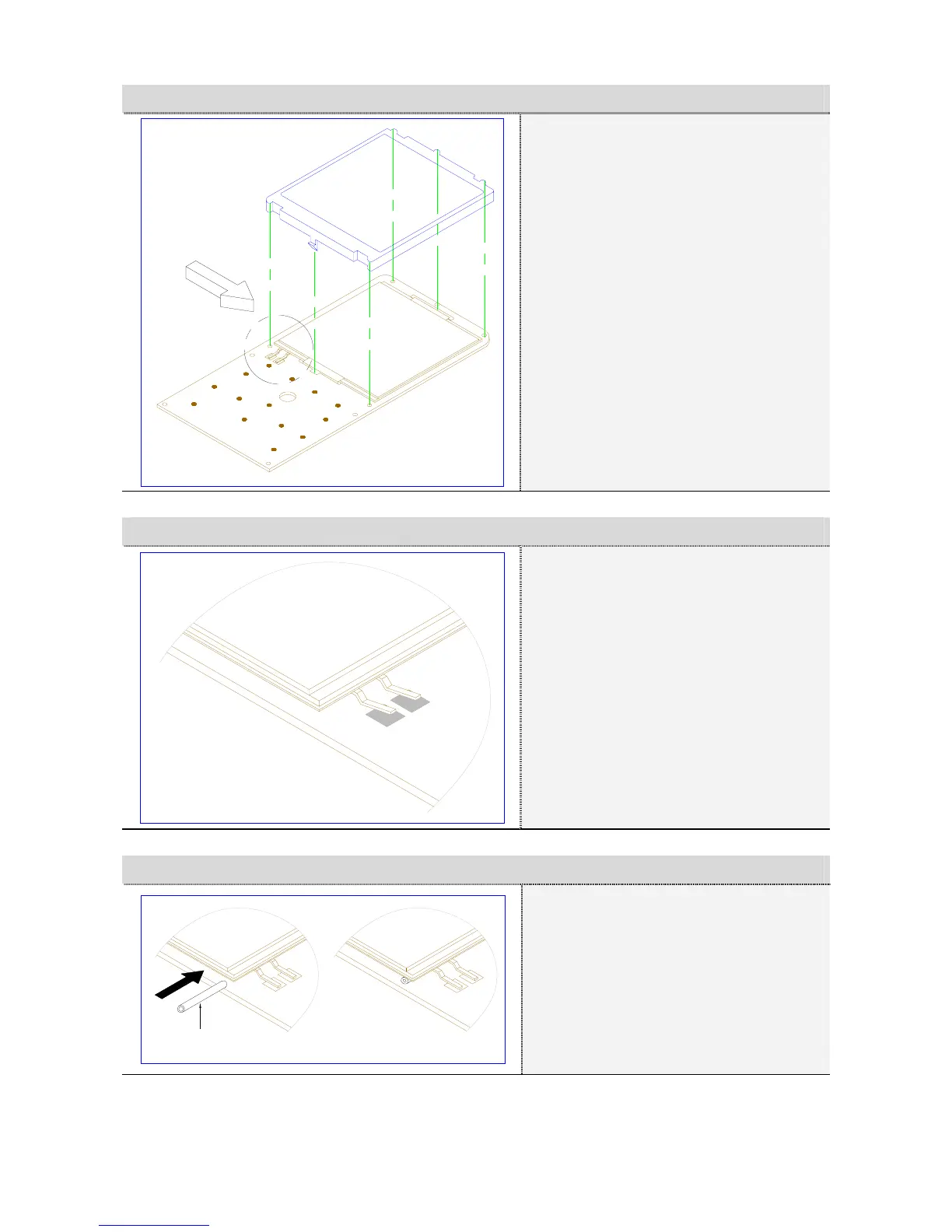

7.5.3. Remove LCD cover
"A"
"A"
Remove LCD Cover:
The LCD Cover can now
be lifted away from the
SUB PCB Assembly.
7.5.4. Detail for EL terminal
VIEW "A"
EL terminal:
After desoldering EL
terminal
7.5.5. Insert electric wire between PCB and EL
Electric Wire After insertion
Insert electric wire:
Insert electric wire (About
Ø1.6 x 12mm) between
PCB and EL.
