TEC Series v 3.2X
Page 12

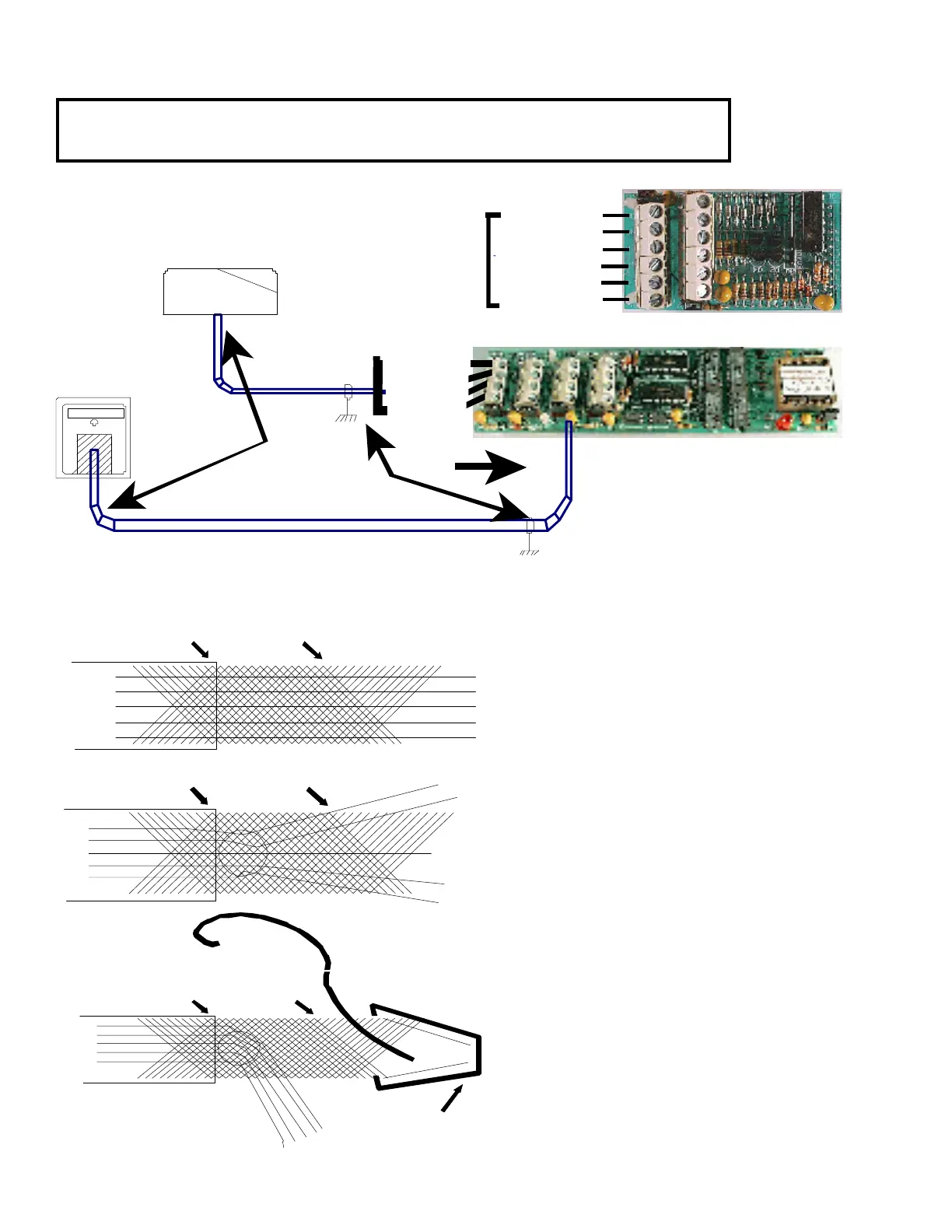

GROUNDING CARD READER WIRING
NOTE: DO NOT WIRE ANY PORTION OF THE CARD READER "HOT." REMOVE
ALL POWER BEFORE WIRING ANYTHING TO THE CARD READER.
WIEGAND CARD
READER
BLA CK COM
GREEN D0
WHITE D1
RED +5 VDC
OR +12 VDC
BELDEN 9941 100 FEET MAX DISTANCE
BELDEN 83656 500 FEET MAX DISTANCE
TAPE SHIELD
THIS END
BARIUM
FERRITE
READER
BELDEN 9941
500 FEET MAX DISTANCE
CONNECT SHIELD
TO GROUND LUG
READER 1 2 3 4
IJACKET INSULATION
RED
BLK
GRN
WHT
BRN
SHIELD BRAID
Strip away 3 inches from the outer jacket, as
shown at left.
JACKET INSULATION
RED
BLK
GRN
WHT
BRN
SHIELD BRAID
Attach an insulated #18 gauge stranded
wire to the shield with a wire nut. Allow
enough length for the insulated #18 wire to
reach the ground lug in the back of the TEC
back box.
Tape the shield from the cable to the wire
nut to prevent shorting to any components
on the TEC PC board.
Poke a hole in the braid as shown at left.
Spread the braid open, so the conductors
are visible. Peel the conductors out, taking
care not to damage the insulation on the
conductors.
JA C K ET IN S U L AT IO N
R E D
B LK
G R N
W H T
B RN
S HIE L D B RAI D
W I RE N U T
BLACK COM
GREEN D0
WHITE D1
RED +5 VDC
OR +12 VDC
UNUSED
BROWN LED
READER 2 1
ACCESSORY INSTALLATION
(OPTIONAL)
