TEC Series v 3.2X
Page 14

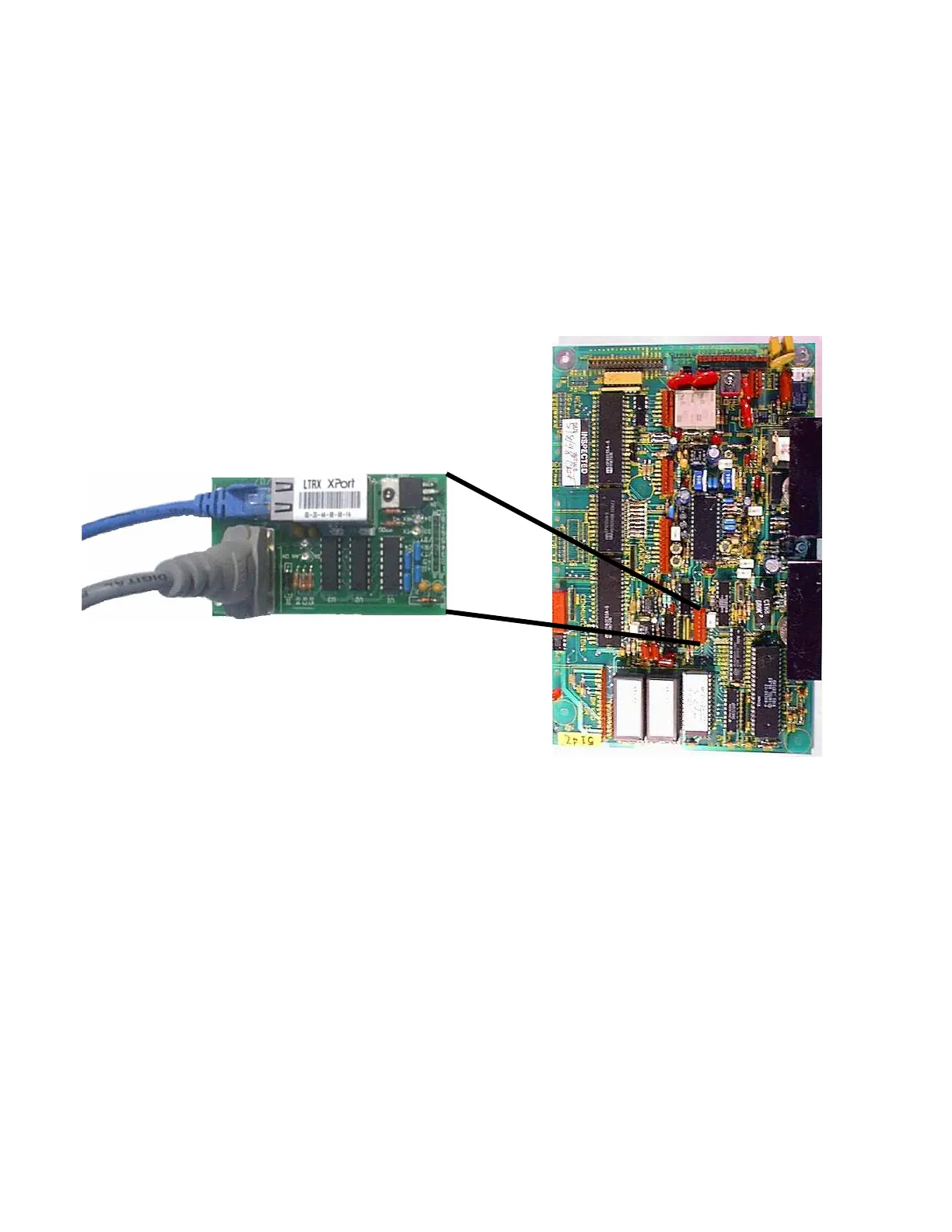

NIC2 CARD
The NIC (Network Interface Card) provides a
plug-in TCP/IP interface for all CAT and TEC
products.
• TCP/IP network compatible ONLY.
• Compatible with all CAT products.
• Compatible with TEC products
running Selcom 7 or newer *
•
Compatible with TEC1.
• Requires the end user to have a
qualified network manager for setup.
The SES Network Interface is used to provide a Programming and Data connection to a SES CAT or
TEC Telephone Access Controller through a local area network. The SES Network Interface
provides for conversion of the standard serial interface in the SES CAT or TEC controller to a
TCP/IP connection. All portions of the connection must operate at the same speed and connectivity
settings. We are pre-setting the selections to 9600 baud, 8 bits, no parity, 1 stop bit.
Each interface is provided with a unique hardware address. The network system administrator
provides an IP address that is assigned to the unique hardware address. Each SES Network
Interface is then assigned a unique port address on the network. A standard range of port addresses
is provided, that are normally not used in most networks, but the actual address(es) used should be
cleared by and approved by the network system administrator.
The Com Port Re-Director provides a means of using the IP address as a directed serial com port.
An unused port number is chosen in the computer and assigned to the IP address of the SES CAT
or TEC unit. The actual address(es) used should be cleared by and approved by the network system
administrator. The redirected comm port is then selected in older versions of Selcom Software
(Selcom Secured 6 or older) for that SES CAT or TEC unit. Selcom Secured 7 and newer can
directly address TCP/IP addresses and a comm port redirector is not required.
See the NIC2 Card Instruction
for further Info.
(OPTIONAL)
