COMMUNICATIONS SETUP
The Communications Setup menu comes
with factory defaults that should be sufficient for
most installations. These default values are shown
on Pg. 51 and 52. Some functions are used with
options that may not be present on your TEC. For
example, selection 2 RS-232 Baud is not valid
unless you purchase the optional serial printer
interface (OPTKPRT). Press "4" from the main
menu.
TERMINAL TYPE
The TEC is designed to respond to terminals that follow VT-100B terminal control codes. It
also can respond to "dumb terminal" codes. To disable the Terminal Type from the factory default of 1,
press "1" from the Communications Setup menu to get this sub-menu. Press "0" to disable VT-100B
emulation, and press "Enter" key. This will return you to the Communications Setup menu.
The TEC leaves the factory with a default password of 777777. The Password may be alphanumeric
(1 - 6 characters) if programmed from the terminal. From the front keypad, only numbers (1 - 6 digits)
are supported. This provides an additional level of security if you connect a terminal to a TEC. It is
possible to create passwords that can not be accessed from the front keypad. To change the
Program Password from the factory default of 777777, press "3" from the Communications Setup
menu to get this sub-menu. Key in the desired 6 digits for the new password, and press "Enter" key.
You will be returned to the Communications Setup menu.
PROGRAM PASSWORD
This function determines which door control relay is activated when a PIN code (or a Rotary "6" from a
called unit) is received by the TEC. To change the number from the default setting of 1 to another
number, select "4" from the main menu. Select "4" from this sub-menu. Select the new number (from
1 — 4) and press the "Enter" key. You will be returned to the COMM. SETUP menu.
PIN ON ENTRANCE
NOTE: 1
st
2 DIGITS OF PROGRAM PASSWORD ARE THE CONTROL PASSWORD, FOR
REMOTE CONTROL OF TEC UNIT (SUCH AS ENTRANCE LATCH). 1
st
3 DIGITS OF PROGRAM
PASSWORD ARE THE MANAGERS PASSWORD THAT ALLOWS ONLY CODE, NAME, PHONE,
PIN, CARD, AND GROUP CHANGES.
RS-232 BAUD
The RS-232 Baud refers to the rate of speed for serial communications, such as a printer or
terminal would need. This function requires the optional printer interface (OPTKPRT). The different
rates are: 0 = 300 BAUD
1 = 600 BAUD
2 = 1200 BAUD
Protocol for serial devices is fixed 3 = 2400 BAUD
at 8 bits, No parity, 1 stop bit. 4 = 4800 BAUD
(8,N,1) 5 = 9600 BAUD
6 = 19200 BAUD
To change the RS-232 Baud from the factory default of 5, press "2" from the Communications
Setup menu to get this sub-menu. Next, select the number corresponding to the desired baud, and
press "Enter" key. This will return you to the Communications Setup menu.

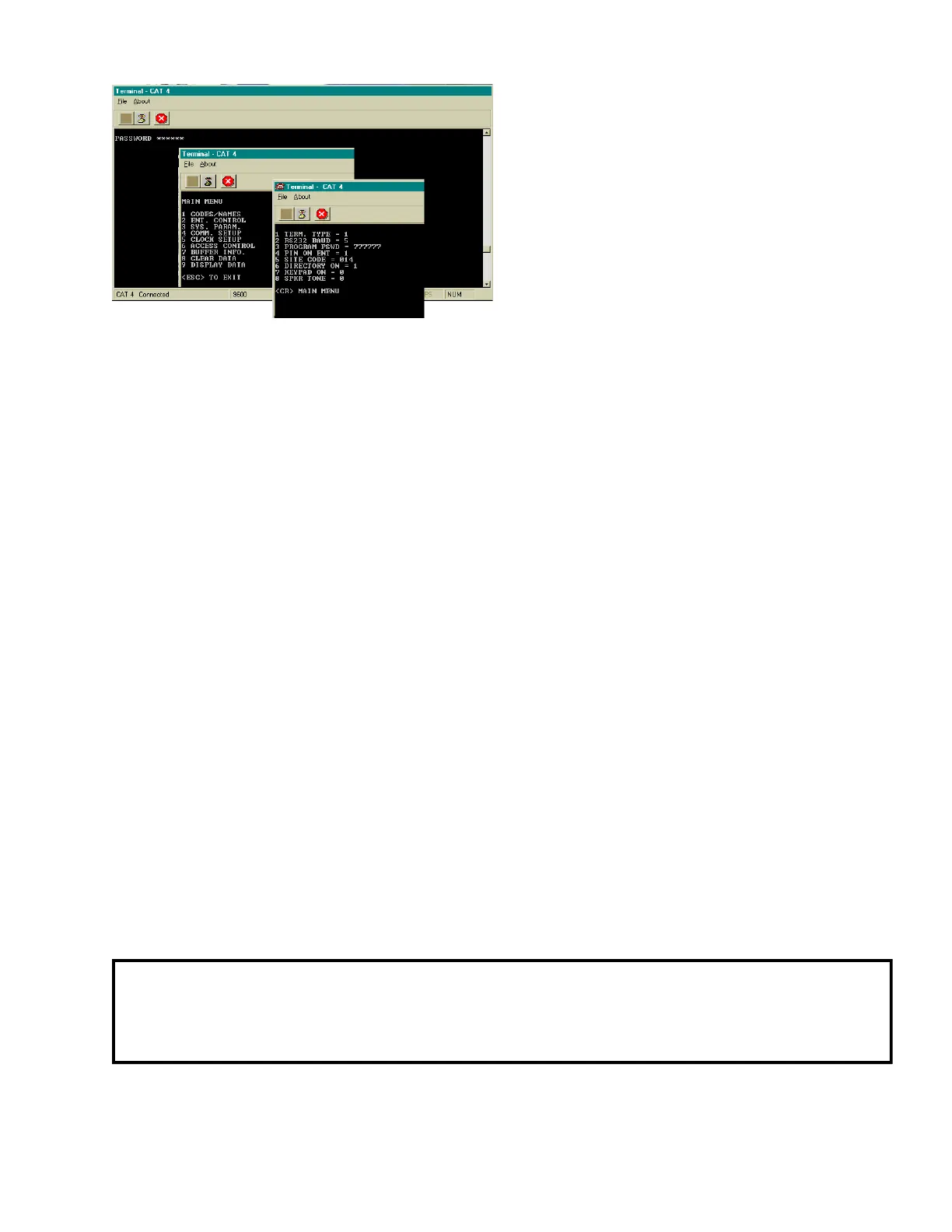

(CAT Shown. TEC is similar.)
