Selecta AC-L4 User Manual

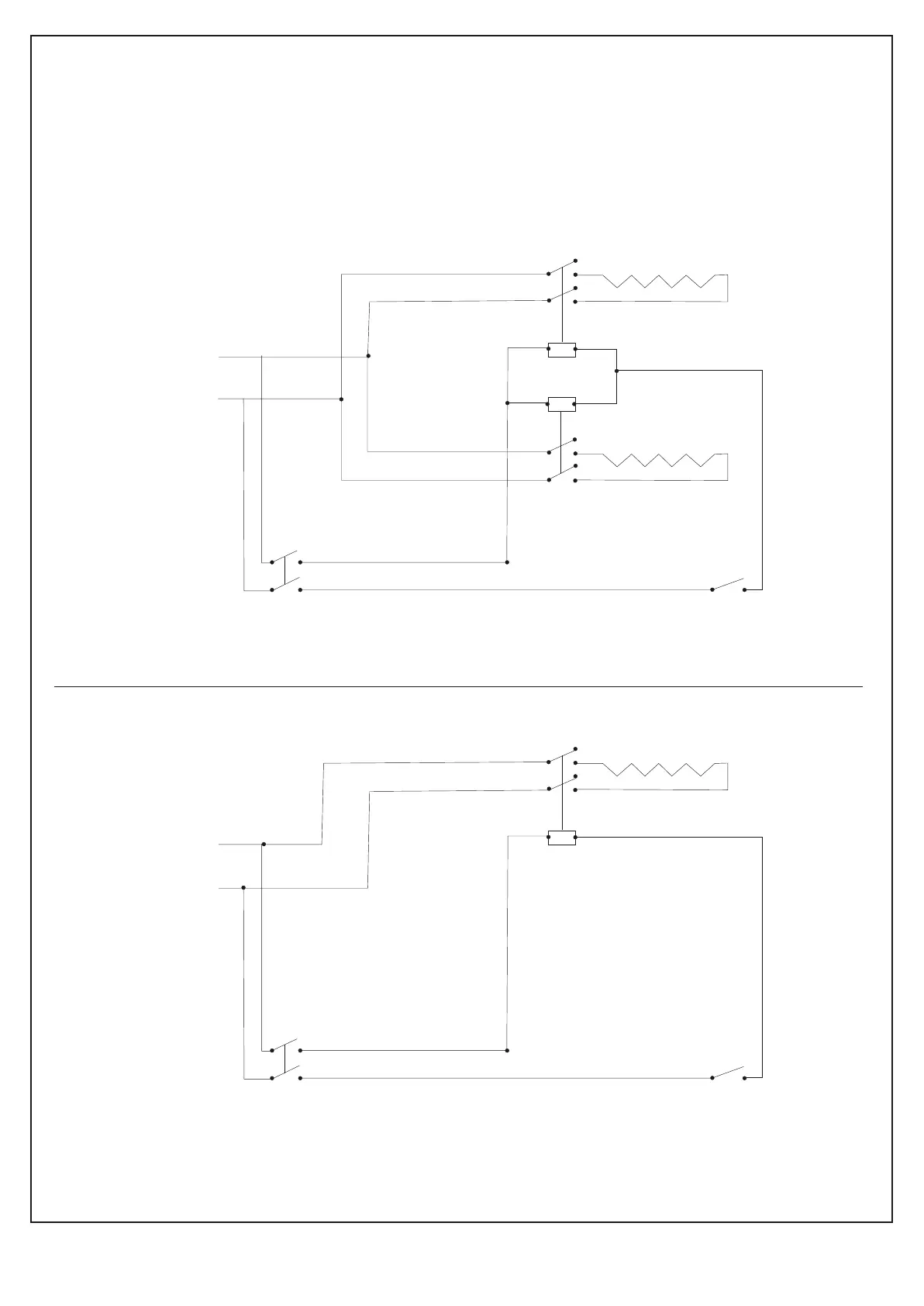

1.10. Diagrama del circuito / Circuit diagram
- 9 -
090113
F
N
1 -> Interruptor / Switch
2 -> Control nivel deposito / Level controller
C1 -> Contactor
C2 -> Contactor
R1 -> Resistencia / Heater
R2 -> Resistencia / Heater
R1
R2
C1
C2
1 2
AC L8
F
N
1 -> Interruptor / Switch
2 -> Control nivel deposito / Level controller
C1 -> Contactor
R1 -> Resistencia / Heater
R1
C1
1 2
AC L4
