Selectron CPU 72 Series User Manual

CPU 72x
24.05.2019 page 13

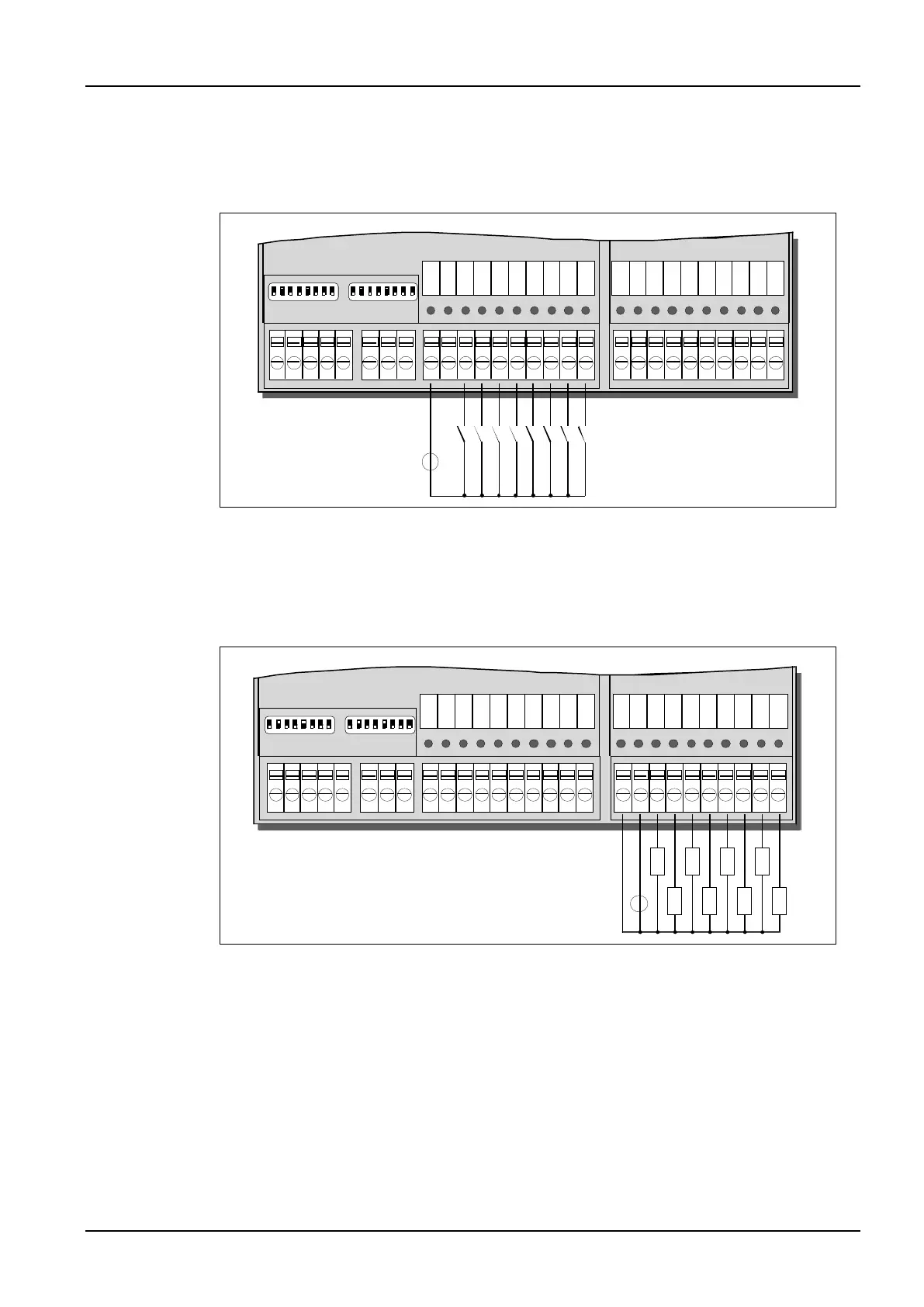

1.4.4.3 Connection of the CPU 725-LT/LTH and CPU 727-T/TH Digital Inputs
CPUs CPU 725-LT/LTH and CPU 727-T/TH have 8 digital inputs 24/36 Vdc.
These are galvanically isolated from the logic system and have a common 0 V connection.
Fig.13: Connection digital inputs CPU 725-LT/LTH and CPU 727-T/TH
1.4.4.4 Connection of the CPU 725-LT/LTH and CPU 727-T/TH Digital Outputs
CPUs CPU 725-LT/LTH and CPU 727-T/TH have 8 digital outputs 24/36 Vdc / 0.5 A.
These are galvanically isolated from the logic system and have a common 0 V connection.
Fig.14: Connection digital outputs CPU 725-LT/LTH and CPU 727-T/TH
0V US0V 00 01 02 03 04 05 06 07 00 01 02 03 04 05 06 07
Input Output
U
S
+
U
S
+
0V US0V 00 01 02 03 04 05 06 07 00 01 02 03 04 05 06 07
Input Output
