Selectron CPU 725-LT User Manual

CPU 72x
24.05.2019 page 12
1.4.4 Inputs and Outputs
1.4.4.1 Connection of the CPU 723-T Digital Input
The CPU 723-T has six 24 Vdc digital inputs. The 00 and 01 inputs are interrupt inputs.

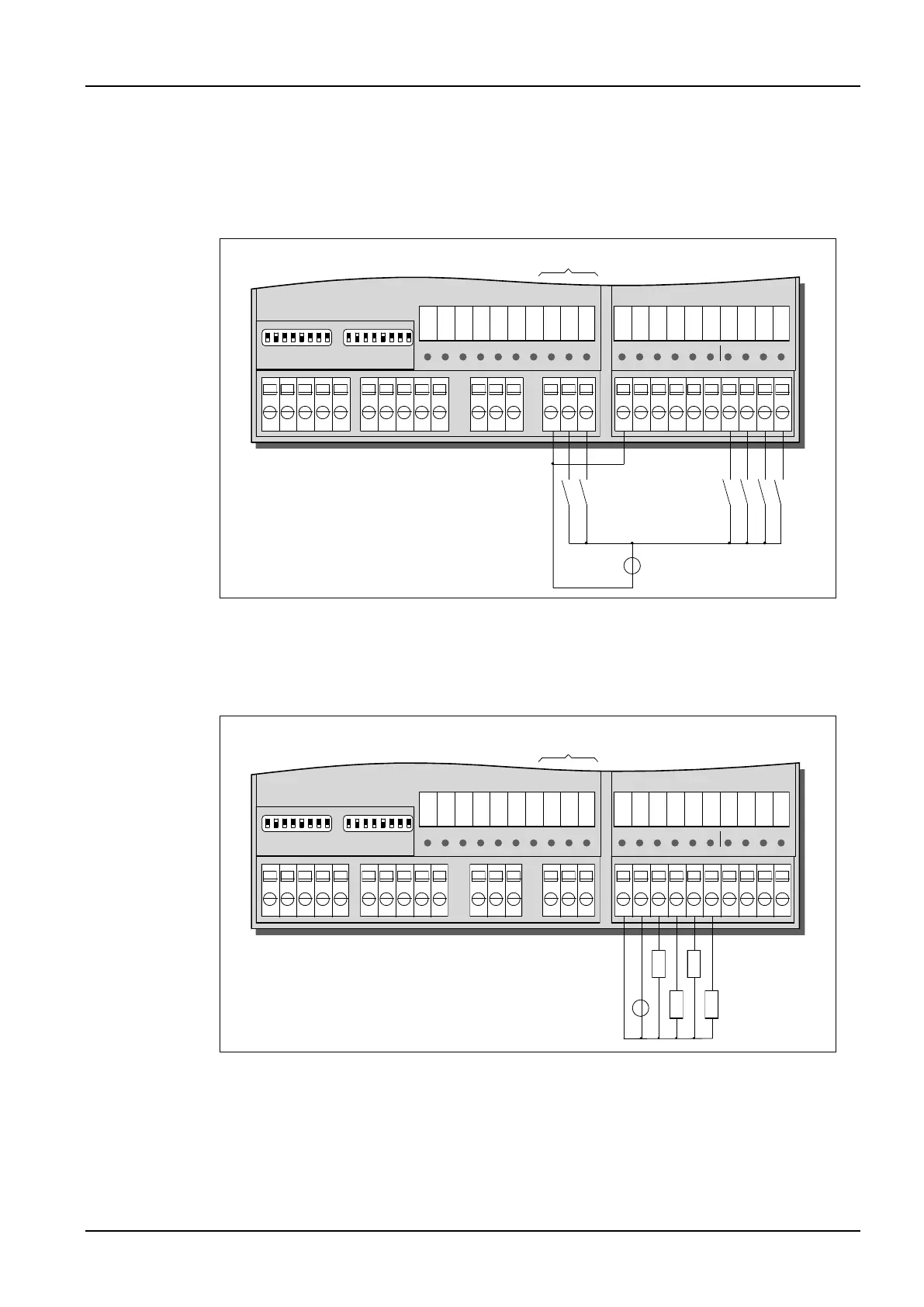

Fig.11: Connection of the CPU 723-T digital input
1.4.4.2 Connection of the CPU 723-T Digital Output
The CPU 723-T has four 24 Vdc / 0.5 A digital outputs.
Fig.12: Connection of the CPU 723-T digital output
0V US 00 01 02 03 04 05 06 070V 00 01
+
Input Output Input
Interrupt inputs
US: 24 Vdc
0V US 00 01 02 03 04 05 06 070V 00 01
+
Input Output Input
Interrupt inputs
+24 Vdc
