Rotor technical data
®
Communication protocol DiSEqC1.2 Level
Maximum dish weight 10 Kg
Diameter of support pole ø (35 to 68) mm
Rotation angle ±65°
Rotation speed 2,4°/s (18V) 1,5°/s (13V)
Operating power supply 13/18 Vdc
Consumption in stand-by mode 40 mA
Consumption in operating mode 180 mA
Starting movement consumption (max) 350 mA
Operating temperature -40°C +80°C
Maximum relative humidity 100%
®
Programmable positions (DiSEqC1.2 ) 49 satellites
®
Preset positions (DiSEqC1.2 ) 28 satellites
®
Programmable positions (USALS ) no limits
Connectors F type
Connection Coaxial cable
Mechanical limits ±72°
Programmable electrical limits from 5° to 65°
Fine rotation by impulses of 0,1°
Inclination of the rotor on the pole from 10° to 70°
Rotor weight 2,2 kg
We guarantee the complete compability and the
®
perfect working in USALS mode only with receivers
which carry this logo:
®
ENGLISH
A12 - (1)
A7 - (9)
A1 - (1)
2
B11 - (2)
B10 - (2)
B9 - (2)
B6 - (2)
B1 - (1)
B5 - (1)
B12 - (4)
B14 - (5)
B8 - (1)
B7 - (1)
A2 - (1)
A9 - (1)
A3 - (6)
A4 - (6)
A5 - (4)
A8 - (2)
A10 - (2)
A11 - (2)
Antenna
B4 - (1)
B2 - (1)
B3 - (1)
B13 - (1)
A6 - (1)

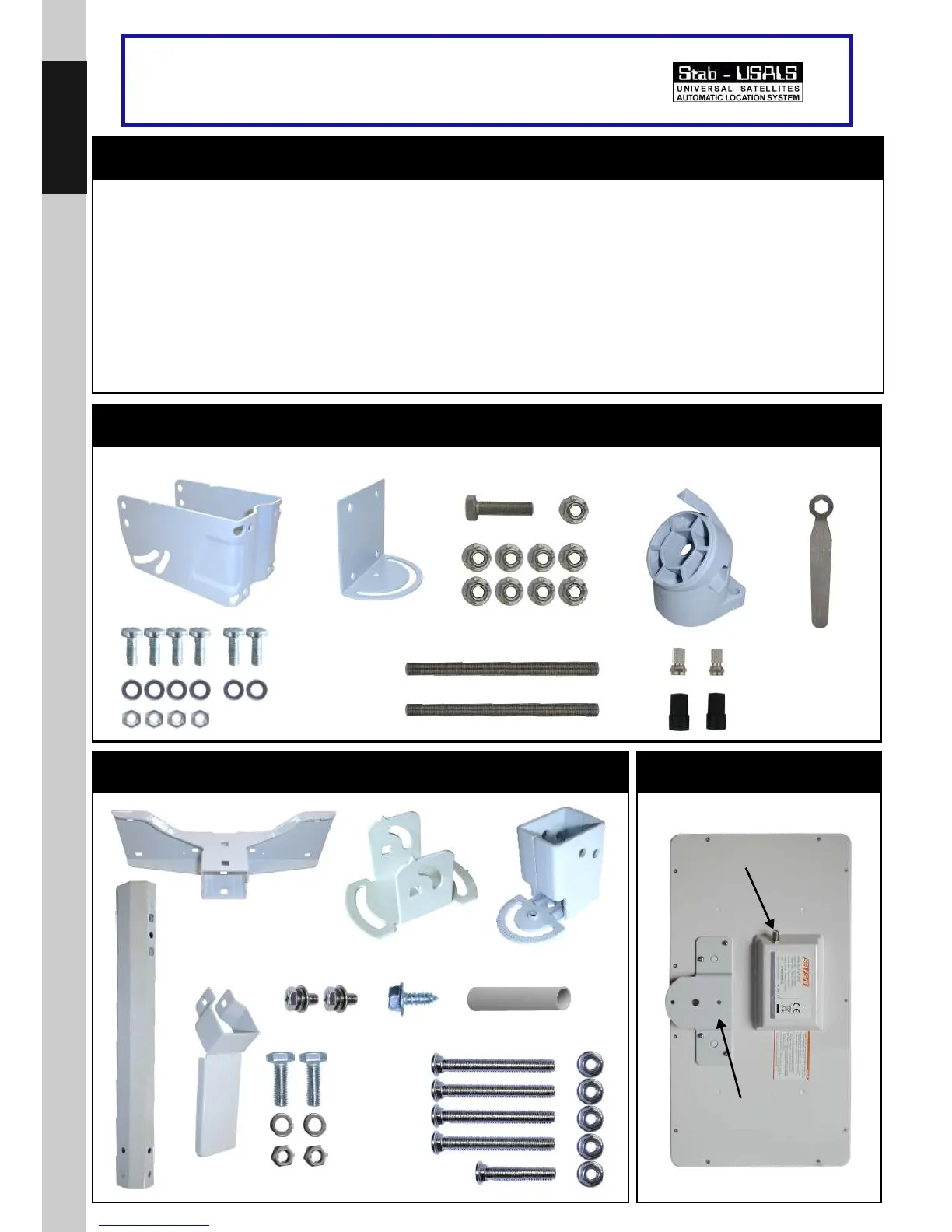

Accessories for rotor assembly
Accessories for antenna assembly
Connector
Bracket for fixing
the rotor
