15

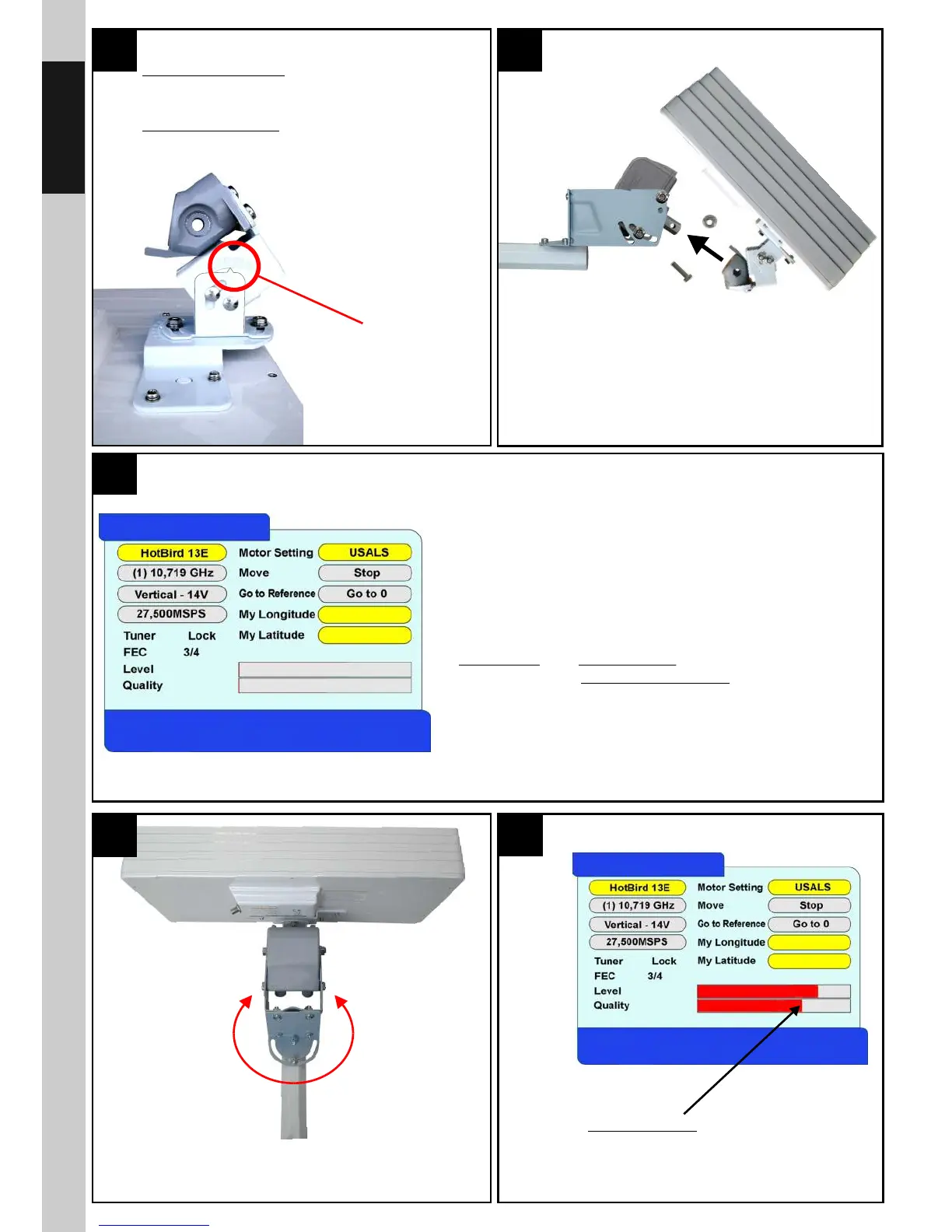

Wait until the motor stops. Slightly rotate clockwise
or anticlockwise the dish and the motor locked
together until you find an image on the TV screen.
When the signal quality reaches the top value,
tighten the motor screws to the supporting pole.
Installation is now finalized.
14
®
- See your receiver's instructions manual and select the type of installation in USALS mode.
- Choose a satellite the nearest to your SOUTH (if you lie in
the northern hemisphere) or NORTH (if you lie in the
southern hemisphere).
- Fill in the empty spaces in the receiver's menu with the
LATITUDE and LONGITUDE valus previously provided
by the web site: www.stab-usals.us or by the maps on
pages 32-39.
EX: ROMA, LONGITUDE 12,5°E
nearest satellite, HOTBIRD 13,0°E
EX: ROMA, LATITUDE 41,9°N
LONGITUDE 12,5°E
Antenna setup
USALS positioner in use
012,5 E
41,9 N
When the value have been correctly received, the receiver drives the motor to the calculated position.
Antenna setup
USALS positioner in use
012,5 E
41,9 N
87%
76%
16
Insert the rotor pole in its own position on the motor
and fix it with the provided screw and nut.
The value which has to
be set up on the scale
is:
Tighten the screws.
38,5 + 3 =
41,5°
Example: ROME
Elevation (HH90)= 38,5°
Adjust the antenna inclination according to the
DISH ELEVATION value obtained from the
maps on pages 32-39. If you are going to adjust
the motor according to the value received by
www.stab-usals.us , please add 3 degrees to
the elevation value for HH90 motor.
IN
13
12
6
ENGLISH
