TB-6123 Revision 10/06
Page 2 of 12

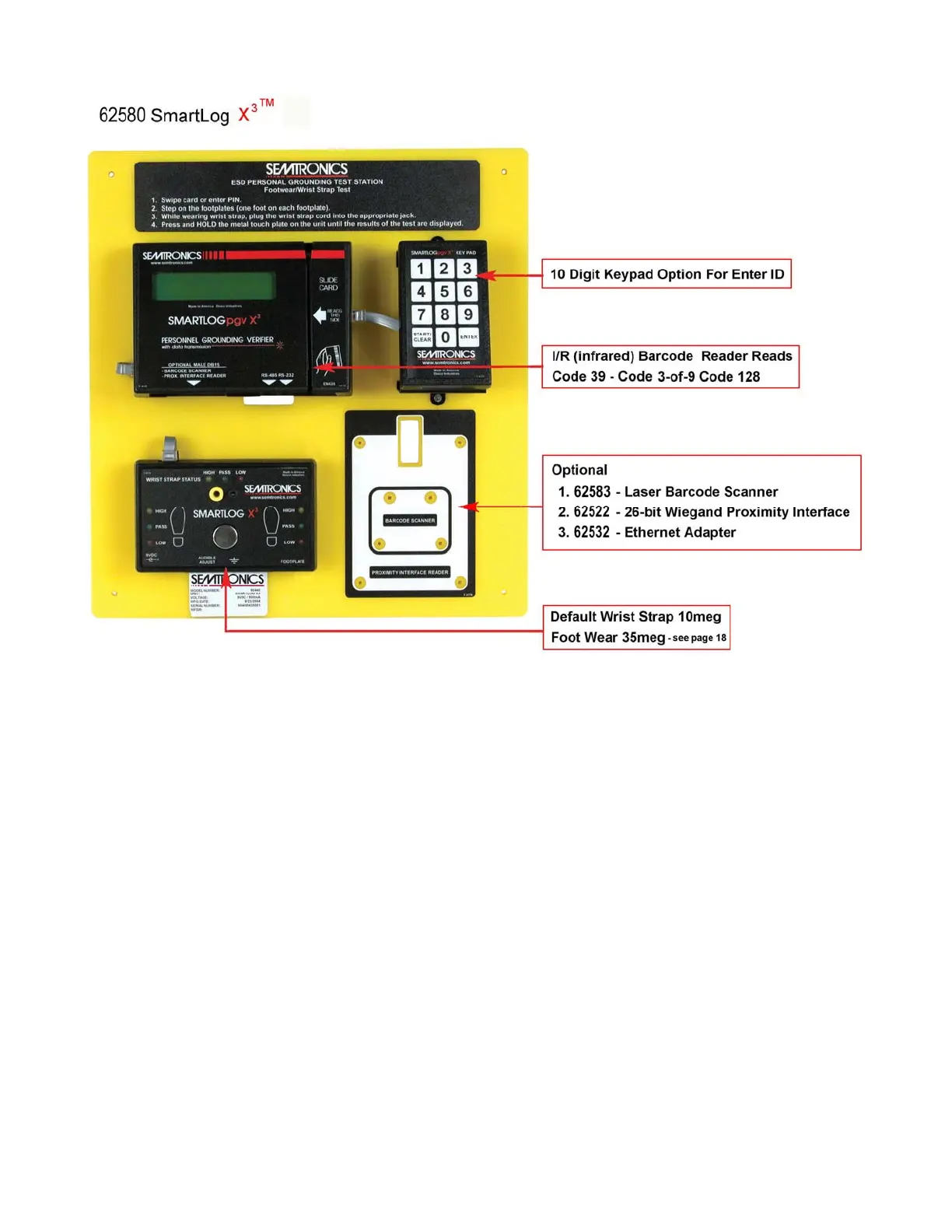

Carefully unpack the Semtronics 62580 SmartLogX
3
™ wrist strap and footwear tester.
62580 SmartLogX
3
™ comes factory default and ready to install without any changes to clock’s
configuration. If a second SmartlogX
3
™ is being added or is going to be “Daisy-Chained”, refer to
next set of instructions for configuring clocks on a daisy-chain.
Note:
Unit is not designed to work in high humidity environments where RH% is above 65 RH%.
Unpack and verify the following are included:
- 1 SmartlogX
3
™ on yellow mounting plate with tester and keypad
- 1 Dual foot plate
- 1 Stereo cable for dual foot plate
- 1 SmartlogX
3
™ 6.03 software
- 1 AC adapter 12VDC 500mA center pos.
- 1 DB9 serial adapter
- 1 25” straight data cable
- 4 mounting anchors
- 4 mounting screws
