TB-6123 Revision 10/06
Page 5 of 12

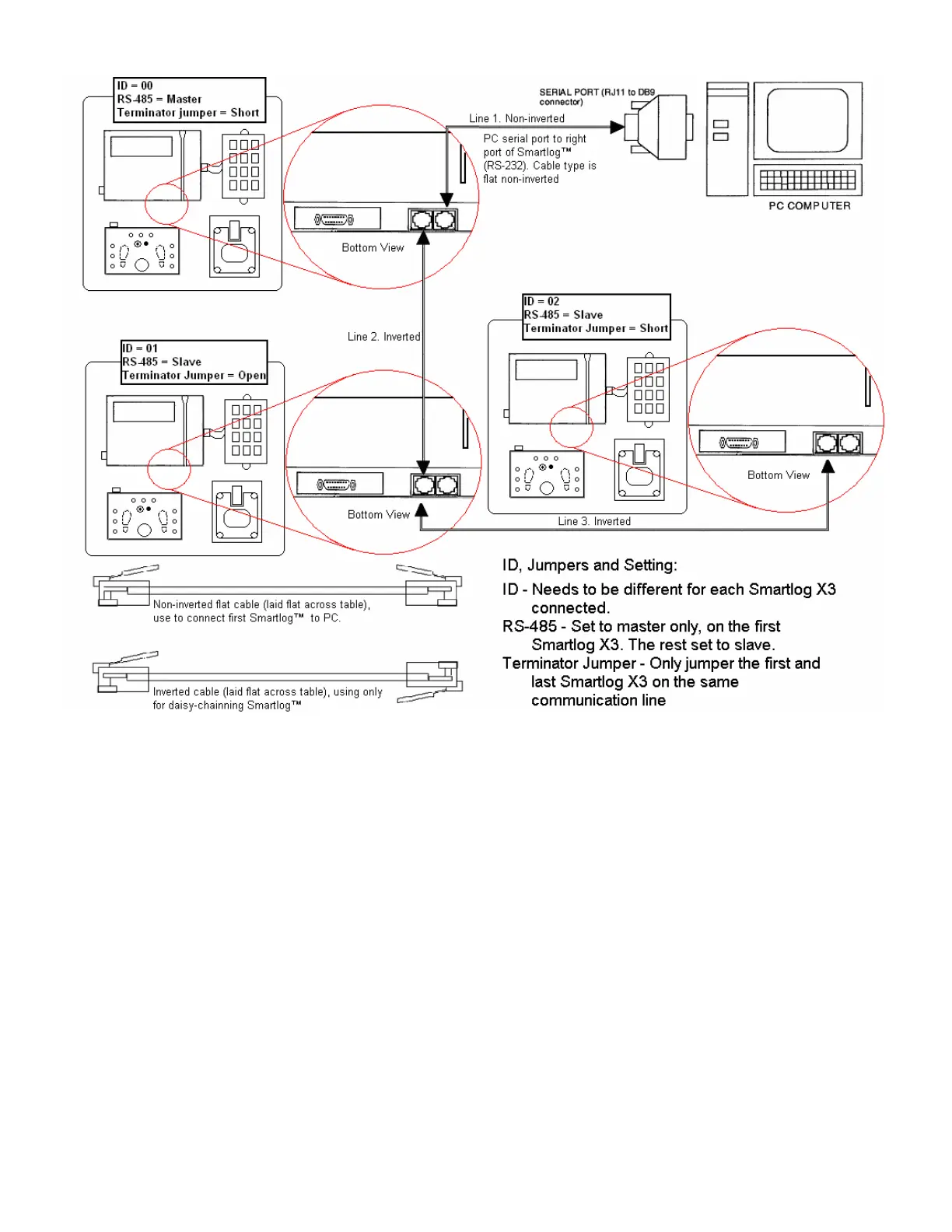

Figure 2. Data Cable Connections and Clock Settings
2. SmartlogX
3
™ Hardware
A. 10 Digit Key pad can be use to manually punch in ID badge number if no card is present.
Press CLEAR, enter ID number and press ENTER to start test.
B. Tester. Wrist strap test range is 1Meg to 10Meg Ohms. Footwear test range is 1Meg Ohms to
35Meg Ohms standard. SmartlogX
3
™ would have to be sent in to factory if test ranges is need
to be set differently. Tester test voltage is 12.0 VDC @ 0.40mA max for wrist strap and
footwear.
C. I/R Barcode Reader reads the barcode from the right hand side.
