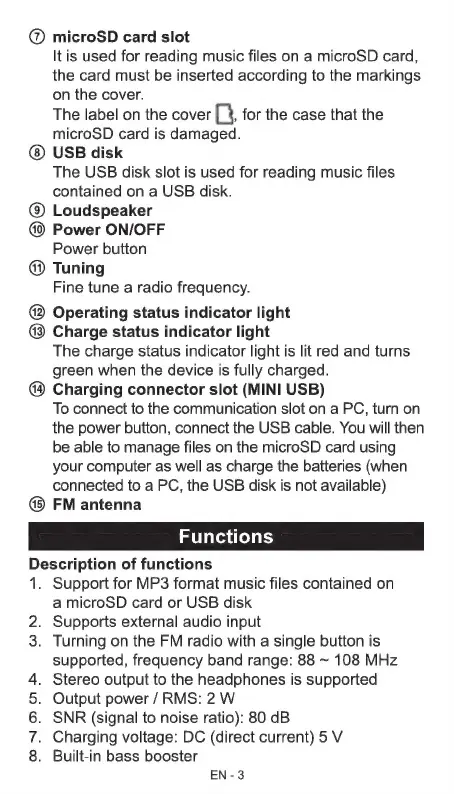

Sencor SRD 215 B - Device Functions and Specifications; Supported Media Formats; Audio Input and Output; FM Radio Range

@ microSD card slot
It is used for reading music files on a microSD card,
the card must be inserted according to the markings
on the cover.
The label on the cover B! for the case that the
microSD card is damaged.
USB disk
The USB disk slot is used for reading music files
contained on a USB disk.
@ Loudspeaker
Power ON/OFF
Power button
@ Tuning
Fine tune a radio frequency.
@ Operating status indicator light
@® Charge status indicator light
The charge status indicator light is lit red and turns
green when the device is fully charged.
Charging connector slot (MINI USB)
To connect to the communication slot on a PC, turn on
the power button, connect the USB cable. You will then
be able to manage files on the microSD card using
your computer as well as charge the batteries (when
connected to a PC, the USB disk is not available)
® FM antenna
Functions
Description of functions
1. Support for MP3 format music files contained on
a microSD card or USB disk
2. Supports external audio input
3. Turning on the FM radio with a single button is
supported, frequency band range: 88 ~ 108 MHz
Stereo output to the headphones is supported
Output power / RMS: 2 W
SNR (signal to noise ratio): 80 dB
Charging voltage: DC (direct current) 5 V
Built-in bass booster G No Or e
EN-3
