Sennheiser HDVD 800 - Product Overview; Front Panel Controls and Indicators; Rear Panel Connections

Product overview
HDVD 800 | 6
Product overview

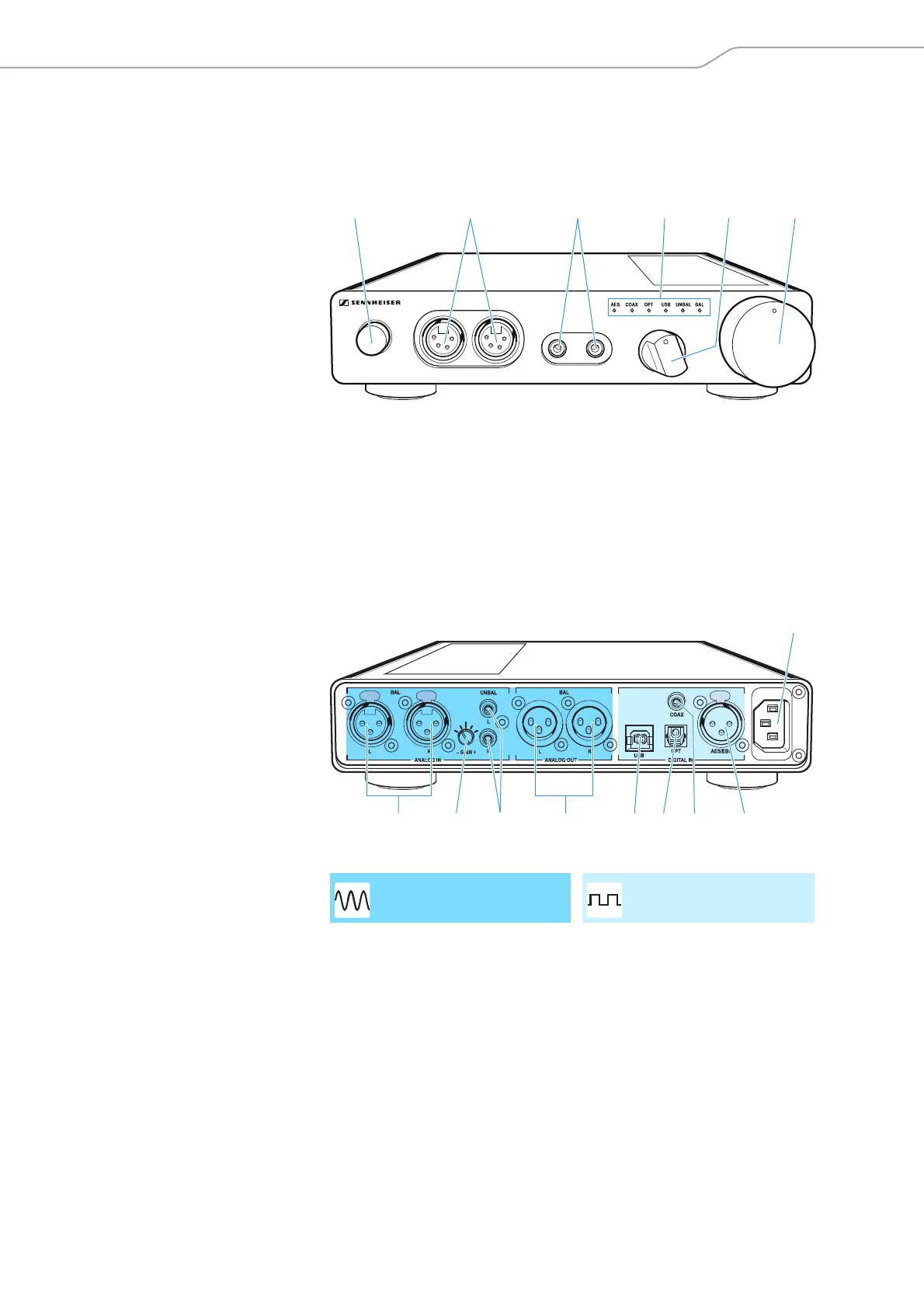

Overview of the front panel
Overview of the rear panel
7 Mains socket
1 On/off button
2 Headphone outputs,
XLR-4 socket, balanced
3 Headphone outputs,
¼“ (6.35 mm) jack socket,
unbalanced
4 Input selection LED
5 Input selection rotary switch
6 Volume control
1
3
4
6
2
5
Analog Digital
8 XLR-3 input socket,
balanced (BAL L, R)
9 Input attenuation rotary switch
(-GAIN+) for RCA input
0 RCA input socket,
unbalanced (UNBAL L, R)
A XLR-3 output socket,
balanced (BAL L, R)
B USB socket, type-B
C S/PDIF input, optical
(OPT)
D S/PDIF input, coaxial,
(COAX)
E XLR-3 input socket
for AES/EBU
8
7
A
C
D
E
B
0
9
