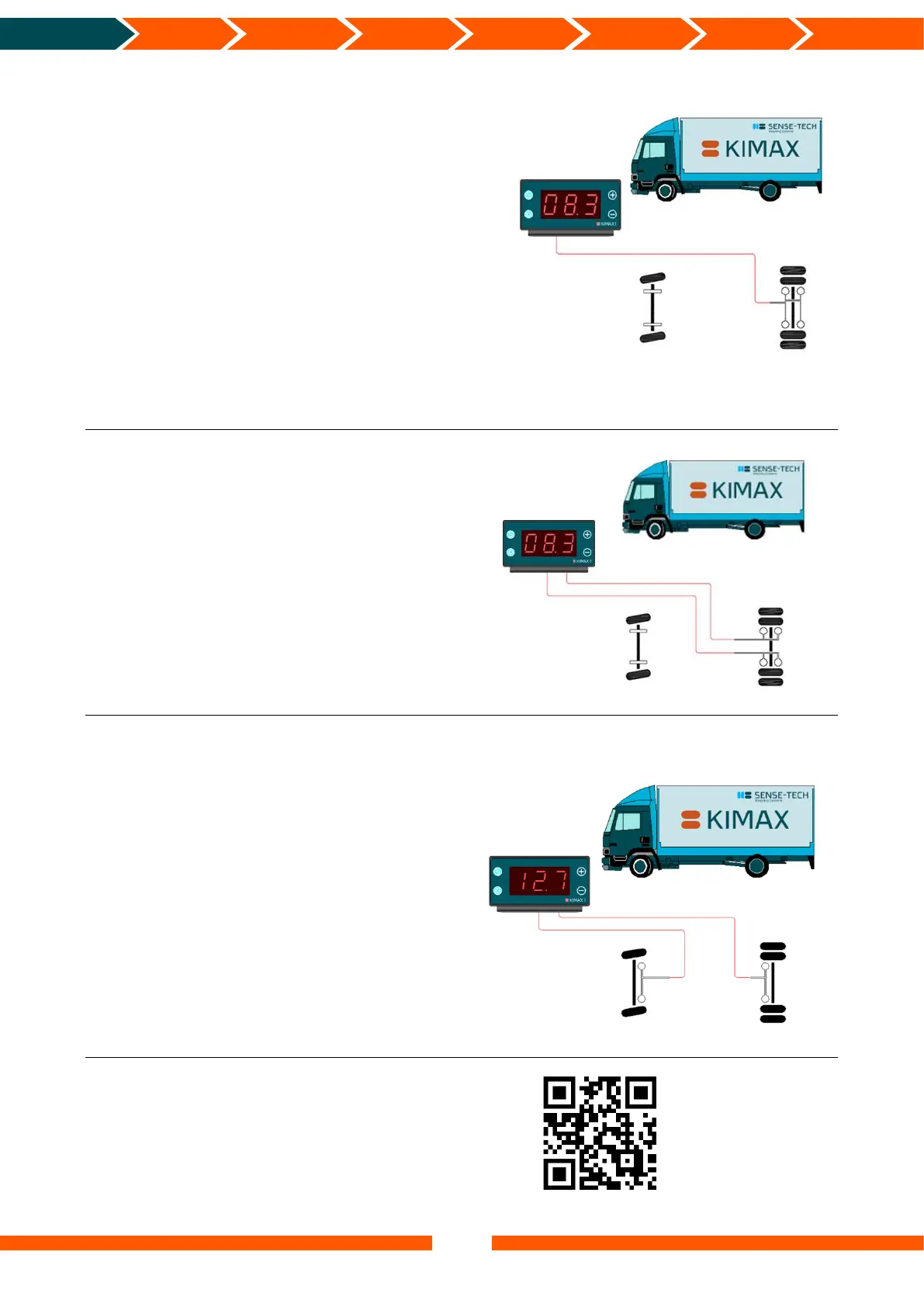

Basic Kimax 1 installation
A Single air inlet channel is used on vehicles with
combined level control for one or more axles.
In case of uneven load from one side to the other
the pressure will slowly be equalized between the
bellows in each side.
The reading on the Kimax unit will be correct when
the pressure is equalized.
This application is used for measuring the axle load
of a rear axle.
A dual air inlet channel is used on vehicles with
split level control for one or more axles.
The Kimax unit calculates the weight using the
air pressure from each side. In case of uneven
load the Kimax will show the correct axle load
immediately after loading.
This application is ideal for measuring the axle
load of a rear axle.
A dual air inlet can be applied on vehicles with
one or more individual axles arranged in a
combined level control system.
Using a Kimax 1 on two or more individual axles
offers you a limited accuracy, because the
measuring of the load depends on the center of
gravity for the entire load - for better accuracy
we recommend our Kimax 2 product group.
