Mounting the Processor Unit:
The ST-2200 Processor Unit (Processor) is typically panel mounted in an enclosure next to the
line for ease of access during maintenance calibration or in a control room within the Processor
Cable length to the Sensor.
To panel mount the Processor, remove the front plastic bezel and attach the Processor
mounting brackets, provided with the Processor Unit, to the Processor housing. It is
necessary to loosen the Processor front panel in order to install the mounting brackets
onto the housing.
When locating the Processor, allow sufficient depth for the length of the unit plus at least 3-
inches (76mm) to accommodate cables at rear of unit.

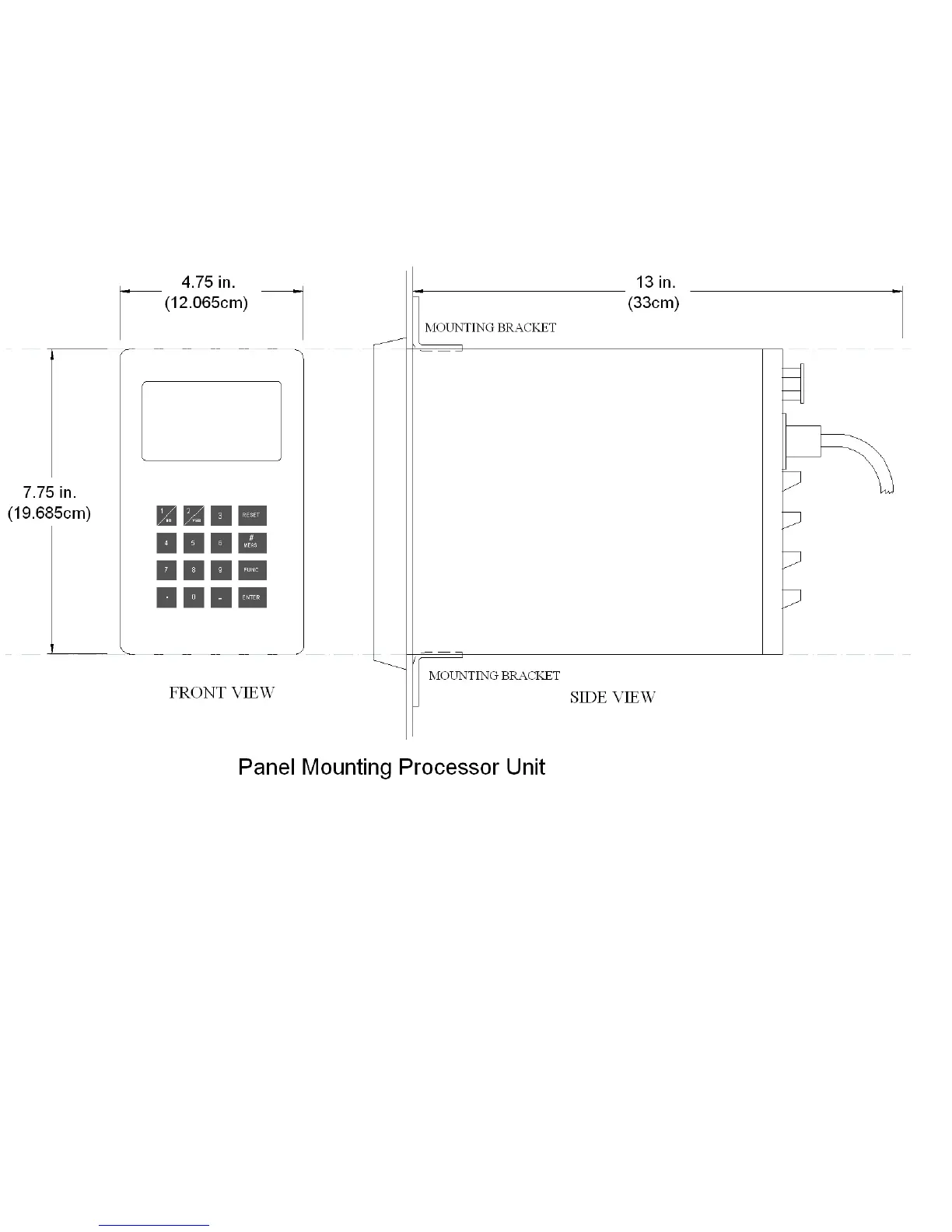

. Processor Unit Dimensions
