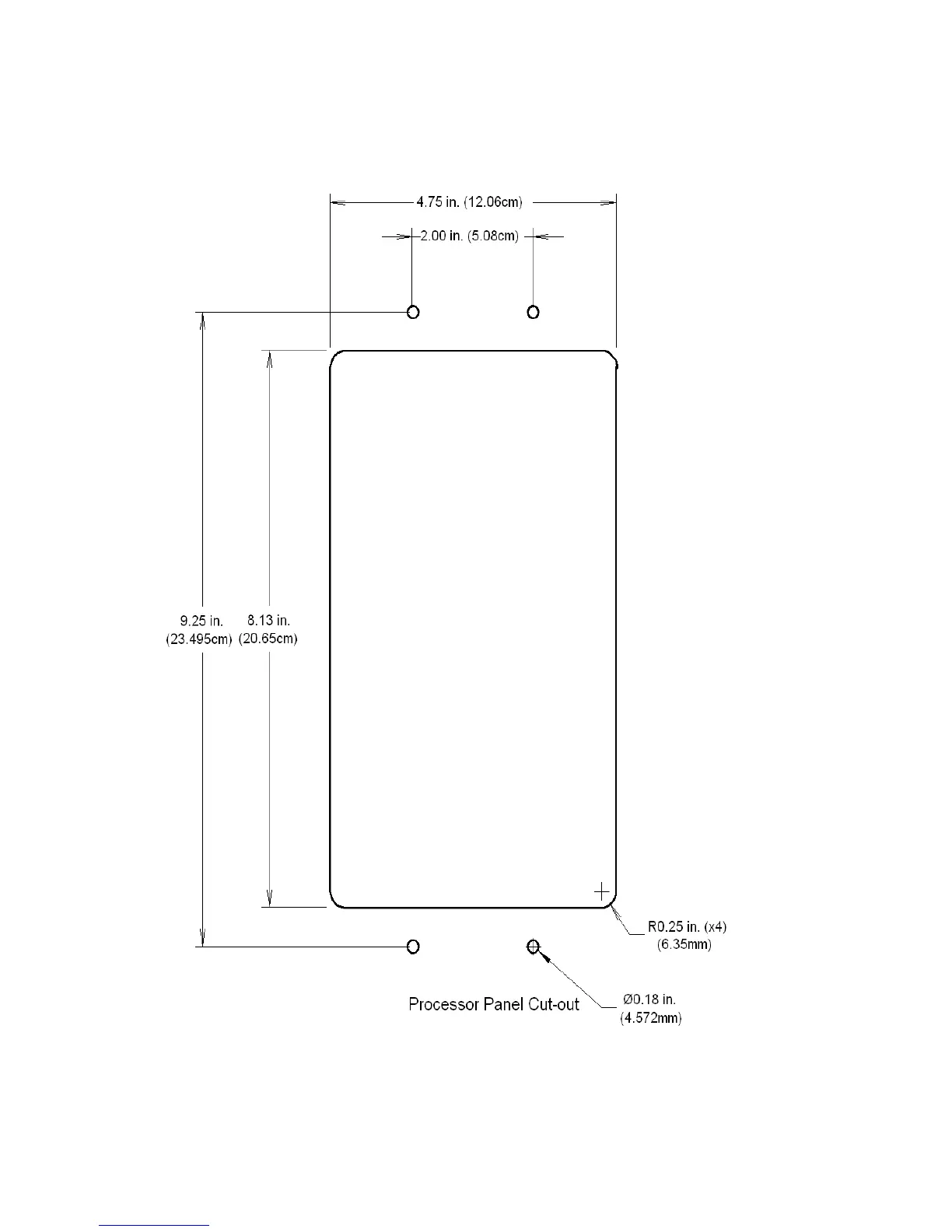

To panel mount the Processor, use the panel cut-out mounting diagram below to cut out a
rectangular hole for the front panel. Drill four thru holes to install bolts to attach to the Processor
mounting brackets.
Figure
8
. Processor Panel Cut
-
out Dimensions
