Sentinel 880 - Page 49

21 3
4
5 6
7
8
9
10
11
12
13
14
17
18
15
16
19
20
DOUBLE
STACKED
APPLY
THREAD
LOCK
APPLY
THREAD
LOCK

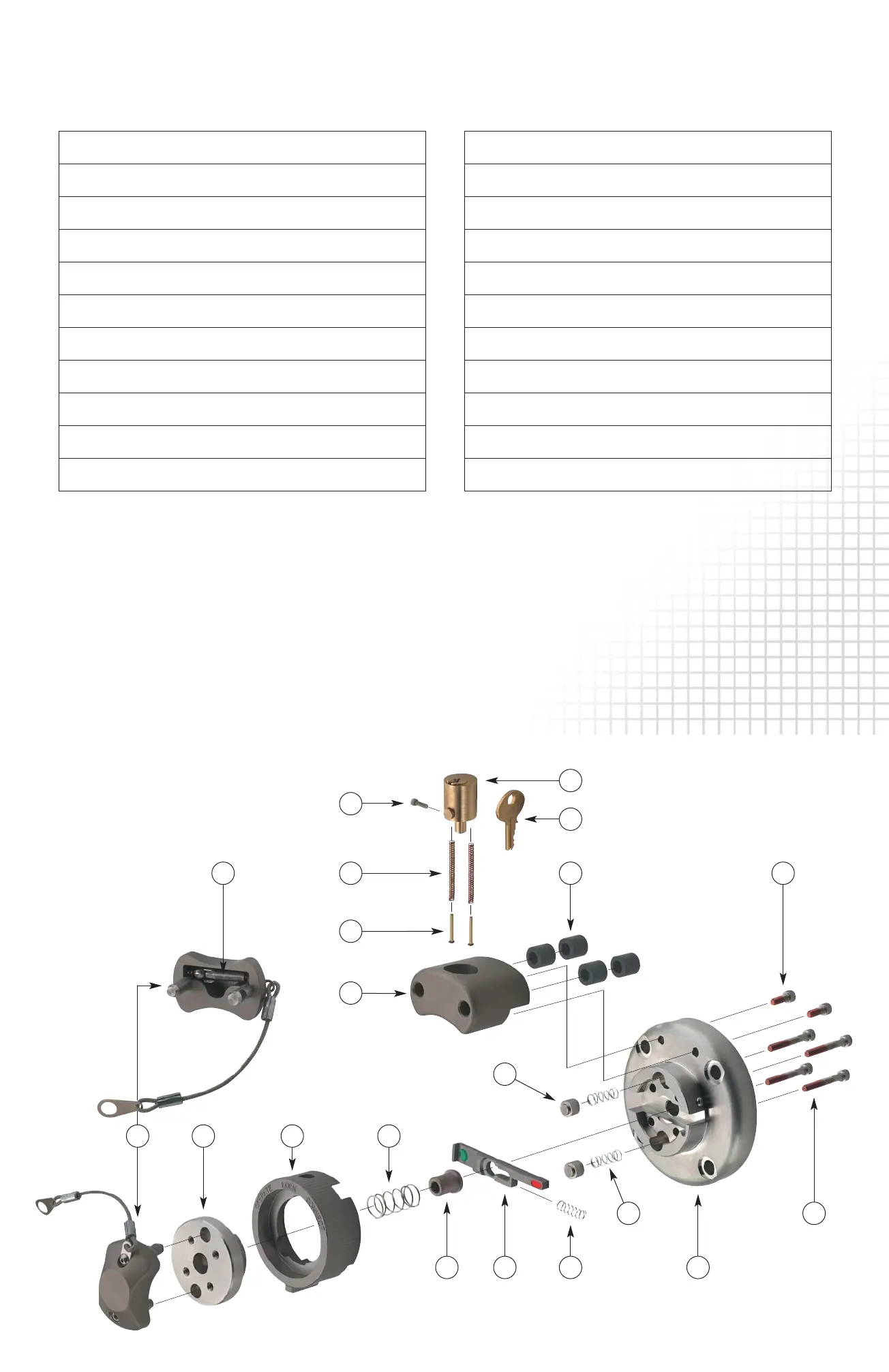

REAR PLATE ASSEMBLY
ITEM PART NUMBER QTY. DESCRIPTION
1 88014 1 LOCK COVER ASSEMBLY
2 85701-5 1 SELECTOR RING RETAINER
3 88026 1 SELECTOR RING
4 SPR005 1 COMPRESSION SPRING
5 88025 1 SLEEVE
6 88024 1 LOCK SLIDE
7 SPR006 1 COMPRESSION SPRING
8 66001-6 2 ANTI-ROTATE LUGS
9 SPR004 2 COMPRESSION SPRING
10 88021 1 REAR PLATE
ITEM PART NUMBER QTY. DESCRIPTION
11 SCR003 4 SOCKET HEAD CAP SCREW
12 SCR072 2 SOCKET HEAD CAP SCREW
13 SLV005 4 RUBBER SLEEVE
14 88022 1 LOCK MOUNT
15 66001-11 1 LOCK ASSEMBLY
16 2 LOCK PIN
(supplied with 66001-11)
17 2 LOCK SPRING (supplied with 66001-11)
18 SCR023 1 SOCKET HEAD CAP SCREW
19 66001-811 2 KEY
20 66001-20 1 DUMMY CONNECTOR
