Sentinel 880 - Page 51

2 3
4
6
1112
13
1
910
6
5
7 8
EQUAL
PROTRUSION
APPLY
THREAD
LOCK
APPLY
THREAD
LOCK

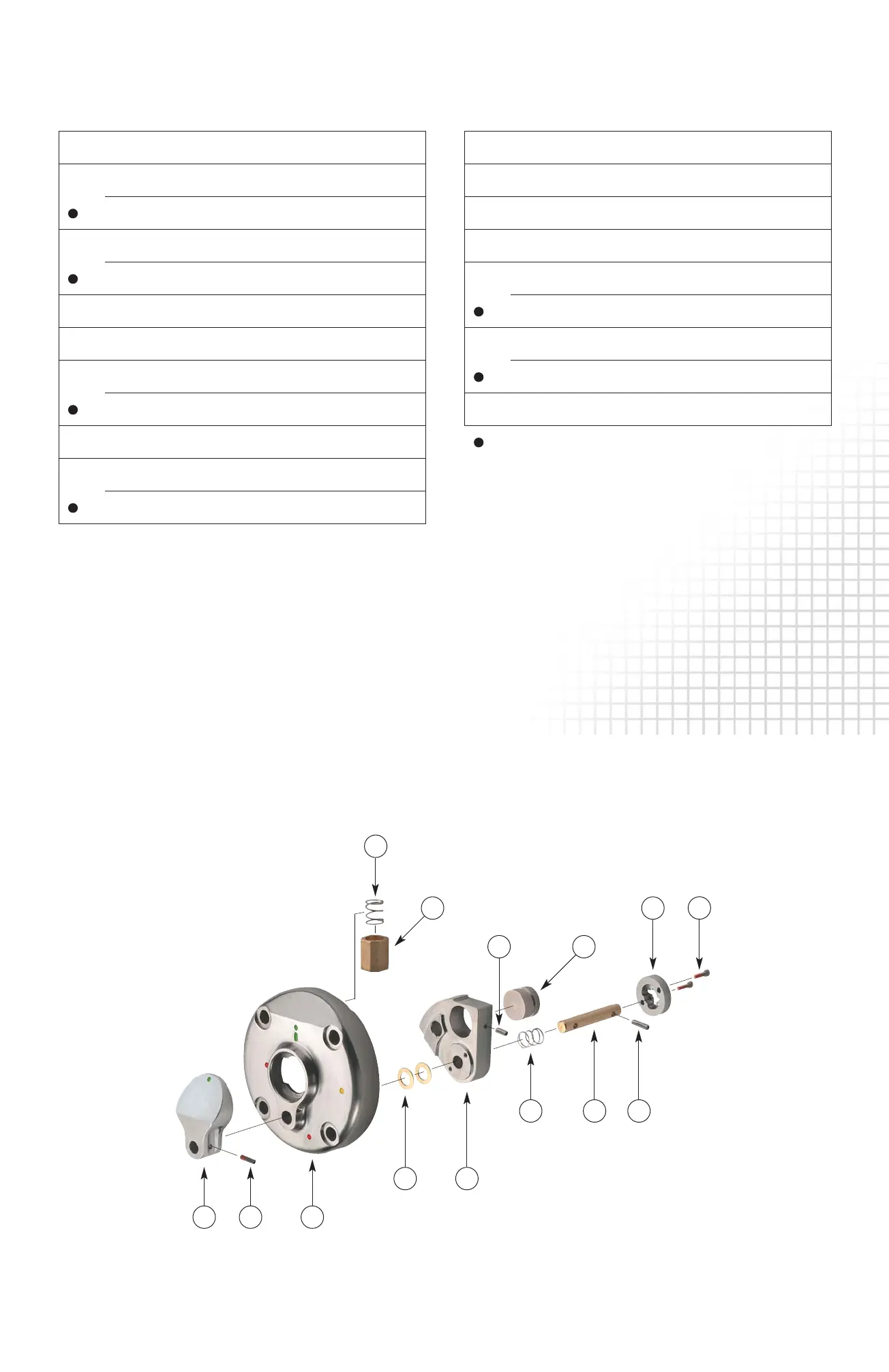

FRONT PLATE ASSEMBLY
ITEM PART NUMBER QTY. DESCRIPTION
1 88033 1 PORT COVER (SET SCREW TYPE)
88033A 1 PORT COVER (ROLL PIN TYPE)
2 SCR162 1 SET SCREW
PIN036 1 ROLL PIN
3 88031 1 FRONT PLATE
4 88036 2 WASHER
5 88032 1 ROTOR (ROLL PIN TYPE)
88032A 1 ROTOR (SET SCREW TYPE)
6 SPR033 2 COMPRESSION SPRING
7 88037 1 SHAFT (SET SCREW TYPE)
88037A 1 SHAFT (ROLL PIN TYPE)
ITEM PART NUMBER QTY. DESCRIPTION
8 PIN024 1 ROLL PIN
9 SCR160 2 SOCKET HEAD CAP SCREW
10 88039 1 PIVOT DISK
11 88034 1 PORT SHIELD (ROLL PIN TYPE)
88034A 1 PORT SHIELD (SET SCREW TYPE)
12 PIN038 1 ROLL PIN
SCR157 1 SET SCREW
13 88035 1 SLIDER
COMPONENTS ON SOME MODELS DIFFER SLIGHTLY
FROM THOSE ILLUSTRATED – CHECK PART NUMBER
BEFORE ORDERING
