Sentinel 880 - Page 53

3
1
2
4
5
11
12
13
14
7
15
20
22
25
11
8
21
18
19
6
7
9
23 24
10
16
19
18
17

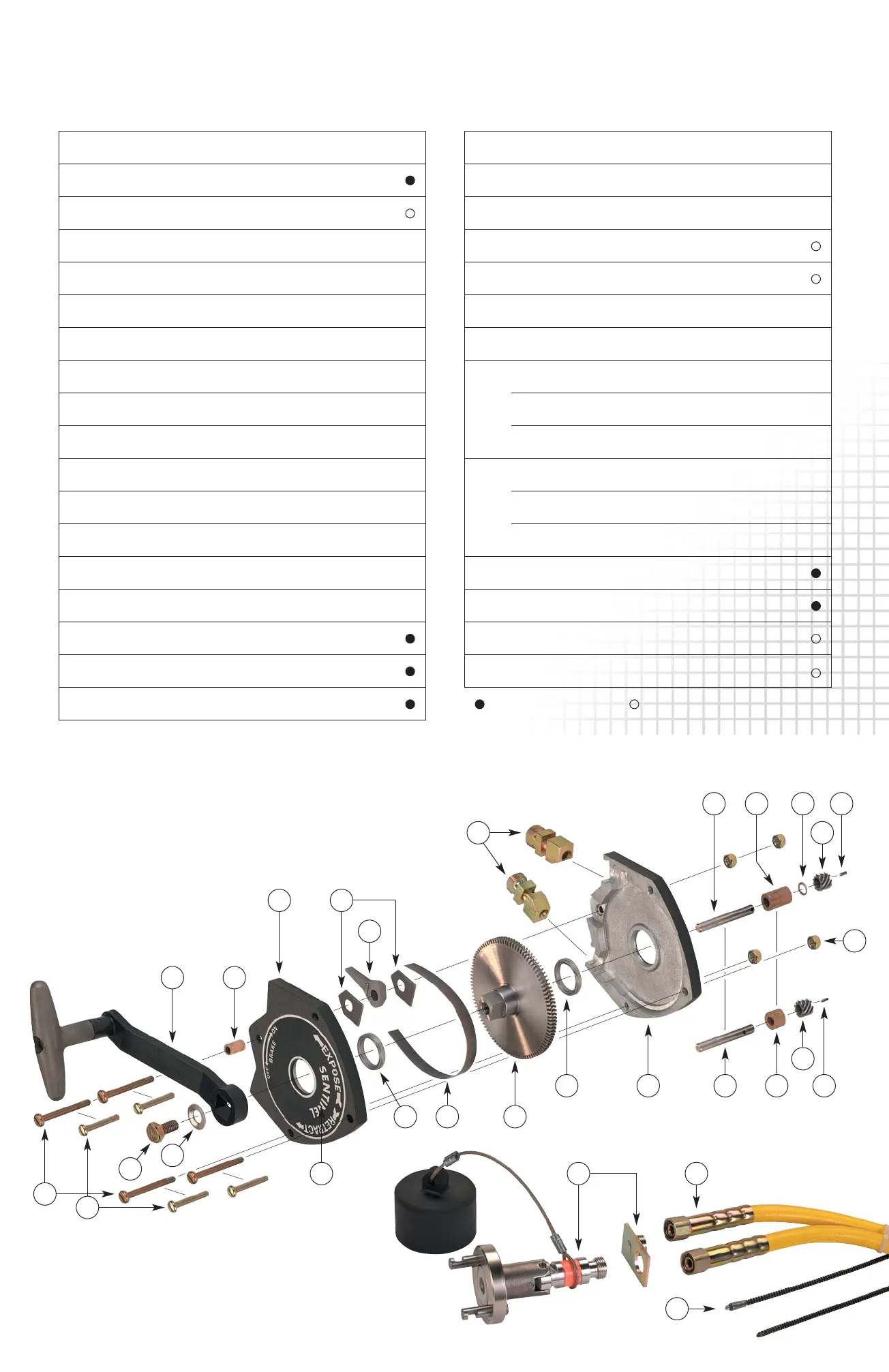

CONTROL ASSEMBLIES
ITEM PART NUMBER QTY. DESCRIPTION
1 SCR125 4 1
5
/
8
in BIND HEAD SCREW
2 SCR008 4 1
1
/
4
in BIND HEAD SCREW
3 BLT008 1 HEXAGONAL BOLT
4 WSH019 1 WASHER
5 68901 1 CRANK ARM
6 BBS-004 1 BRAKE BUSH
7 81800-10 2 CONTROL CRANK HOUSING
8 68900-8 1 CRANK DECAL
9 68900-4 2 BRAKE JAW
10 68900-3 1 BRAKE ARM
11 BBS-001 2 BALL BEARING ASSEMBLY
12 68900-7 1 WEAR STRIP
13 81800-1 1 DRIVE WHEEL
14 68900-2 2 CABLE ADAPTER
15 69302-1 1 GEAR SHAFT
16 BBS-007 1 OILITE BEARING
17 PIC-003 1 WASHER
ITEM PART NUMBER QTY. DESCRIPTION
18 GEA-002 1 HELICAL GEAR
19 PIN008 1 ROLL PIN
20 66404-1 1 GEAR SHAFT
21 BBS-005 1 OILITE BEARING
22 NUT025 4 STOP NUT
23 66103 1 SAFETY CONNECTOR
24 59125 2 25ft (7.6m) HOUSING
59135 2 35ft (10.7) HOUSING
59150 2 50ft (15.2m) HOUSING
25 55005 1 50ft (15.2m) CONTROL CABLE
55010 1 70ft (21.3m) CONTROL CABLE
55009 1 100ft (30.5m) CONTROL CABLE
26 69303 1 ODOMETER ASSEMBLY
27 69201-3 1 HANDLE
28 66410 1 FRAME
29 66403 1 ODOMETER ASSEMBLY
PISTOL GRIP MODEL REEL TYPE MODEL
