25
COUNTERTOP INSTALLATION
Remove all packing material and accessories. Examine the oven for any damage such as
dents or broken door. Do not install if oven is damaged.
Cabinet: Remove any protective lm found on the microwave oven cabinet surface.
Do not remove the light brown Mica cover that is attached to the oven cavity to protect the
magnetron.
INSTALLATION

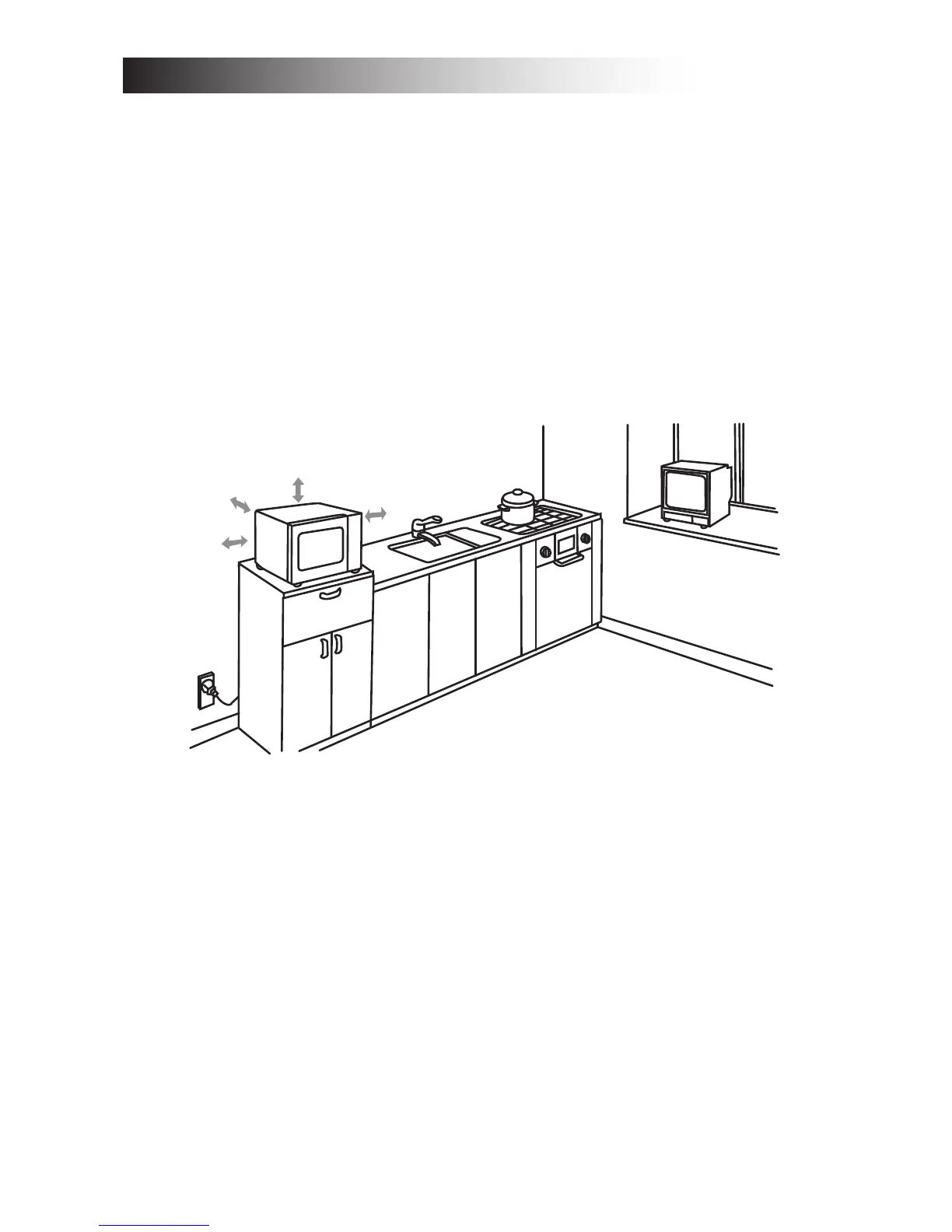

1 Select a level surface that provide enough open space for the intake and/or outlet vents.
A minimum clearance of 3.0 inches (7.5cm) is required between the oven and any adjacent
walls. One side must be open.
1. Leave a minimum clearance of 12 inches (30cm) above the oven.
2. Do not remove the legs from the bottom of the oven.
3. Blocking the intake and/or outlet openings can damage the oven.
4. Place the oven as far away from radios and TV as possible. Operation of microwave oven
may cause interference to your radio or TV reception.
2. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is
the same as the voltage and the frequency on the rating label.
WARNING: Do not install oven over a range cook-top or other heat-producing appliance. If
installed near or over a heat source, the oven could be damaged and the warranty would
be void.
MODEL: SMW1800E
Operation Instructions Cont.
3.0 inch(7.5cm)
3.0 inch(7.5cm)
12 inch(30cm)
OPEN
