SolaSmart™ Plus Installation Guide
Version 1.1 – Mar 2012 Page 9

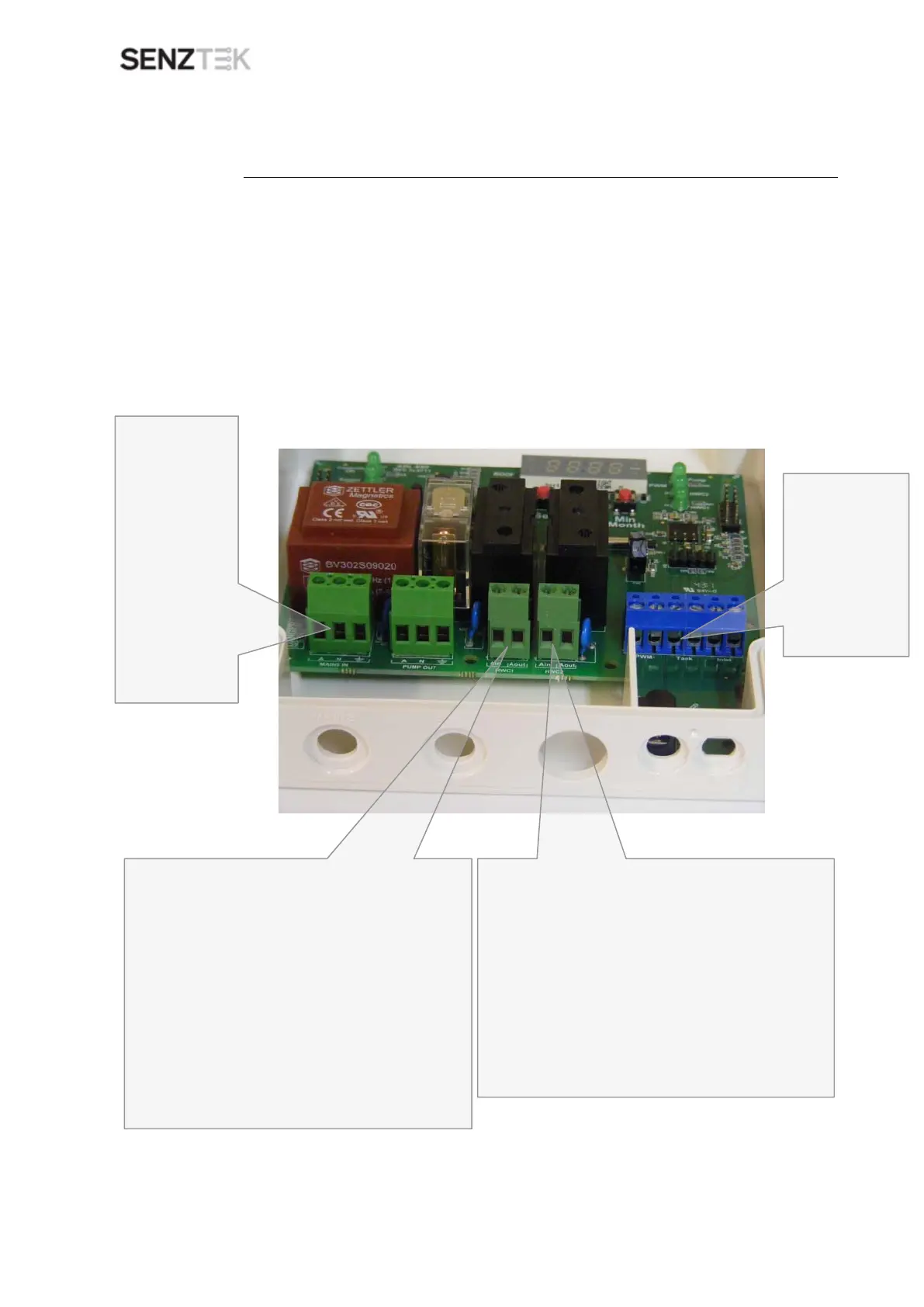

MOUNTING THE SENSORS AND CONNECTING WIRING, CONTINUED
Connect the
Wiring
The SolaSmart™ is supplied pre-wired with mains plug and pump socket,
tank and inlet sensors.
1. Connect the wiring from the SolaSmart™ Controller to the ROOF sensor,
the TANK sensor and the INLET sensor.
2. Connect the mains wiring.
3. Connect the wiring for the hot water cylinder element.
4. Connect the wiring from the SolaSmart™ Controller to the pump.
wiring from the
controller to the,
the TANK sensor
and the INLET
sensor (as
labelled).
Plug in the ROOF
sensor.
mains wiring.
Do NOT
connect the
mains wiring
to a circuit
that could be
switched off
by your
electricity
supplier to
manage peak
loads (ripple
control)
Connect the wiring from the controller to the hot water
cylinder element. Lower element or single element
Make sure that the electric element has a fuse that is
rated within the stated maximum of the relay driving
the
element.
This is a simple (clean) set of normally open contacts
that interrupt the Active/Phase wire that powers the
element.
Do not bypass any thermostats or cut-outs.
Ensure mechanical thermostat is adjusted to maximum
so controller can operate HWC.
NOTE: WIRING OF HWC MUST BE DONE BY A REGISTERED
Connect the wiring from the controller to the hot water
cylinder element. Upper element in a dual element tank
Make sure that the electric element has a fuse that is rated
within the stated maximum of the relay driving
the element.
This is a simple (clean) set of normally open contacts that
interrupt the Active/Phase wire that powers the element.
Do not bypass any thermostats or cut-outs.
Ensure mechanical thermostat is adjusted to maximum so
controller can operate HWC.
NOTE: WIRING OF HWC MUST BE DONE BY A REGISTERED
ELECTRICIAN
.
