DISASSEMBLY PROCEDURES

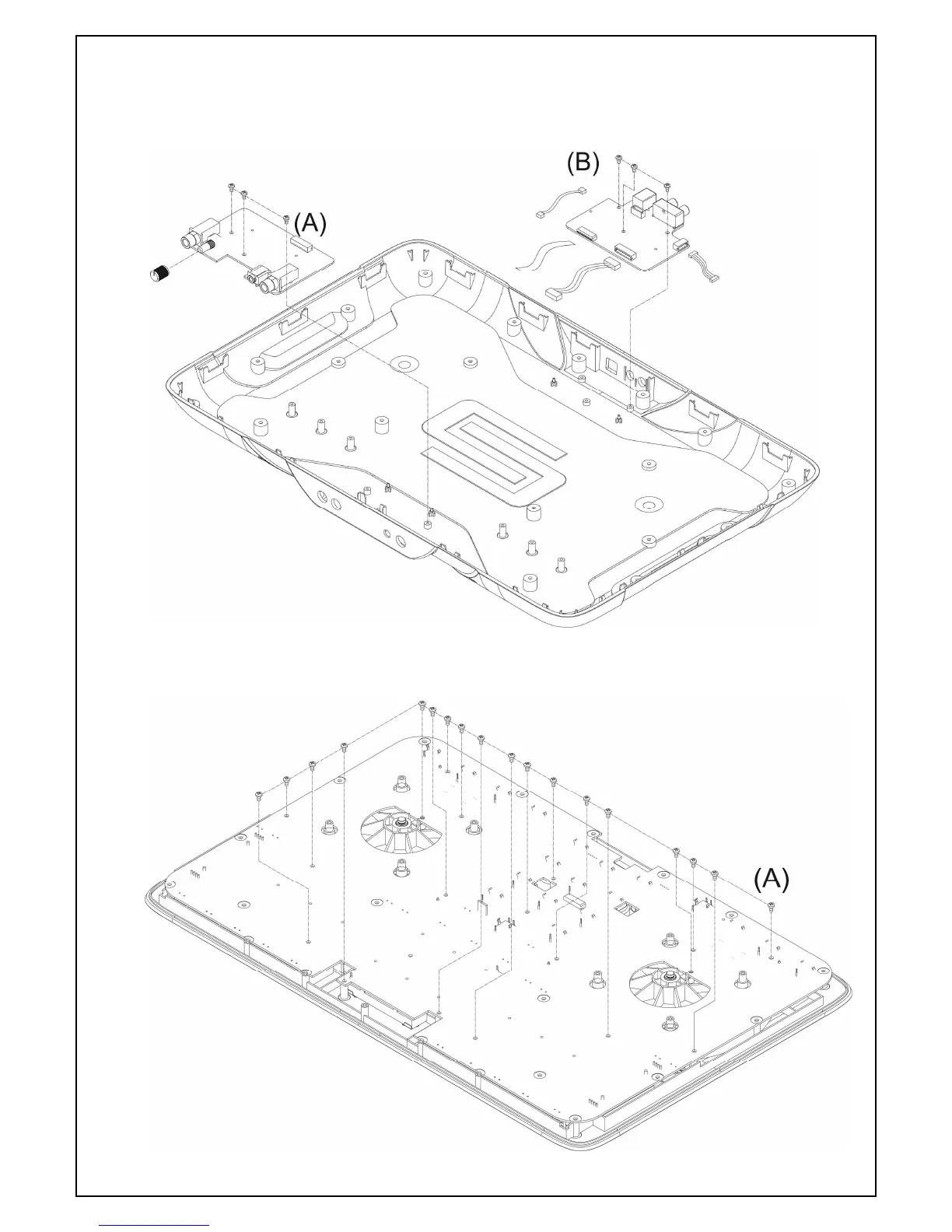

2. REMOVAL OF MAIN PCB AND MIC PCB AND HEADPHONE PCB ASS’S (Fig.2)
(A) REMOVE THE 3 PCS SCREWS AND 1 PC KNOB BEFORE REMOVAL OF FRONT PCB ASS’Y.
(B) REMOVE THE 3 PCS SCREWS AND 4 PCS CONNECTORS BEFORE REMOVAL OF MAIN PCB ASS’Y.
(Fig.2)
3. REMOVAL OF CONTROL PCB A&B ASS’Y (Fig3)
(A) REMOVE THE 18 PCS SCREWS BEFORE REMOVAL OF CONTROL PCB ASS’Y.
(Fig.3)
