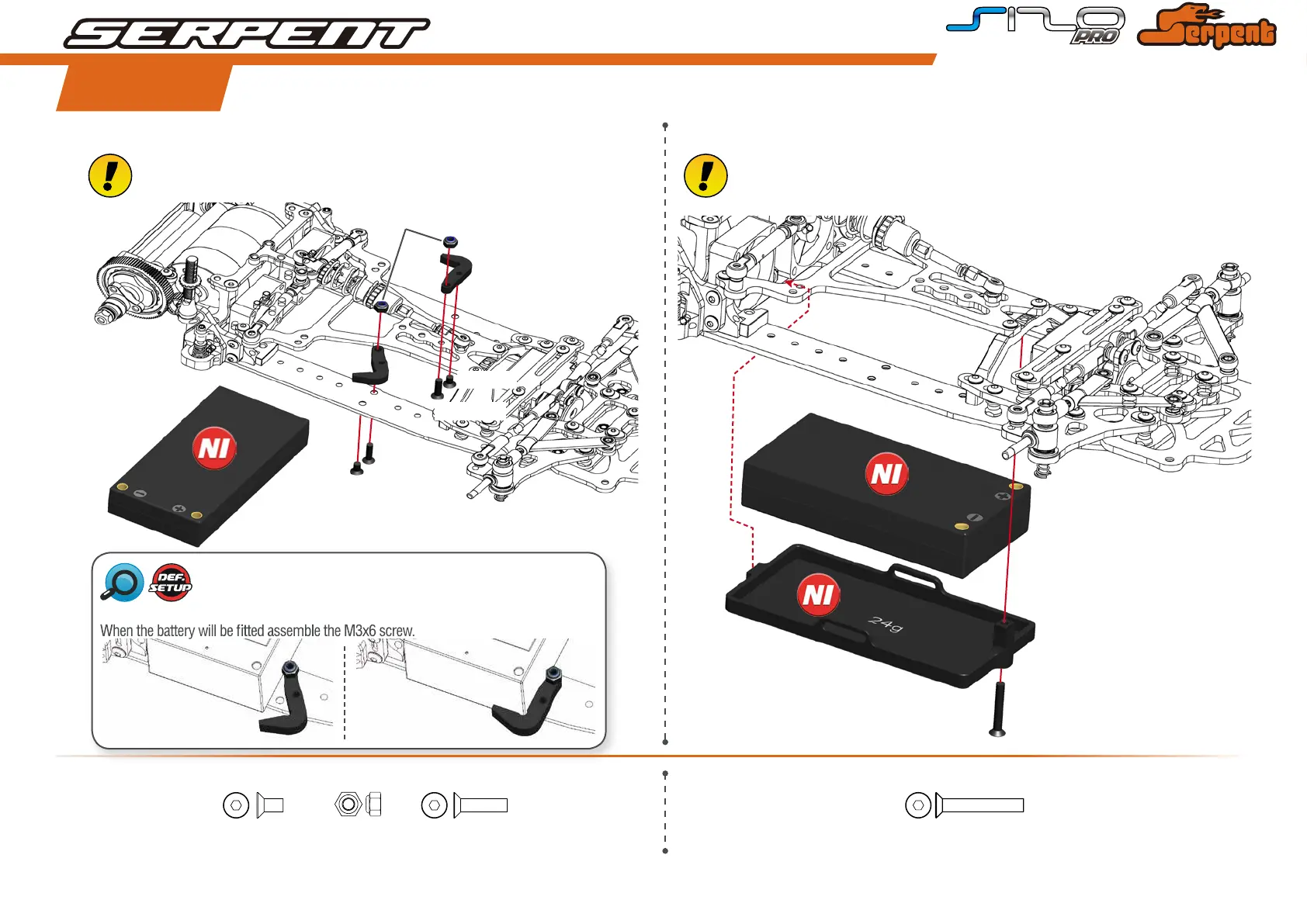

Serpent S120 PRO - Traction and Battery Mount Configuration

BATTERY MOUNT POSITION
To assemble the battery it is needed to remove the M3x6 screw and turn the battery holder .
STEP 37
25
Nylock Nut
M3
HIGH TRACTION CONFIGURATION OPTIONAL
Recommended for general use.
LOW TRACTION CONFIGURATION
DEFAULT
recommended for low traction
use (dusty asphalt, wet racing).
M3x20
M3x6
M3x12
Nylock Nut M3
M3x20
M3x6
M3x12
M3x12
M3x6
