14
The ignition circuit is switched on so that the engine can be started. It is impossible to pull out the ignition key from this position.
Steering lock: To lock the steering handlebar,turn the handlebar to left,insert the key and turn it clockwise.

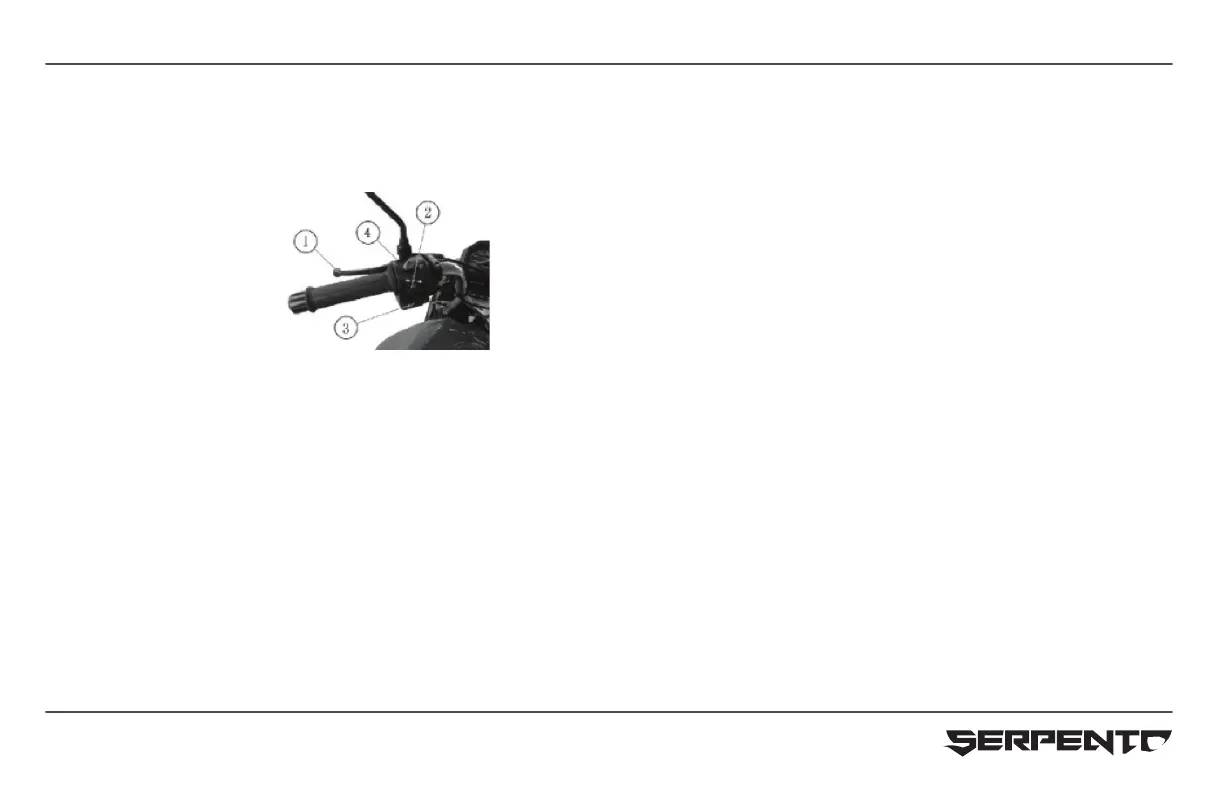

Left handlebar control system
1. Clutch grip
To start the engine or make a gear shifting,press the grip to release the drive system and cut off the clutch.
2.Turn signal switch
Turning signal operation when the switch is turned to left`1,1, “position , the left turning signal lamp is lit and the indicatior lamp on instrument
panel flashes.When the switch is turned to right”1->”position,the right turning signal lamp is lit and the indicator lamp on instrument panel
flashes.
