Serta Executive - Step 7: Cable Connectivity

Step 7

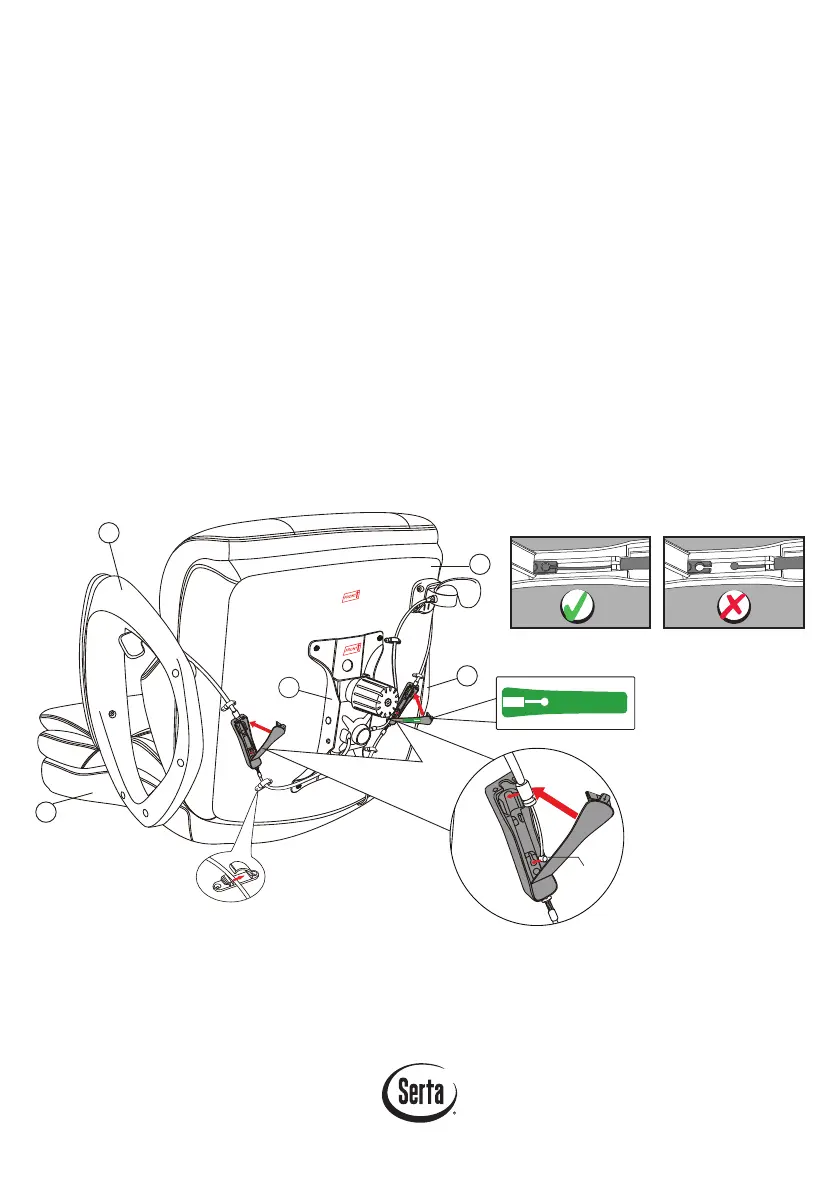

Lift the lids of the EZ cable connectors as shown. Insert the ends
of the arm cables into the grooves of the EZ cable connectors
and snap them into place as shown. Then close the lids.
Note: Connect the EZ cable connector of the back cushion to
the left arm cable, the seat plate to the right arm cable. Be
careful not to cross the cables. Finally fix the cables into the
plastic clips attached to the bottom of the seat cushion.
13
E1
E2
F
G
D
STEP 1 : L I FT LI D
STEP 2 : I NS E R T A R M CA B LE
STEP 3 : C L O SE L ID
S T E P 1: L IF T L ID
S T E P 2: IN S E RT A RM C AB L E
S T E P 3: CL O S E LI D
Lids/Tapas
EZ Cable/Cable EZ
Cable ends/
Puntas de cable
