Sertain S4540 - Wiring Configuration Diagrams

DO NOT USE CHAIR UNTIL YOU HAVE FULLY READ THE INSTRUCTIONS

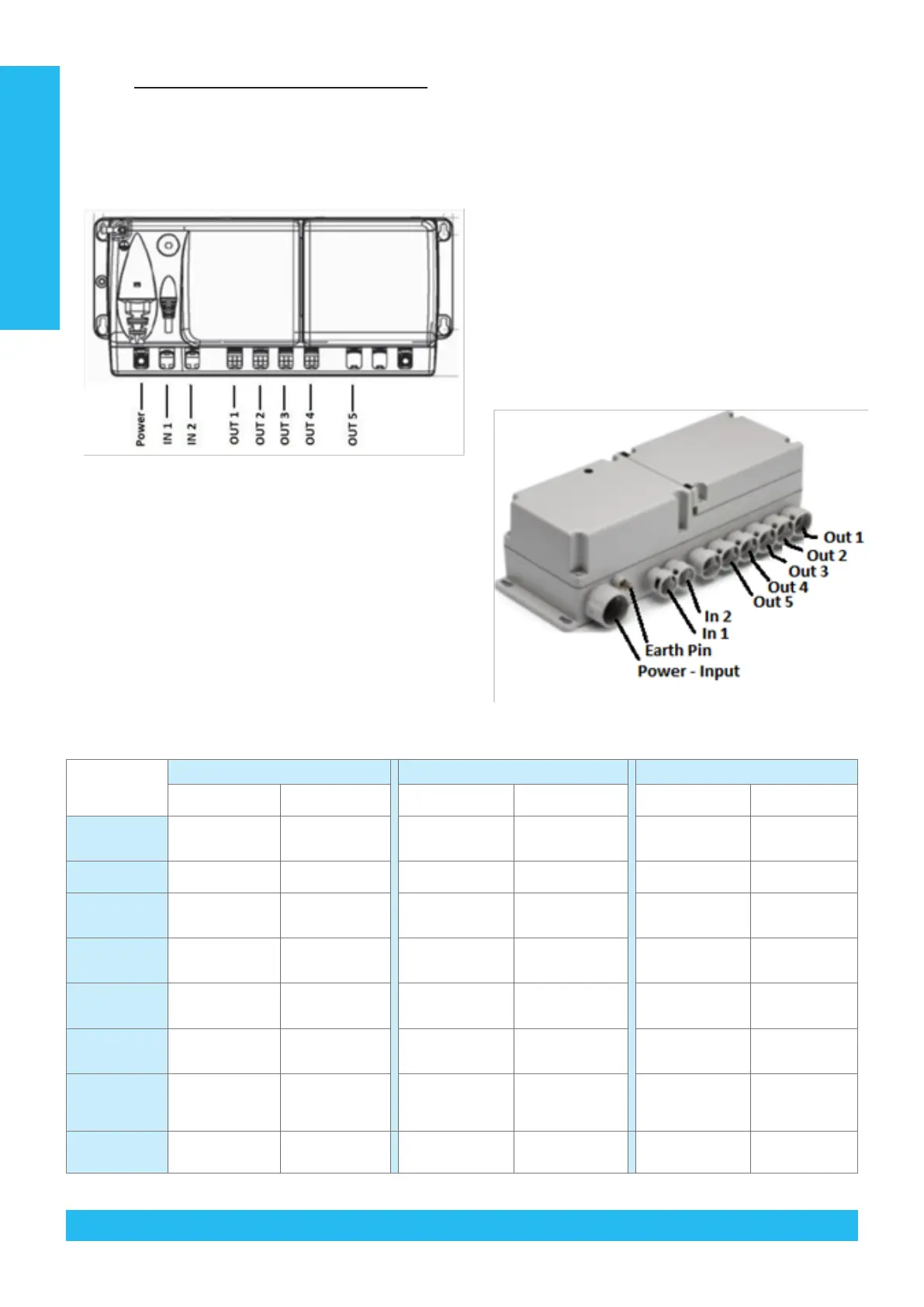

5.6 WIRING CONFIGURATION DIAGRAMS
Technical Data
5.6.2 C16 system
5.6.1 CU20 system
FUNCTION
SE4325 SE4400 STD SIZE SE4400 LARGE SIZE
ITEM DESCRIPTION ITEM DESCRIPTION ITEM DESCRIPTION
Power
CP2001000A01069 Control Power
Unit
CP2001000A01069 Control Power Unit HB8X135-00 Handset
IN 1
HB8X135-00 Handset HB8X135-00 Handset 0821008 Port Plug
IN 2
0821008 Port Plug 0821008 Port Plug
BL131HA11300A or
BL14HA11400A
HILO Column
OUT 1/CH 1
BL131HA11300A
or BL14HA11400A
HILO Column
BL131HA11300A or
BL14HA11400A
HILO Column
BL131HA11300A or
BL14HA11400A
HILO Column
OUT 2 /CH 2
31110H+101504K Backrest Actuator
– 150mm stroke
31110H+101504K Backrest Actuator
– 150mm stroke
31110H+101504K Backrest Actuator
– 150mm stroke
OUT 3/CH3
31110H+301004K Leg Rest Actuator
– 100mm spline
31110H+301004K Leg Rest Actuator –
100mm spline
31110H+301004K Leg Rest Actuator
– 100mm spline
OUT 4/CH 4
31120H+10050
04K(LAUS112092)
Seat Tilt Actuator
– 50mm stroke
31120H+1005004K
(LAUS112092)
Seat Tilt Actuator –
50mm stroke
31120H+1005004K
(LAUS112092
Seat Tilt Actuator
– 50mm stroke
OUT 5/CH 5
N/A N/A N/A N/A
18 © 2019Careleda M-03 WI-204rev 6 Edited 29.10.2019
