DO NOT USE CHAIR UNTIL YOU HAVE FULLY READ THE INSTRUCTIONS

3.6.4 Drop-arm / Procedure Arm - (Models with this feature)

First make sure that the brakes are applied and client/patient and

carer are safe and client is positioned safely, including limbs, clothing,

etc.

To lower armrest:

Type 2 – Move the lever in the desired direction i.e. Unlock – refer to

the label - See Figure 6.5 – and then push armrest down until it can go

no further.

To raise armrest:

Type 2 – Move the lever in the desired direction i.e. Unlock – refer to

the label - See Figure 6.5 – and then lift armrest up until the locking

mechanism automatically clicks into place. Test the arm to make sure

it is locked and cannot come out inadvertently.

Make sure armrest is securely fastened before leaving the chair.

3.6.3 Removable 2- Position Armrest – Style No.2 - (Models

with this feature)

First make sure that the brakes are applied and client/patient and

carer are safe and client is positioned safely, including limbs, clothing,

etc

To remove armrest - rst pull and hold the white release knob (see

arrow in Figure 6.3) and at the same time with the other hand swing

the armrest down. When the arm stops, let go of the release knob.

Then hold the armrest with both hands, lift it up slightly and then pull

out and away from the side of the chair.

To replace armrest – while holding the armrest with both hands,

line up the front and rear pivot points within the slots of the armrest

bracket. Slide the arm down into this slot as far as you can go, and

then rotate the armrest up towards the chair. The release pin at the

front of the retaining bracket should automatically allow the armrest

to move past it and then it will snap into the 2nd position location.

Pull and hold the white release knob and rotate the arm further

upward until the arm is in the 1st or standard position.

Make sure armrest is securely fastened before leaving the chair.

NOTE: FOR SAFETY REASONS THE ARMRESTS WILL NOT FOLD UNDER

THE CHAIR

Operating Instructions

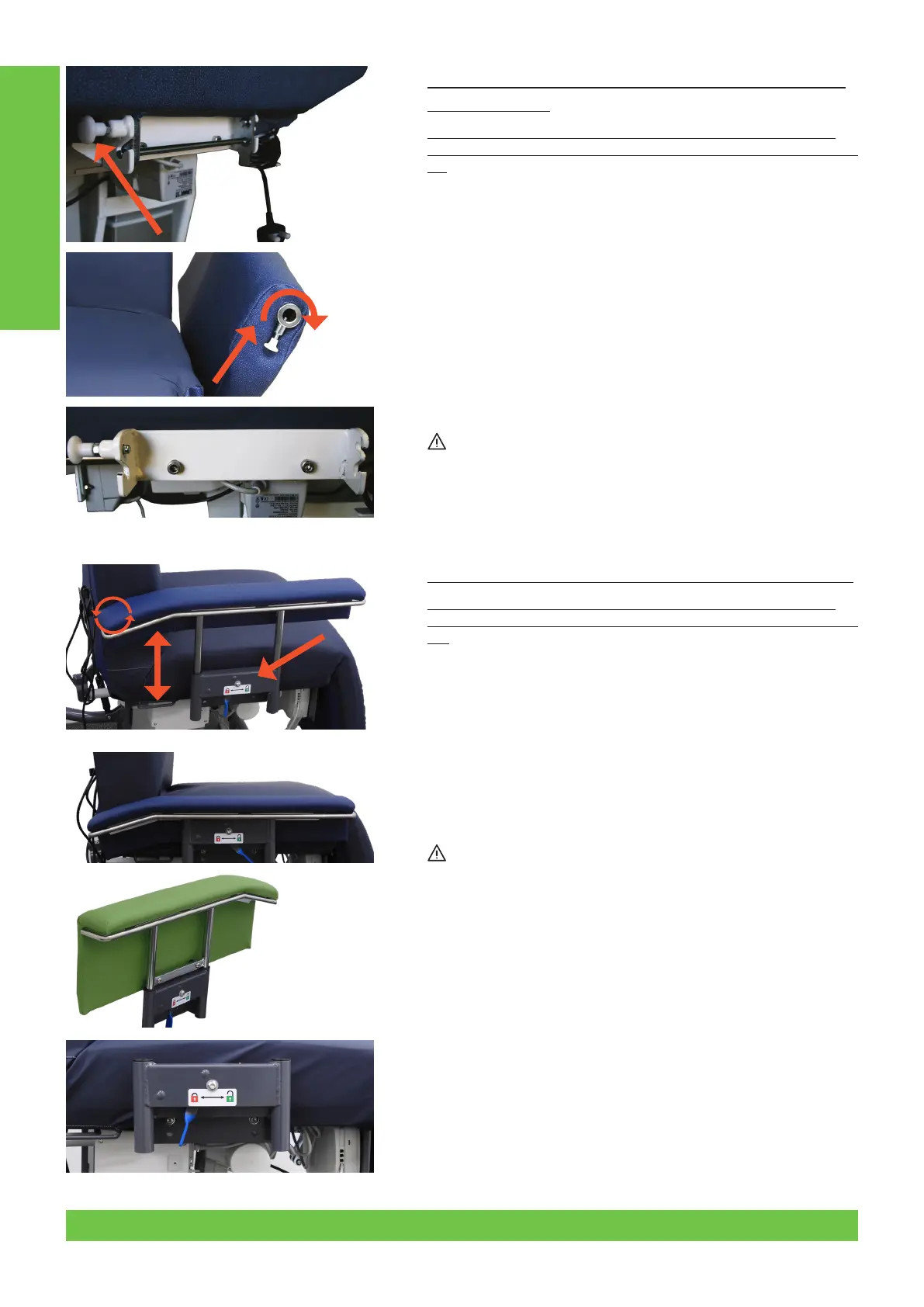

Figure 6.3

Figure 6.4

Procedure Arm

(lift o only)

Figure 6.5
