Encoder on Liberator Mic (SW_-1___).
Accessible through the plugged hole on the
lower rear of the SuperMic enclosure.
Encoder on Liberator handlebar unit (MW_-31).
Accessible via the large threaded Nylon screw on
the side of the unit.
SWA-1M2A/L
S0619197313666
16-7002
Waterproof
hole plug
28-0014
21-2600
Nylon machine screw
16-0002
Rubber Gasket
A penny or nickel can be
used to remove and replace
the nylon screw for access
to the encoder setting of the
handlebar unit.
The handlebar unit is shipped with a flathead
screwdriver. This tool is for syncing the
handlebar unit to the SuperMic at installation and
then given to the end user to allow matching of
equipment over the life of the system.
The waterproof plug and nylon screw must
each be installed in the SuperMic and
handlebar transmitter respectively while in
service. Not installing these items allows for
water incursion and may void the warranty.

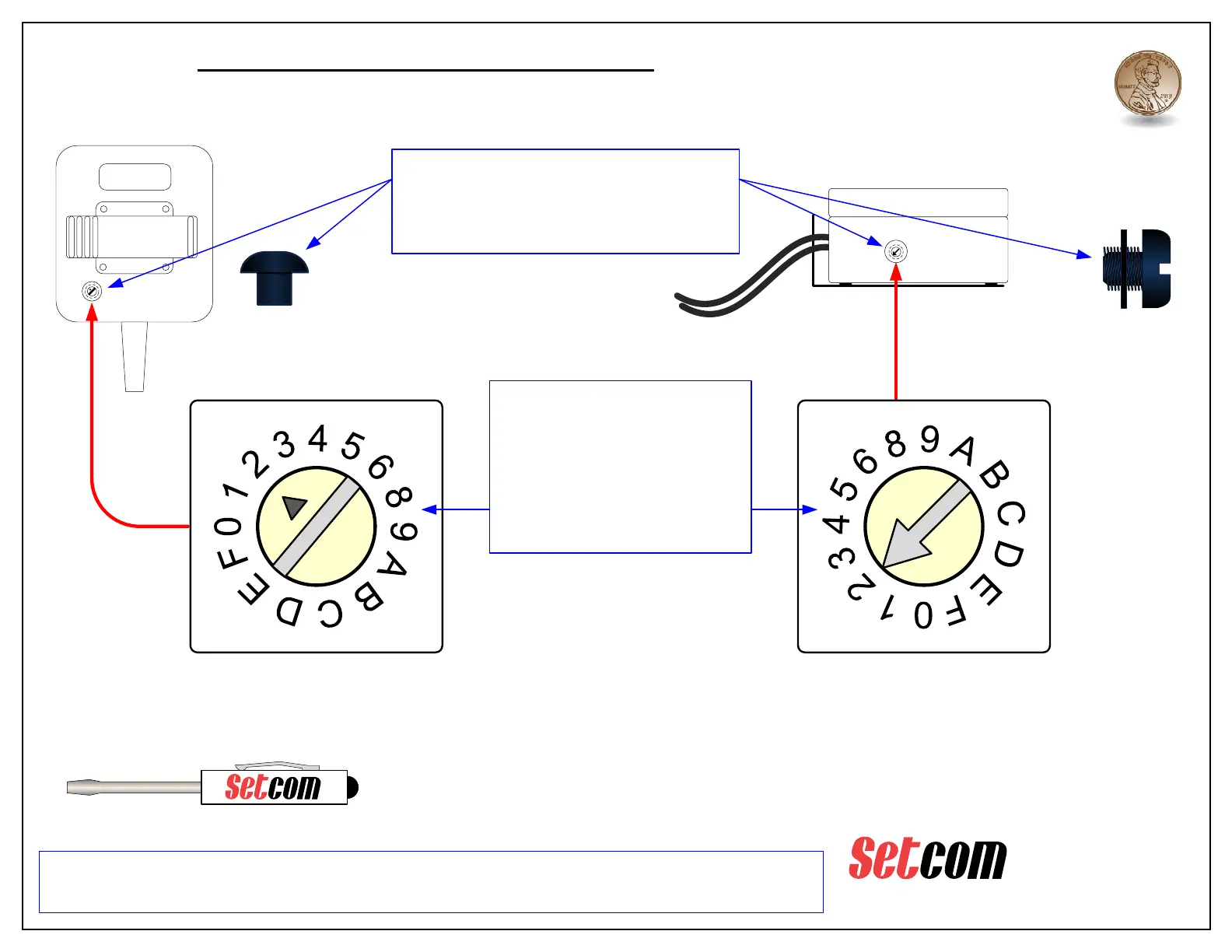

Portable-Only Wireless code-matching
Note the difference between
the two encoder dials.
The arrow indicators are
different as well as the
location of the codes.
SuperMic and Handlebar unit must also be on the same Code Block to match properly. Units are factory-set for Code Block
zero unless otherwise specified. A Code Block other than zero is indicated by an addition to the model number of the unit
(for example, MWH-31-C08 would indicate Code Block eight). Contact Setcom for more information.
www.setcomcorp.com
CORPORATION
®
Page of28
SuperMic
Handlebar Unit
* Supermic and Handlebar unit must have matching settings *
