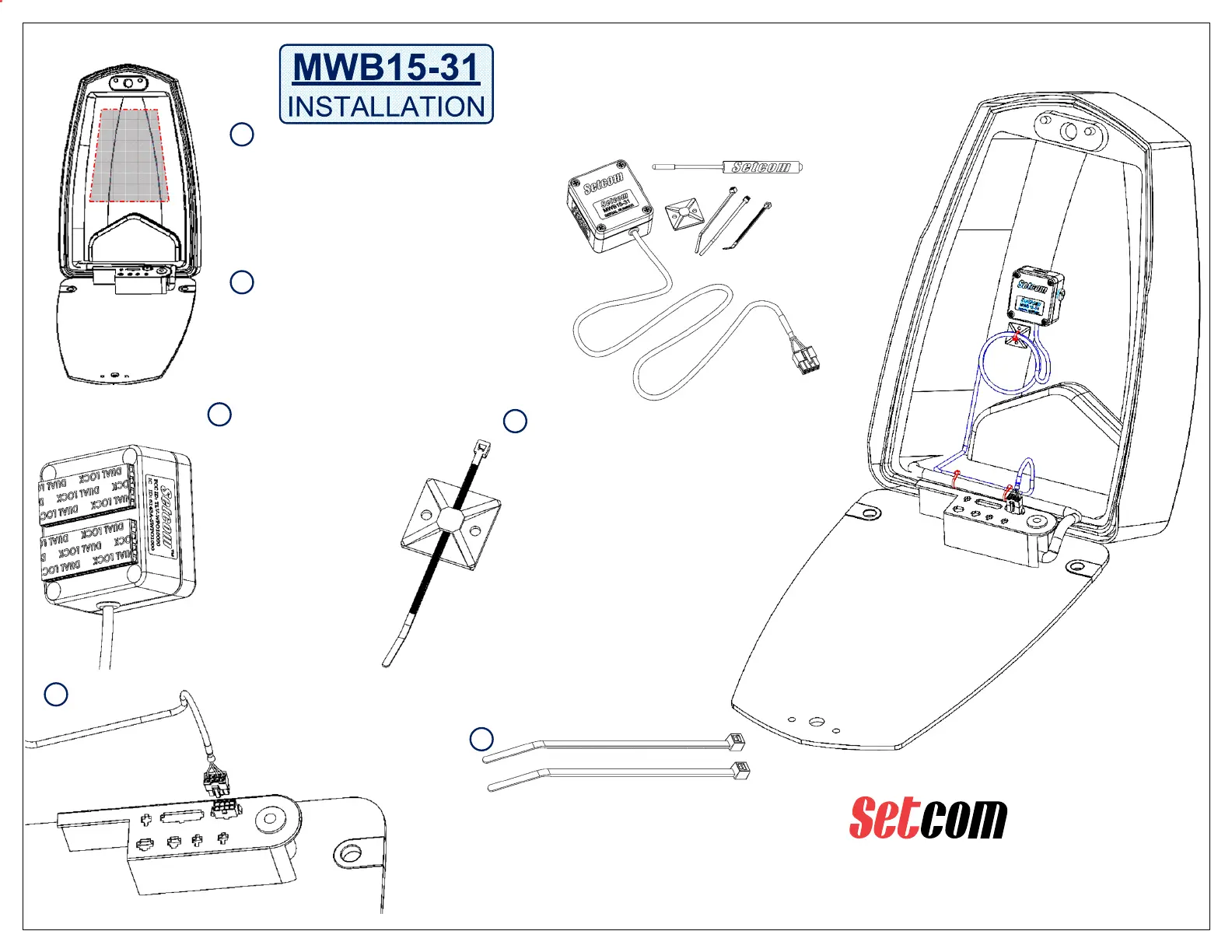

AN 18-6000 SELF ADHERING CABLE TIE BASE WILL BE
USED AS A SECURING POINT FOR EXCESS CABLE LENGTH.
CLEAN THE SURFACE OF THE RADIO CABINET LID WHERE
THE CABLE TIE BASE WILL BE APPLIED. RUBBING
ALCOHOL IS SUGGESTED. ALLOW AREA TO DRY.
PEEL THE LINER FROM THE ADHESIVE PAD OF THE CABLE
TIE BASE AND PRESS CABLE TIE BASE ONTO RADIO
CABINET LID.
INSERT A 16-0001 CABLE TIE THROUGH THE CABLE TIE
BASE. LOOSELY COIL UP THE SERVICE LOOP OF CABLE
AND BIND IT TO THE CABLE TIE BASE.
CLIP EXCESS TAIL OF THE CABLE TIE.
CLEAN THE SURFACE WHERE THE MWB15-31 WILL BE
MOUNTED…. RUBBING ALCOHOL (70% ISOPROPYL ALCOHOL)
IS HIGHLY RECOMMENDED
IT IS RECOMMENDED TO SET THE CODE FOR THE UNIT
BEFORE MOUNTING IT.
CHOOSE A POSITION IN THE SHADED AREA TO MOUNT THE
MWB15-31 TO THE INNER LID OF THE RADIO CABINET.
NOTE THAT THE CONTENTS OF THE RADIO CABINET MUST
ALLOW CLEARANCE FOR THE MWB15-31 WHEN CLOSING
THE RADIO CABINET.
MWB15-31 – QTY 1
PACKAGE INCLUDES:
28-0014 – QTY 1 - DRIVER FOR CODE MATCHING
18-6001 – QTY 3 - CABLE TIES, 4"
18-6000 – QTY 1 – CABLE TIE BASE, SELF ADHESIVE
TWO SETS OF 3M DUAL LOCK HAVE
BEEN PRE-INSTALLED ONTO THE
REAR OF THE MWB15-31.
ONCE THE SELECTED AREA HAS
BEEN CLEANED AND DRIED, PEEL
THE THIN LINERS FROM THE DUAL
LOCK AND PLACE MWB15-31 UNIT
INTO POSITION ON THE RADIO
CABINET LID.
APPLY TO SURFACE WITH FIRM
EVEN PRESSURE.
1
2
3
4
5
10/26/2018 MCS
USE THE REMAINING TWO CABLE TIES TO SECURE
THE CABLE RUN TO THE EXISTING HARNESS.
BE SURE TO ALLOW ENOUGH SLACK SO THAT THE
RADIO CABINET CAN FULLY OPEN AS WELL AS CLOSE
COMPLETELY WITHOUT CAUSING ANY DAMAGE TO
THE CABLE OR CONNECTOR ASSEMBLY.
6
CONNECT THE 8-PIN CONNECTOR
TO HEADER #6
HELMET HEADSET INTERFACE
