MWH-31 Installation

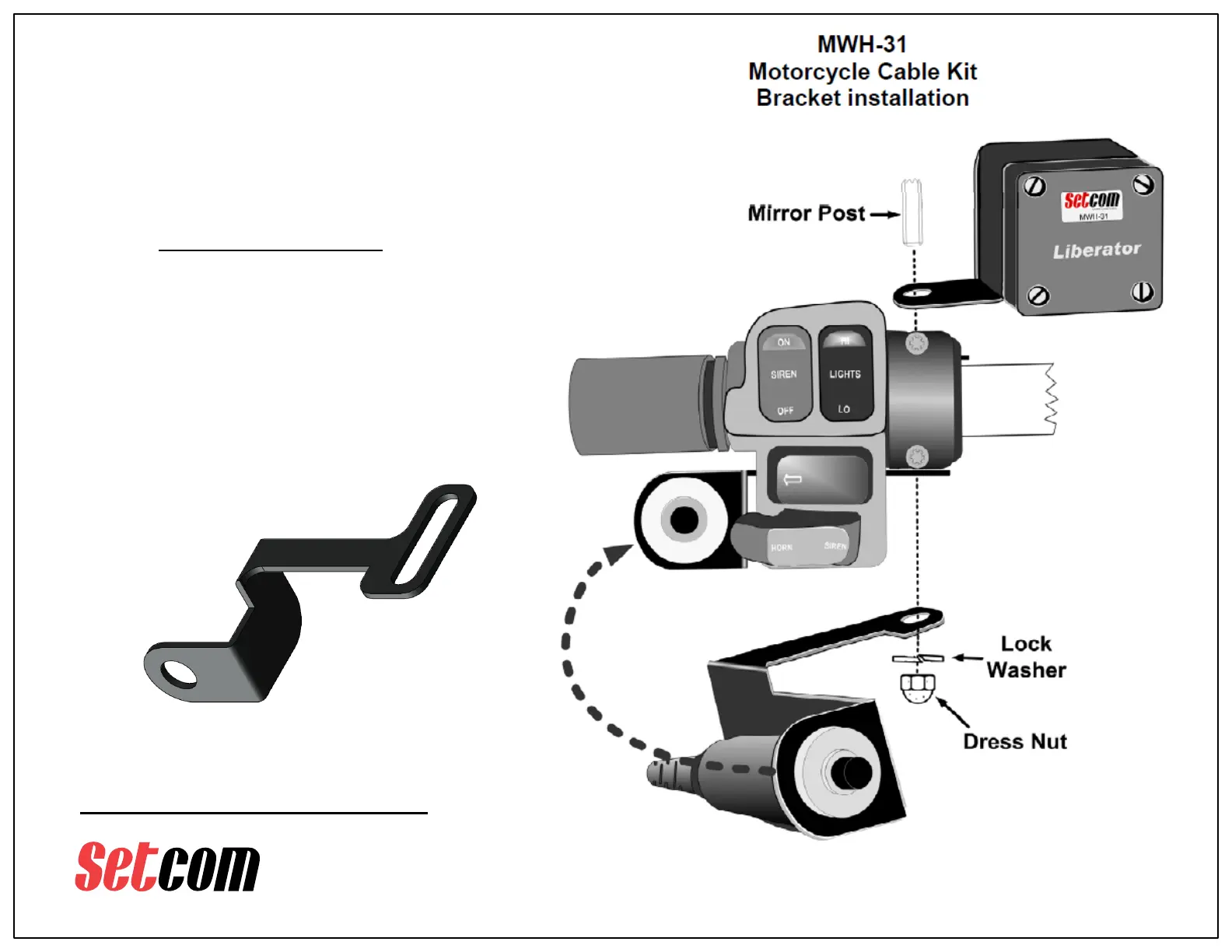

PTT Assembly mounted on
14-0048 bracket (see pg. 3)
TX Unit mounted on
14-0085 bracket
For Harley-Davidson motorcycles the installation
uses the left mirror post as the mounting location.
The most recent version of 14-0048
bracket is shown here. It has been
updated with a sliding slot for
mounting, to allow more flexibility in
positioning the PTT Assembly.
(older version of PTT bracket
shown in this diagram)
