MWU-31 (D13) Installation

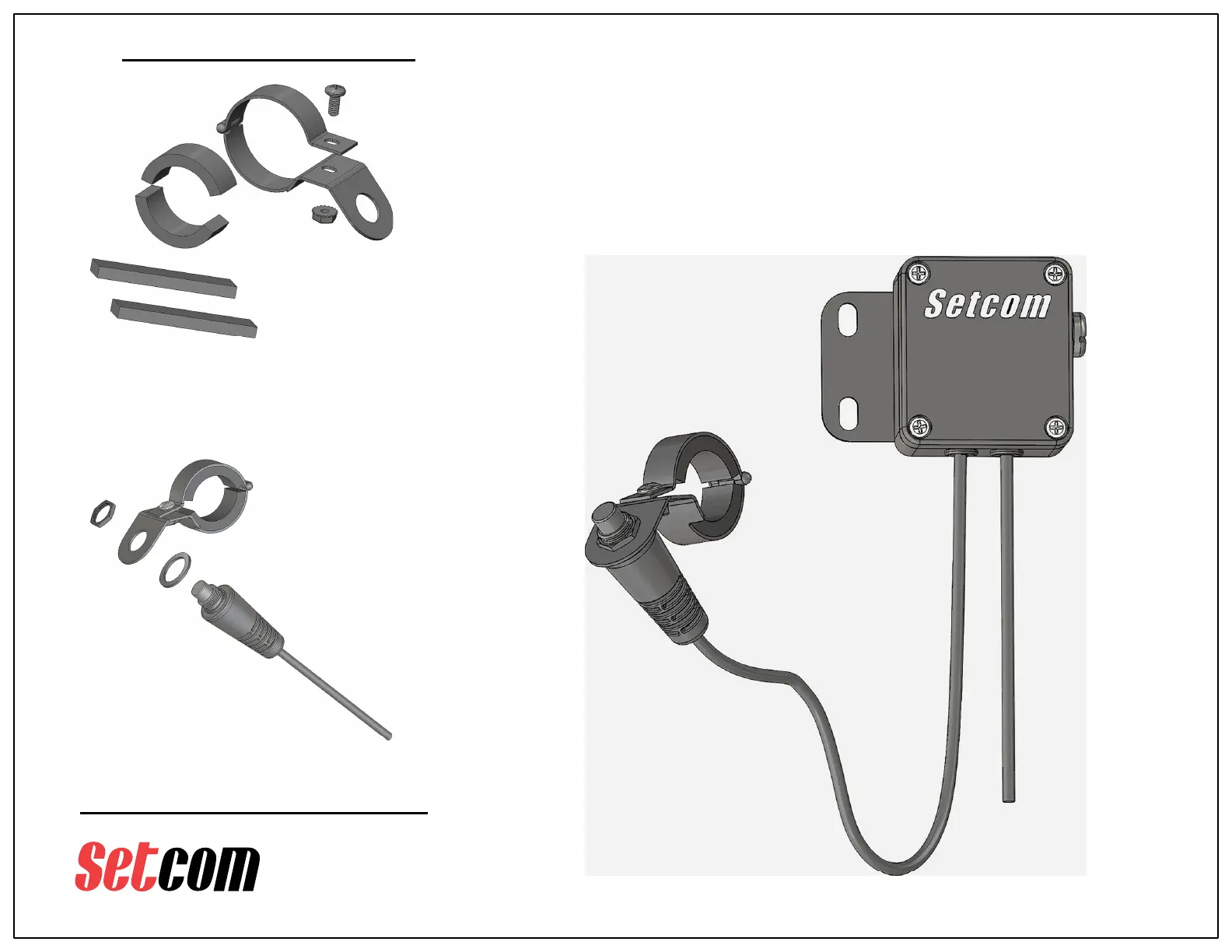

14-0083 Universal Bracket for .500" switch
Shown with HDWR 130 Universal Bracket hardware
kit including hard rubber inserts to accommodate
various diameters of mounting locations
Mounting Pushbutton PTT switch
to Universal Bracket (recommend
use of non-marring tool)
The MWU-31 (D13) is for semi-custom installations where
standardized brackets may not be applicable.
The Transmitter Unit is to be mounted in a convenient accessible
location on the handlebar assembly or fairing.
The Pushbutton PTT switch assembly is to be installed on the left
side grip. The inserts provided allow fitment to a variety of grip
diameters.
Transmitter Unit mounted
on 14-0076 Bracket
Pushbutton
PTT Switch
DC Power
Cable
