14

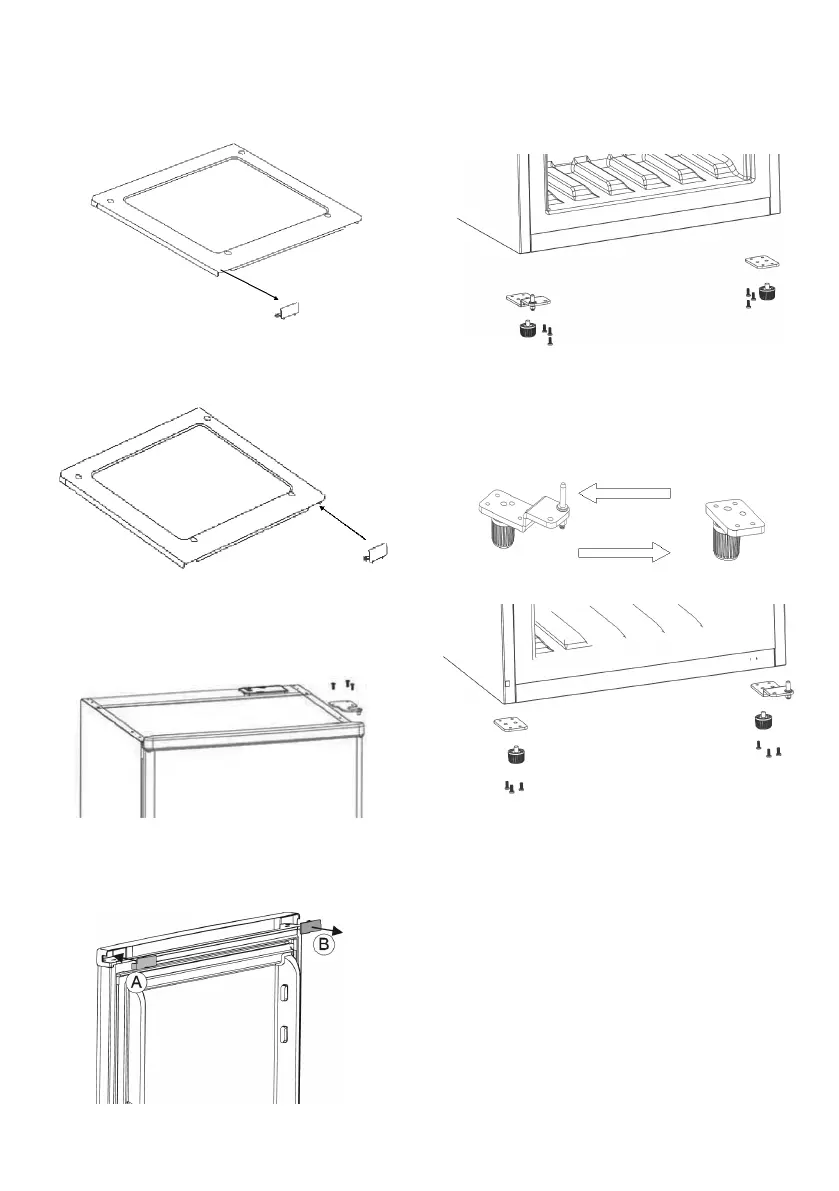

3. Remove the small panel from the front of the top cover.
4. Reposition the small panel on the other side of the cover.
5. Take off the upper hinge by removing the 3 screws. Take
off the door and place it also on a soft, non-damaging
surface to protect it against scratching.
6. Remove the hinge cover B from the inside of the door and
install the hinge cover A provided into the hinge opening
on the other side of the door.
7. Remove both adjustable feet and the screws holding the
lower hinge and the foot mounting.
8. Remove the lower hinge. Unscrew the hinge pin and
reposition it in the other opening in the hinge. Now fi t
the lower hinge and the foot mounting on the respective
opposite sides. Fit the two adjustable feet. Place the door
onto the lower-hinge pin.
