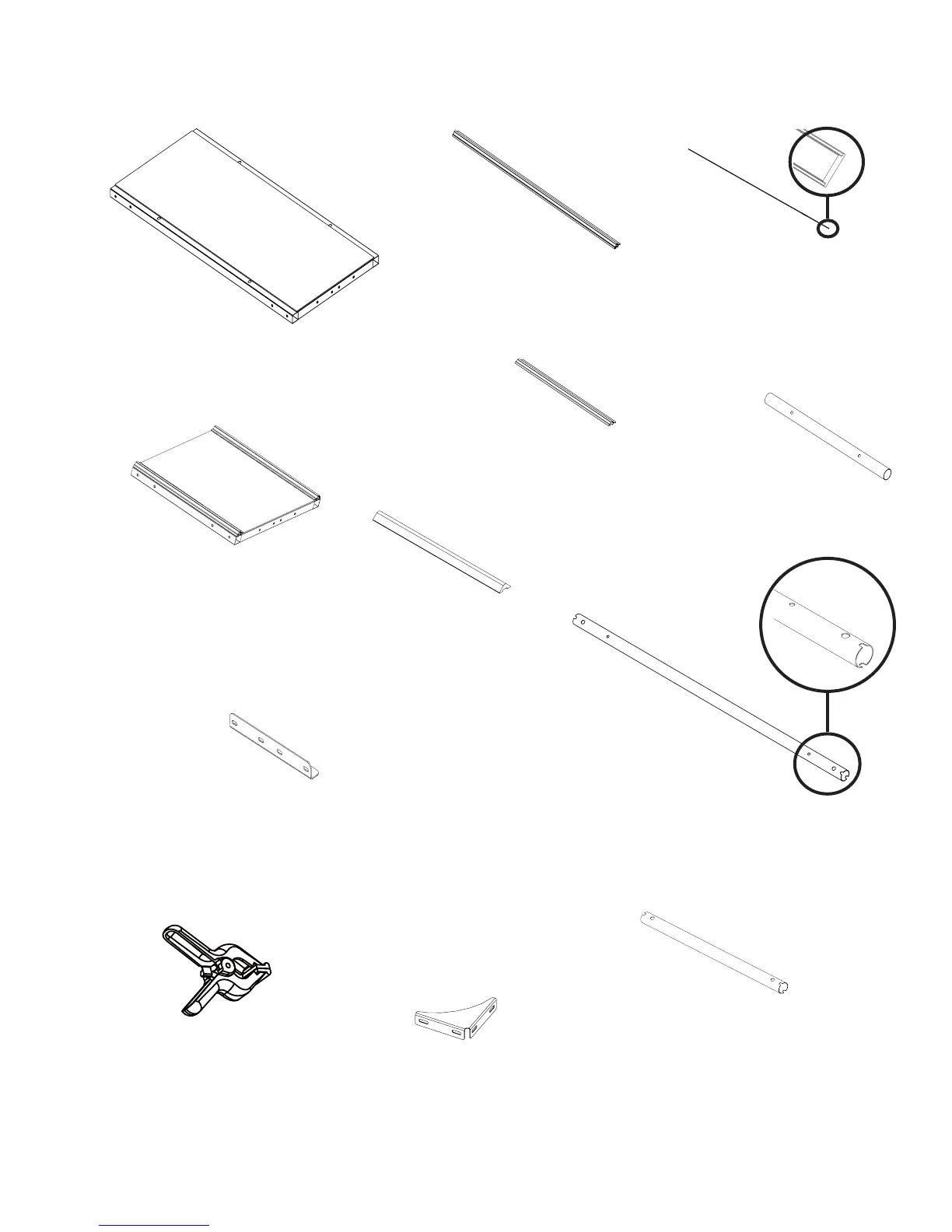

2 King Quilter Frame Assembly

Table Splice Brace (4)

Part# QF09318-05

BOX3

Four Foot Table Section

(3) For 12’ frame,

(2) for 10’ Frame

Part# QF00007-301

BOX 1 & 4

Track Support Coupler (4)

Part# QF09318-03

BOX 3

Bungee Clamp (4)

Part# QF09318-110

BOX 3

4-foot Pole Section

Fifteen come with 12’ frame and ten come with

10’ frame.

Part# QF0007-701

BOX 2 & 4

2-Foot Coupler (10)

Part# QF09318-702

BOX 2

Front Gusset Bracket (2)

Part# QF00007-413

BOX 3

12-foot Black Plastic Track (4)

Part# QF09318-04

BOX 3

4 Foot Track Support Section

(6) For 12’ frame, (4) for 10’ frame

Part# QF09318-02

BOX 1 & 4

SMP QF00007-12 and QF00007-10 Frame Parts List

Two Foot Table Section (1) with

10’ Frame Only

Part# QF00007-302

BOX 4

2-foot Pole Section

Five come with 10’ frame only,

None come with 12’ frame

Part# QF0007-703

BOX 4

2 Foot Track Support Section

(2) For 10’ frame only, (0) come with 12’ Frame

Part# QF09318-02

BOX 4

Leaders - No Image

11’ Leaders for 12’ Frame (1)

Part# QF09580

or

9.5’ Leaders for 10’ Frame (1)

Part# QF09851

BOX 4
