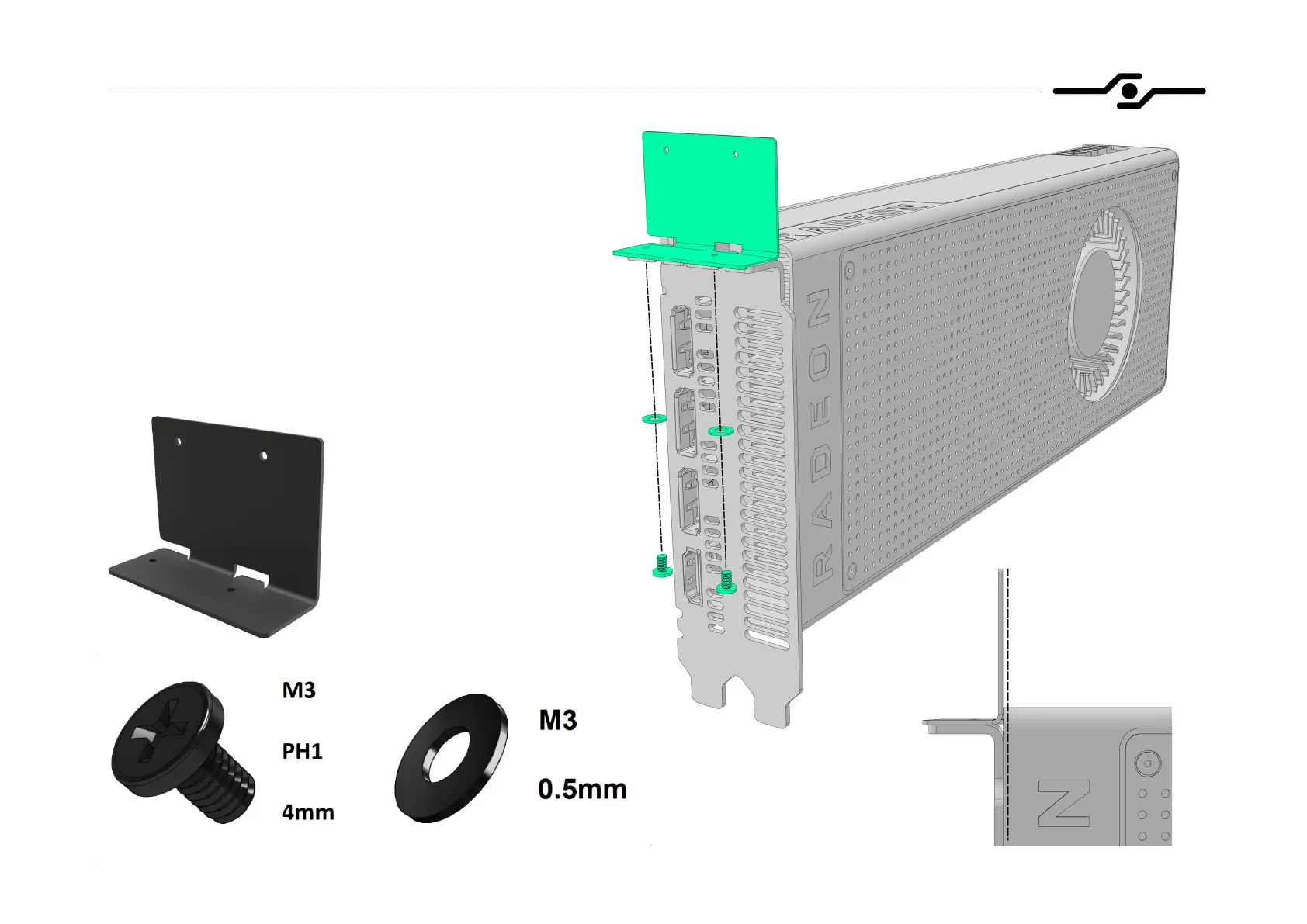

12. Installing the GPU – GPU bracket
- before installing the GPU, you need to attach the
GPU bracket to the GPU like shown in the picture
- put a washer under the bolt that holds the GPU
bracket
- screw down the GPU to the GPU bracket
- make sure that the back of the GPU bracket is
aligned to the GPU’s PCI bracket
