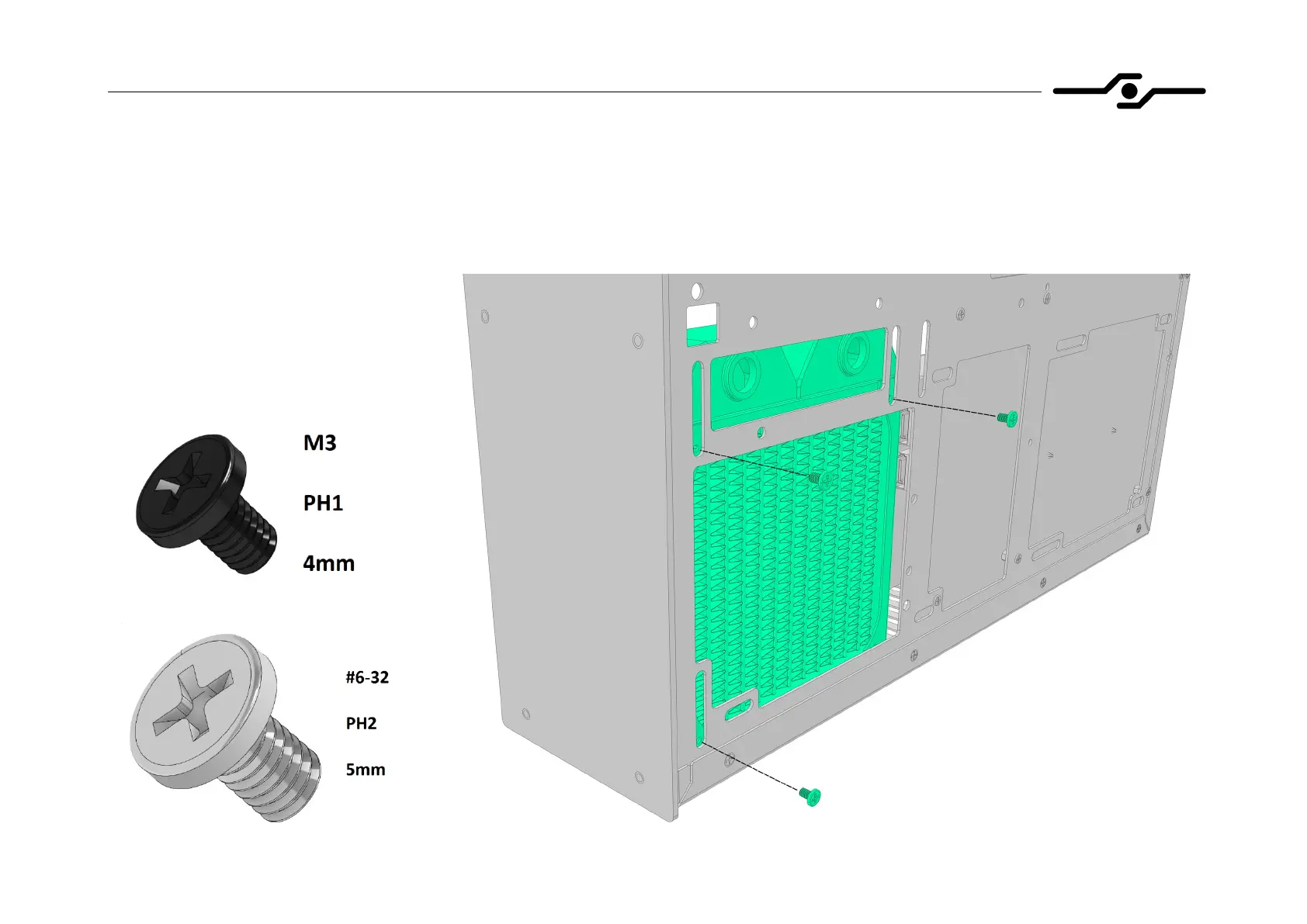

29. Installing the water-cooling radiator – 120 mm radiator
- optionally, you can install water-cooling radiator in the position otherwise occupied by hard drives
- place the radiator in the position shown in the picture, and screw it to the case using three provided bolts
- depending on the threads on your radiator, use either provided M3 or #6-32 bolts
- you can mount a 140 mm radiator in the same fashion
