38. Alternative PSU mount – PSU bracket
- for configurations that require ATX motherboard with water-cooling
radiator larger than 140 mm it is possible to side mount 240 or 280
mm radiator
- this configuration requires mounting GPU to the upper position and
SFX power supply in alternative position in front of ATX
motherboard

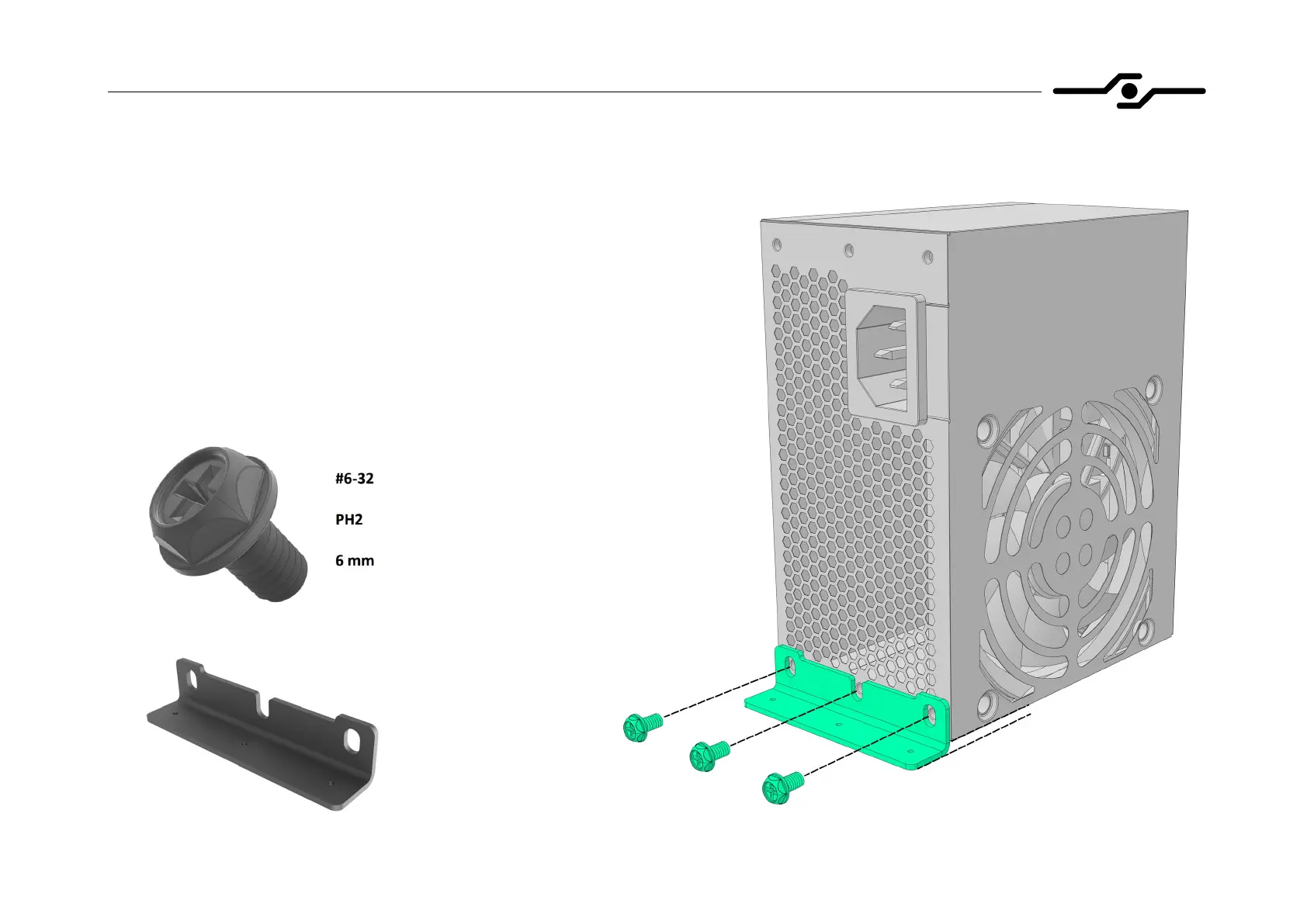

- to mount power supply to that position you need to use alternative
PSU bracket provided in the kit
- screw down the PSU to the bracket using three bolts provided with
you PSU and make sure that the bottom of the PSU is around 3
mm higher than the bottom of the bracket
