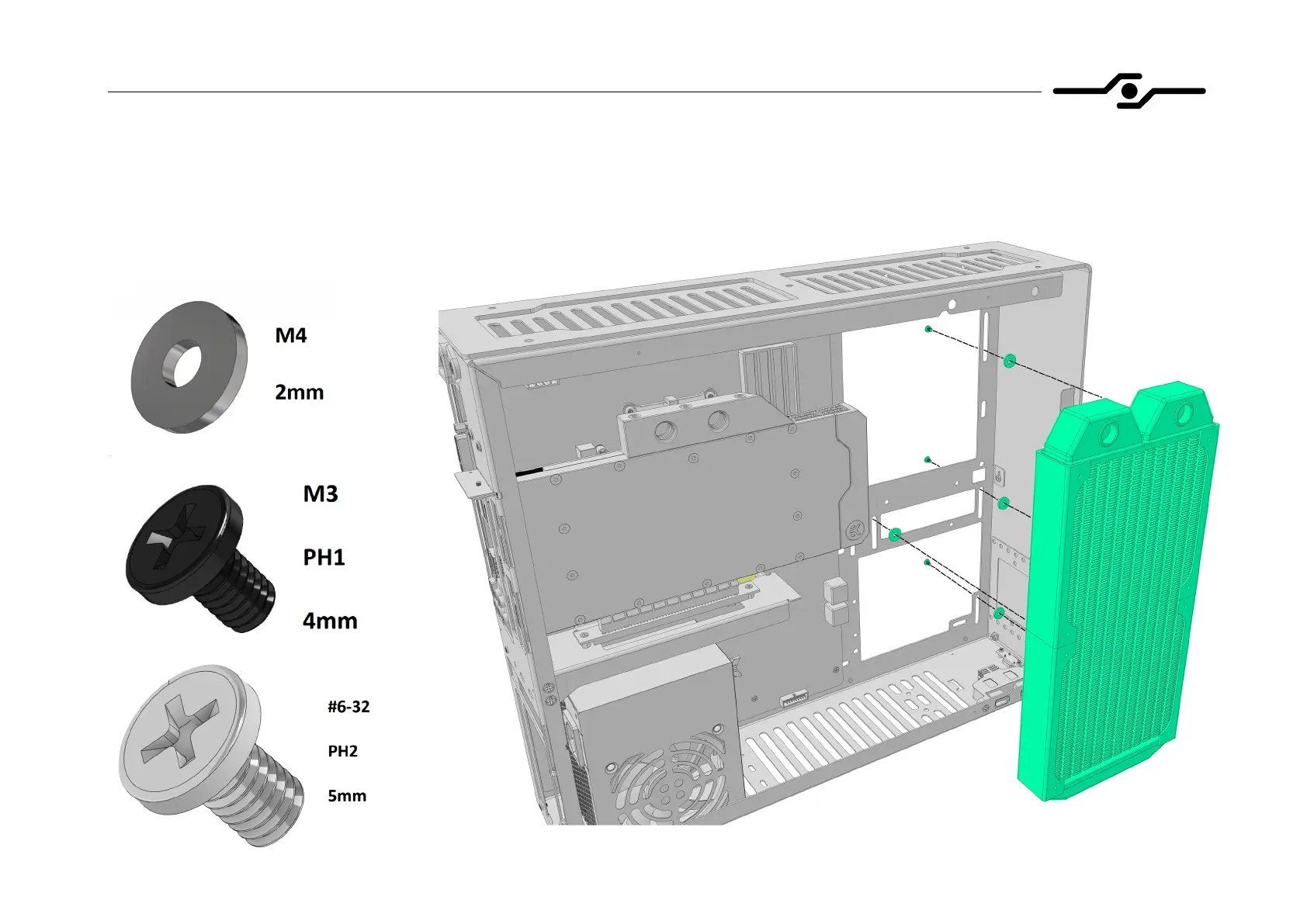

41. Side mounted radiator – installation
- place a 240 or 280 mm radiator in the position shown in the picture and screw it to the case using four provided bolts
- depending on the threads on your radiator, use either provided M3 or #6-32 bolts
- make sure that you insert 2 mm thick washers provided in the kit between the radiator and the case as they will allow the clearance for the
side panel’s tab
