I. Overall Appearance
1
、Power Box
：Electrical components, control panel, housing etc.
2、Work Head Part：Spindle, Magnetic Base etc.
II. Functions and Features
1. EDM-8C abides by the principle of spark erosion to remove broken
tools, no direct contact, thus, no external force and damage to the work
pieces.
2. Excellent Structure: it is convenient to carry due to small size and light
weight, and shows its special superiority for large work pieces. Working head
is separated from the machine and could rotate in any direction, which is
helpful for complex machining.
3. Convenient operation: The magnetic base can be adsorbed to the work
piece for processing, which is convenient for clamping and operation.
4. Accurate Positioning: Alligator clamp can be installed on desktop
workbench or aluminum workbench, which is convenient for fast clamping
and precise positioning, and is suitable for batch processing.
5. Easy Maintenance: MCU Controller and Function Modularization are
utilized to guarantee stable performance and easy maintenance.
6. Economical and Convenient: The working liquid is ordinary tap water;
power consumption is moderate; the inlet pipe is detachable.
7. Wide Processing Range: broken taps and drills (conductive material)
above Ø2mm (Ø2mm is included).
8. Long Working Hours: a cooling fan installed ensures the ventilation,
which keeps the machine working continuously.
III. Components of EDM
Working part: power box, operation panel, work head, water pump,
magnetic base.
Power box: The power box of EDM-8C is portable designing unit. The
carrying handle on the top of power box is good for carrying.
Assist devices: power cable, high-frequency cable, servo cable, water
pipe, magnetic external water supply pipe, electrode chuck, adapter sleeve,
etc.
Consumptive materials: brass rod, hexagonal
electrode, brass
sheet.

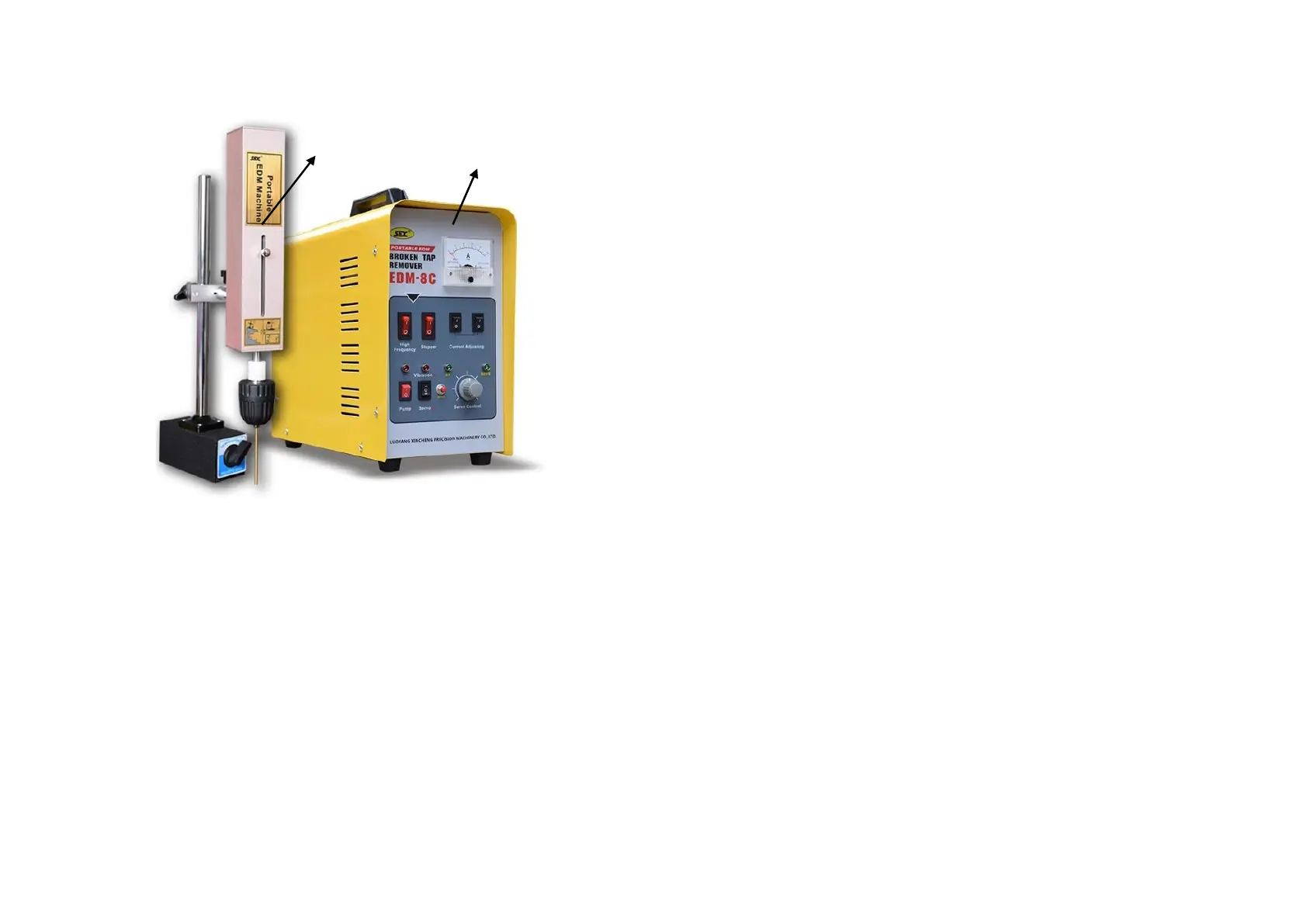

Figure 1: Overall Appearance
