XII. Schematic diagram of EDM processing method
Portable EDM machine has a magnetic base and a cross stand to support
the head, it can be placed at any position and adjust the processing direction
comprehensively. It can be applied on any size of work-piece.

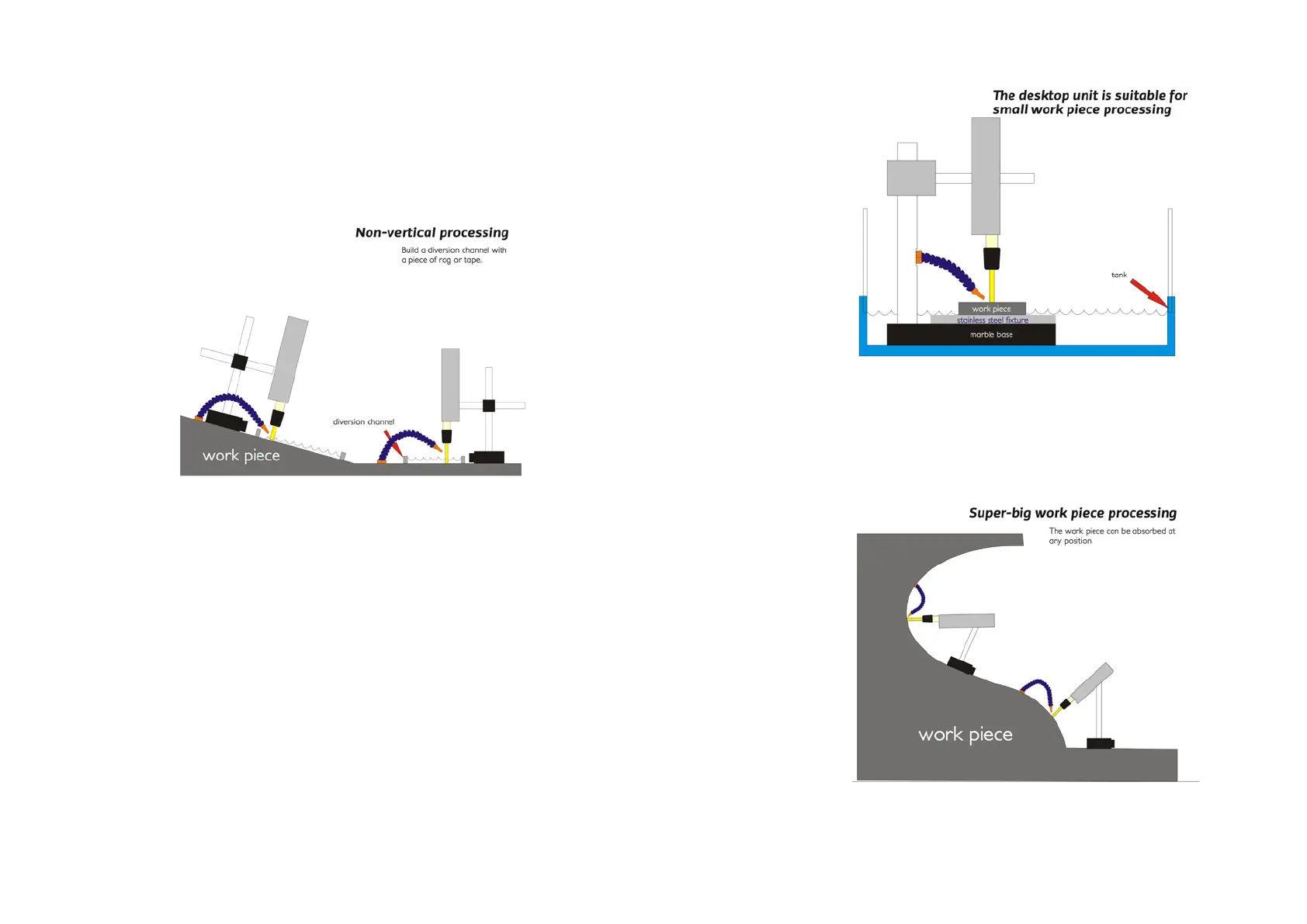

Here are the schematic diagrams of processing methods:
Vertical processing on big work piece. Adsorb the base directly on the
work piece
, and build a diversion channel under the work head to drain
coolant outside.
Choose desktop unit to fix the work-piece. It could process small
work piece. Put the desktop unit into the tank to avoid the coolant
losing.
Super-big work piece can be absorbed on directly, and the head
position is adjustable.
