MAINTENANCE
IMPORTANT:
1. The Lid Stay incorporates a safety device in the form of a fusible link,
which closes the lid in the event of fire. The link is non-resetting and
must be replaced should it be activated.
2. Clean the pump filter regularly, by sliding it away from the pump hous-
ing and rinsing it in clean degreaser.
3. Do not allow the level of liquid in the parts washer to fall below the
pump inlet, as damage to the pump can result.

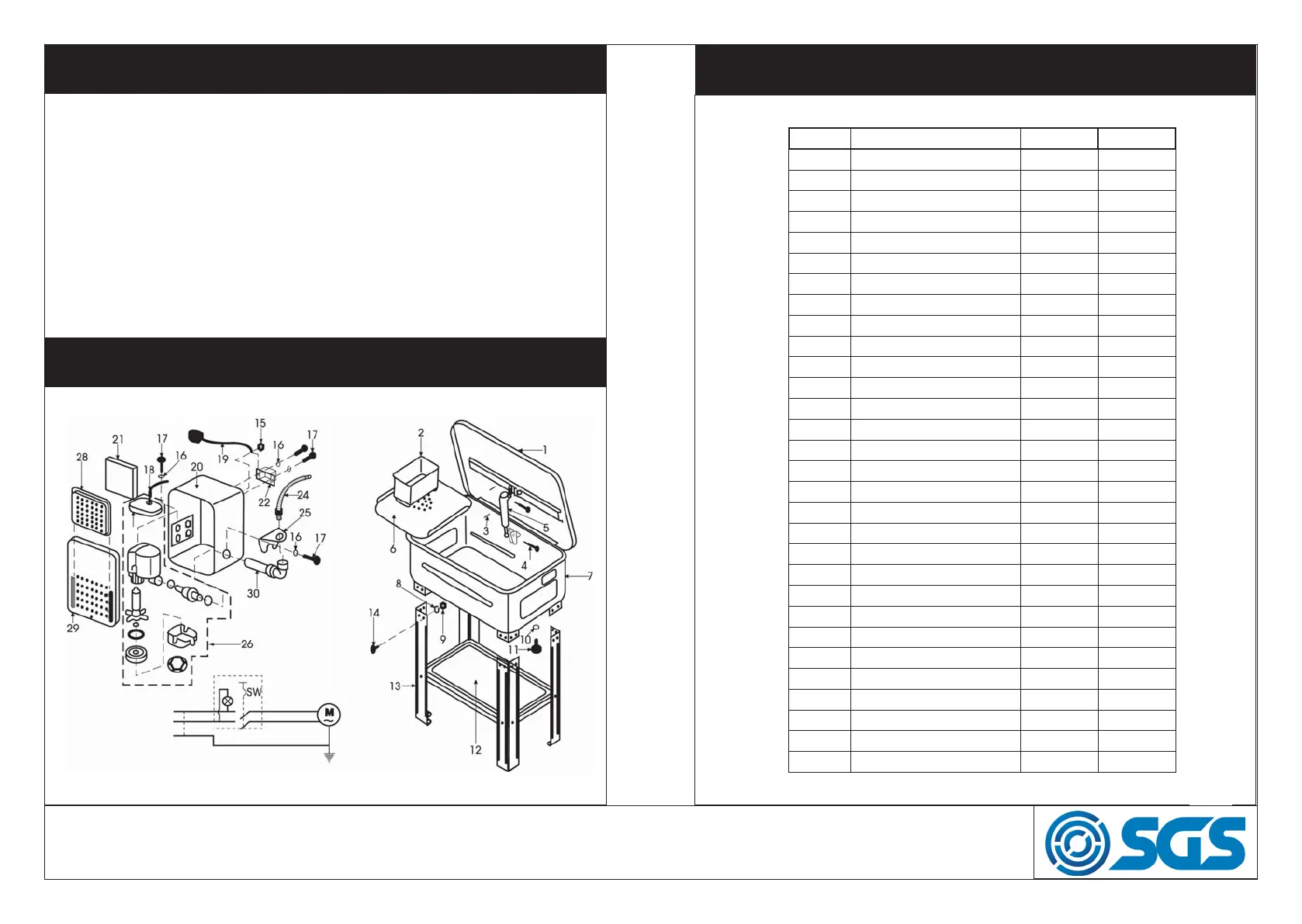

PARTS DIAGRAM
PARTS LIST
No. DESCRIPTION QTY Part No
1 COVER 1 902026
2 BASKET 1 902027
3 SPRING PAN 4 902028
4 PIN 4 902029
5 SAFETY PLATE 1 902030
6 WORK SHELF 1 902031
7 BODY 1 902032
8 SPRING WASHER 24 902033
9 HEX NUT 24 902034
10 0-RING 1 902035
11 PLUG 1 902036
12 SHELF 1 902037
13 LEG 4 902038
14 M16X12 SCREWS 24 902039
15 HEX NUT 5 902040
16 SPRING WASHER 5 902041
17 SCREW 5 902042
18 STRAIN RELIEF 2 902043
19 CABLE AND PLUG 1 902044
20 PUMP HOUSING 1 902045
21 FILTER SCREEN 1 902046
22 SWITCH 1 902047
23 SWITCH BOX 1 902048
24 FLEXIBLE PIPE 1 902049
25 ELBOW SEAT 1 902050
26 PUMP BODY 1 902051
27 PUMP BACK COVER 1 902052
28 FILTER COVER 2 902053
29 PUMP HOUSING 1 902054
30 ELBOW 1 902055
