Sharkline S-Pool - Page 3

7
6
5
3
2
8
9
10
11
7
GENERAL INSTRUCTIONS – ROUND POOLS
1
12
SCREW 10X1/2 18-8 A PHILHEX WASHER HEAD
(May not be shown)
4
METAL UPRIGHT (FOR 54’’ TALL POOL)
1
2
11
3
4
5
6
12
7
10
9
8
01

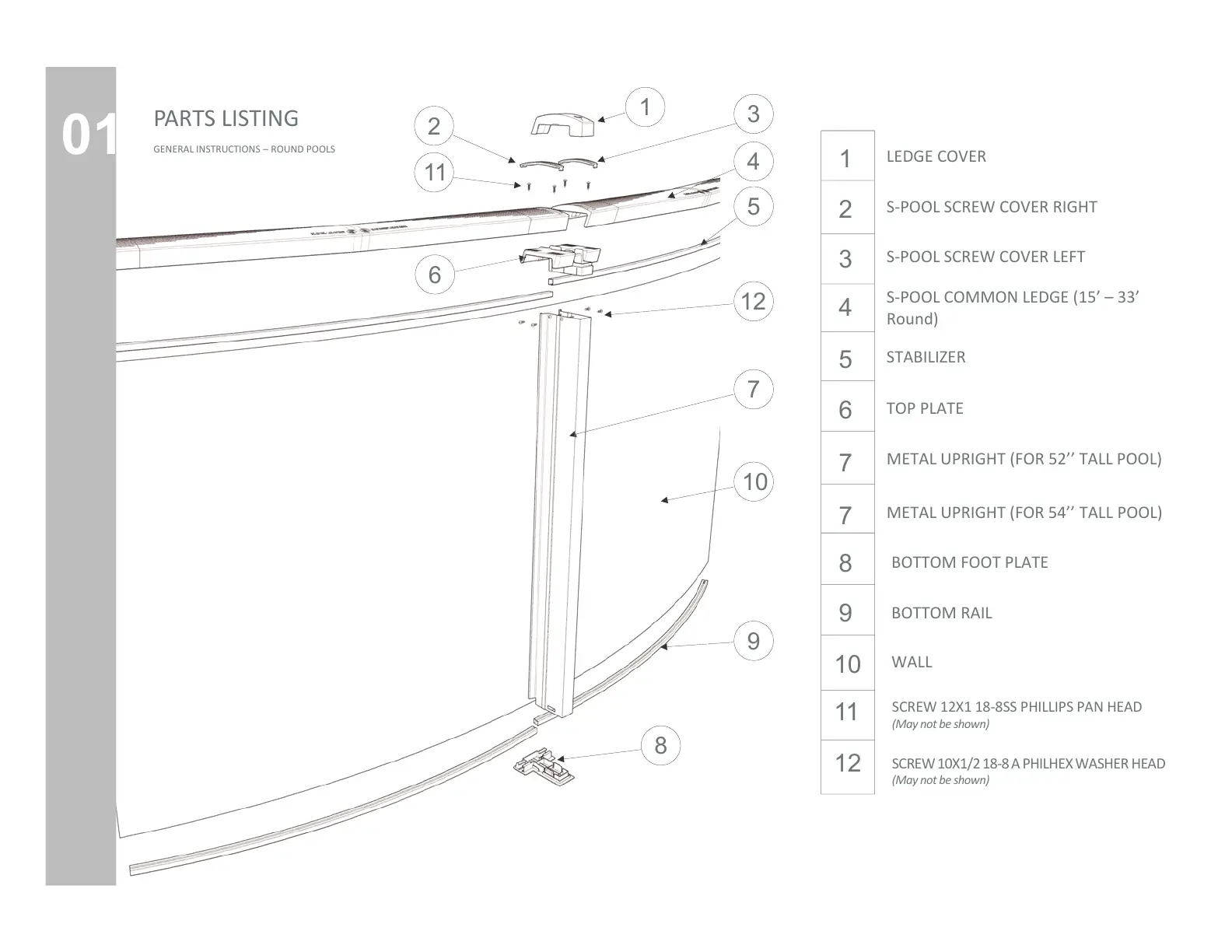

PARTS LISTING
S-POOL COMMON LEDGE (15’ – 33’
Round)
LEDGE COVER
S-POOL SCREW COVER RIGHT
S-POOL SCREW COVER LEFT
BOTTOM FOOT PLATE
BOTTOM RAIL
WALL
SCREW 12X1 18-8SS PHILLIPS PAN HEAD
(May not be shown)
STABILIZER
TOP PLATE
METAL UPRIGHT (FOR 52’’ TALL POOL)
