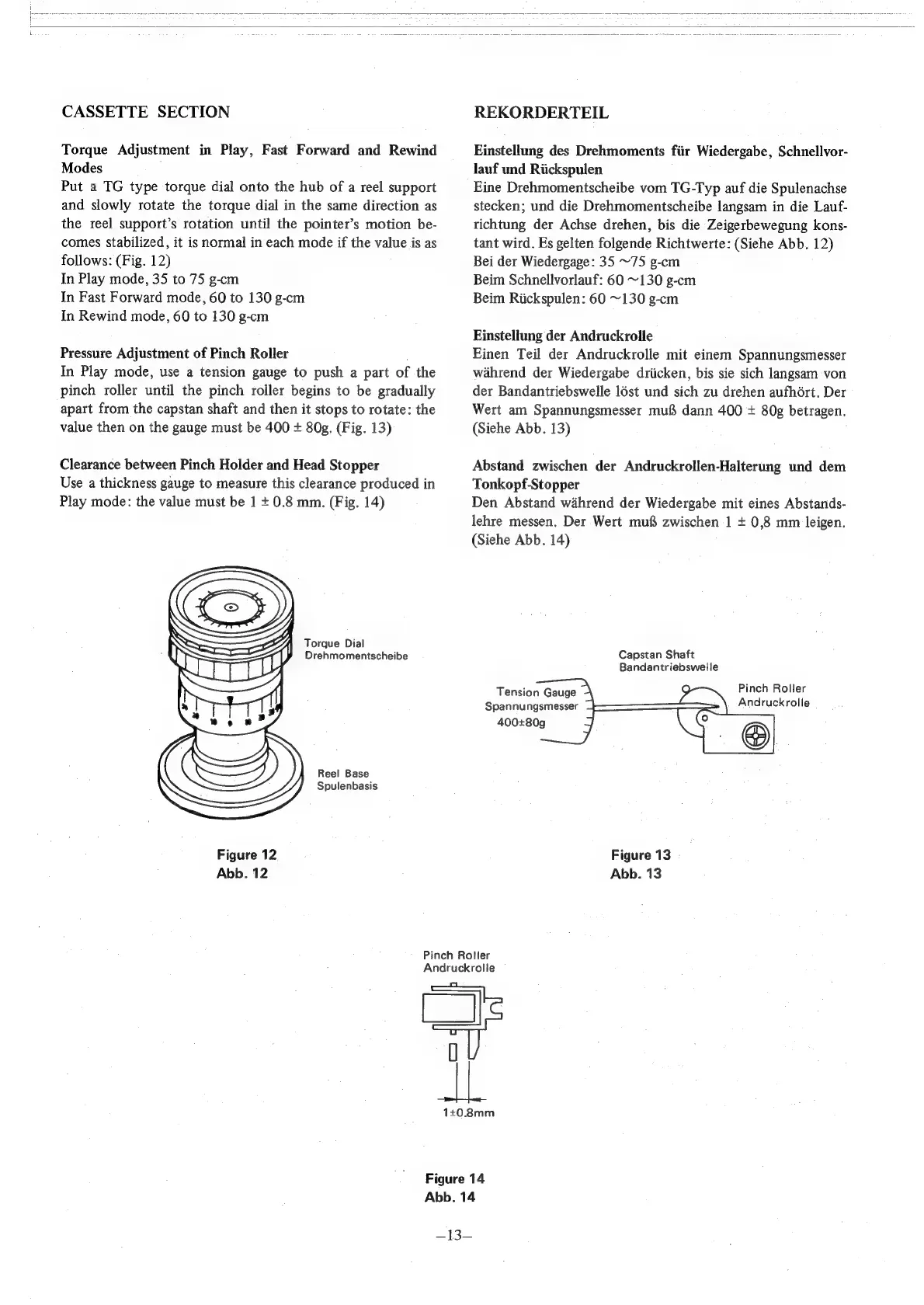

CASSETTE
SECTION
Torque
Adjustment
in
Play,
Fast
Forward
and
Rewind
Modes
Put
a
TG
type
torque
dial
onto
the
hub
of
a
reel
support
and
slowly
rotate
the
torque
dial
in
the
same
direction
as
the
reel
support’s
rotation
until
the
pointer’s
motion
be-
comes
stabilized,
it
is
normal
in
each
mode
if
the
value
is
as
follows:
(Fig.
12)
In
Play
mode,
35
to
75
g-cm
In
Fast
Forward
mode,
60
to
130
g-cm
In
Rewind
mode,
60
to
130
g-cm
Pressure
Adjustment
of
Pinch
Roller
In
Play
mode,
use
a
tension
gauge
to
push
a
part
of
the
pinch
roller
until
the
pinch
roller
begins
to
be
gradually
apart
from
the
capstan
shaft
and
then
it
stops
to
rotate:
the
value
then
on
the
gauge
must
be
400
+
80g.
(Fig.
13)
Clearance
between
Pinch
Holder
and
Head
Stopper
Use
a
thickness
gauge
to
measure
this
clearance
produced
in
Play
mode:
the
value
must
be
1
+
0.8
mm.
(Fig.
14)
Torque
Dial
Drehmomentscheibe
Reel
Base
Spulenbasis
Figure
12
Abb.
12
REKORDERTEIL
Einstellung
des
Drehmoments
fiir
Wiedergabe,
Schnellvor-
lauf
und
Riickspulen
Eine
Drehmomentscheibe
vom
TG-Typ
auf
die
Spulenachse
stecken;
und
die
Drehmomentscheibe
langsam
in
die
Lauf-
richtung
der
Achse
drehen,
bis
die
Zeigerbewegung
kons-
tant
wird.
Es
gelten
folgende
Richtwerte:
(Siehe
Abb.
12)
Bei
der
Wiedergage:
35
~75
g-cm
Beim
Schnellvorlauf:
60
~130
g-cm
Beim
Riickspulen:
60
~130
g-cm
Einstellung
der
Andruckrolle
Einen
Teil
der
Andruckrolle
mit
einem
Spannungsmesser
wahrend
der
Wiedergabe
driicken,
bis
sie
sich
langsam
von
der
Bandantriebswelle
lost
und
sich
zu
drehen
aufhort.
Der
Wert
am
Spannungsmesser
mu
dann
400
+
80g
betragen.
(Siehe
Abb.
13)
Abstand
zwischen
der
Andruckrollen-Halterung
und
dem
Tonkopf-Stopper
Den
Abstand
wahrend
der
Wiedergabe
mit
eines
Abstands-
lehre
messen.
Der
Wert
muf§
zwischen
1
+
0,8
mm
leigen.
(Siehe
Abb.
14)
Capstan
Shaft
Bandantriebswelle
Pinch
Roller
Tension
Gauge
z
Andruckrolle
Spannungsmesser
400+80g
Figure
13
Abb.
13
Pinch
Roller
Andruckrolie
[_]
U
140.8mm
Figure
14
Abb.
14
