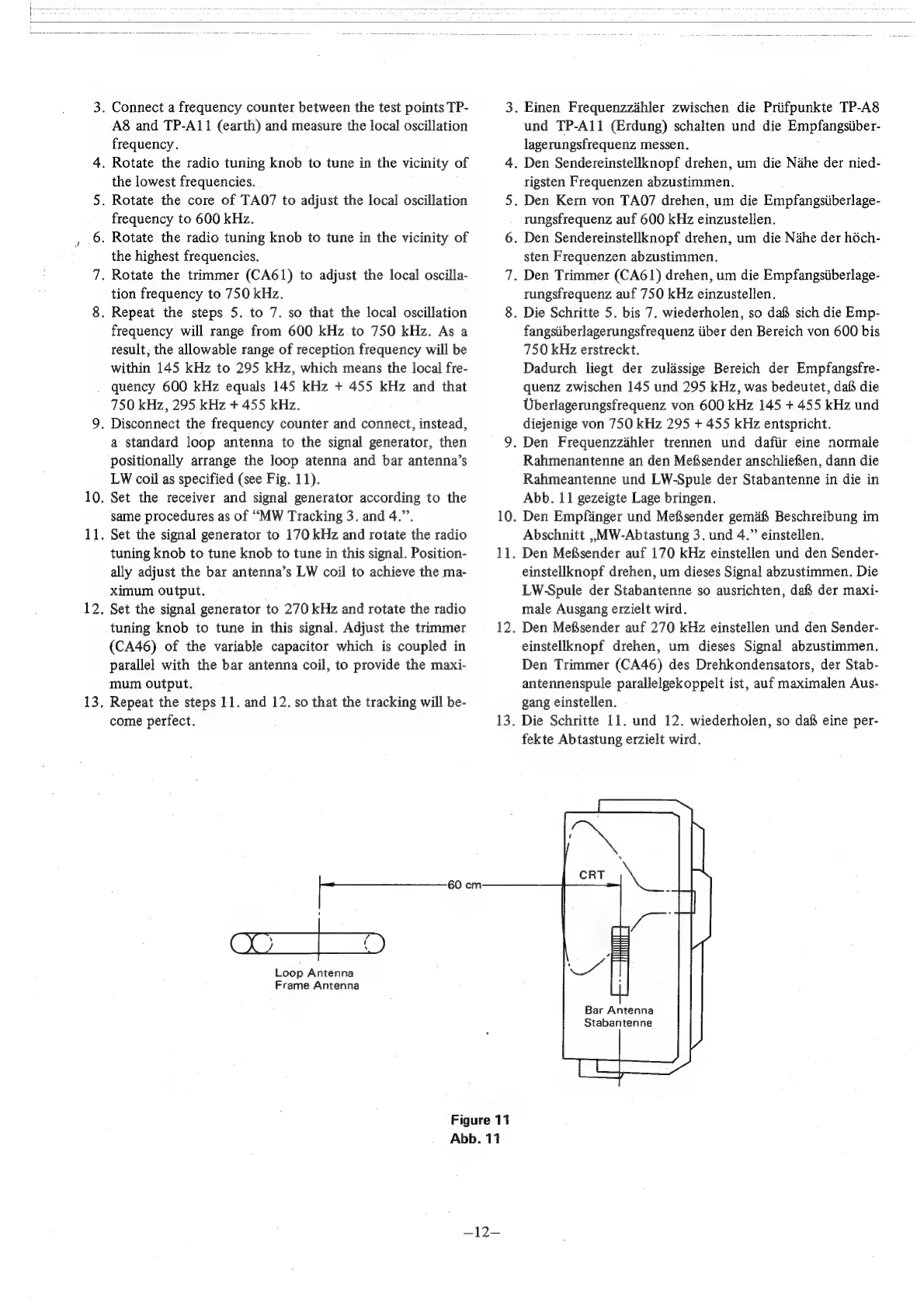

10.
11.
12.
.
Connect
a
frequency
counter
between
the
test
points
TP-
A8
and
TP-Al1
(earth)
and
measure
the
local
oscillation
frequency.
.
Rotate
the
radio
tuning
knob
to
tune
in
the
vicinity
of
the
lowest
frequencies.
.
Rotate
the
core
of
TAO7
to
adjust
the
local
oscillation
frequency
to
600
kHz.
.
Rotate
the
radio
tuning
knob
to
tune
in
the
vicinity
of
the
highest
frequencies.
.
Rotate
the
trimmer
(CA61)
to
adjust
the
local
oscilla-
tion
frequency
to
750
kHz.
.
Repeat
the
steps
5.
to
7.
so
that
the
local
oscillation
frequency
will
range
from
600
kHz
to
750
kHz.
As
a
result,
the
allowable
range
of
reception
frequency
will
be
within
145
kHz
to
295
kHz,
which
means
the
local
fre-
quency
600
kHz
equals
145
kHz
+
455
kHz
and
that
750
kHz,
295
kHz
+
455
kHz.
.
Disconnect
the
frequency
counter
and
connect,
instead,
a
standard
loop
antenna
to
the
signal
generator,
then
positionally
arrange
the
loop
atenna
and
bar
antenna’s
LW
coil
as
specified
(see
Fig.
11).
Set
the
receiver
and
signal
generator
according
to
the
same
procedures
as
of
“MW
Tracking
3.
and
4.”’.
Set
the
signal
generator
to
170
kHz
and
rotate
the
radio
tuning
knob
to
tune
knob
to
tune
in
this
signal.
Position-
ally
adjust
the
bar
antenna’s
LW
coil
to
achieve
the
ma-
ximum
output.
Set the
signal
generator
to
270
kHz
and
rotate
the
radio
tuning
knob
to
tune
in
this
signal.
Adjust
the
trimmer
(CA46)
of
the
variable
capacitor
which
is
coupled
in
parallel
with
the
bar
antenna
coil,
to
provide
the
maxi-
mum
output.
.
Repeat
the
steps
11.
and
12.
so
that
the
tracking
will
be-
come
perfect.
Loop
Antenna
Frame
Antenna
11.
12.
13.
Figure
11
Abb.
11
=[2—
.
Einen
Frequenzzahler
zwischen
die
Priifpunkte
TP-A8
und
TP-Al1
(Erdung)
schalten
und
die
Emptangsuber:
lagerungsfrequenz
messen.
.
Den
Sendereinstellknopf
drehen,
um
die
Nahe
der
nied-
rigsten
Frequenzen
abzustimmen.
.
Den
Kern
von
TAQ7
drehen,
um
die
Empfangsiiberlage-
rungsfrequenz
auf
600
kHz
einzustellen.
.
Den
Sendereinstellknopf
drehen,
um
die
Nahe
der
héch-
sten
Frequenzen
abzustimmen.
.
Den
Trimmer
(CA61)
drehen,
um
die
Empfangsiiberlage-
rungsfrequenz
auf
750
kHz
einzustellen.
.
Die
Schritte
5.
bis
7.
wiederholen,
so
daf
sich
die
Emp-
fangsiiberlagerungsfrequenz
iiber
den
Bereich
von
600
bis
750
kHz
erstreckt.
Dadurch
liegt
der
zulassige
Bereich
der
Empfangsfre-
quenz
zwischen
145
und
295
kHz,
was
bedeutet,
daf
die
Uberlagerungsfrequenz
von
600
kHz
145
+
455
kHz
und
diejenige
von
750
kHz
295
+
455
kHz
entspricht.
.
Den
Frequenzzahler
trennen
und
dafiir
eine
normale
Rahmenantenne
an
den
Mefisender
anschlieRen,
dann
die
Rahmeantenne
und
LW-Spule
der
Stabantenne
in
die
in
Abb.
11
gezeigte
Lage
bringen.
.
Den
Empfanger
und
Me&
sender
gemaéfS§
Beschreibung
im
Abschnitt
,.MW-Abtastung
3.
und
4.”
einstellen.
Den
Mefisender
auf
170
kHz
einstellen
und
den
Sender-
einstellknopf
drehen,
um
dieses
Signal
abzustimmen.
Die
LW-Spule
der
Stabantenne
so
ausrichten,
dafs
der
maxi-
male
Ausgang
erzielt
wird.
Den
Mefisender
auf
270
kHz
einstellen
und
den
Sender-
einstellknopf
drehen,
um
dieses
Signal
abzustimmen.
Den
Trimmer
(CA46)
des
Drehkondensators,
der
Stab-
antennenspule
parallelgekoppelt
ist,
auf
maximalen
Aus-
gang
einstellen.
Die
Schritte
11.
und
12.
wiederholen,
so
daf
eine
per-
fekte
Abtastung
erzielt
wird.
Bar
Antenna
Stabantenne
